MANUAL – REFLEX EZ-TRAC™ | 57
9.4 Set up Multi Shot
Starting parameters of the Multi Shot survey are entered.

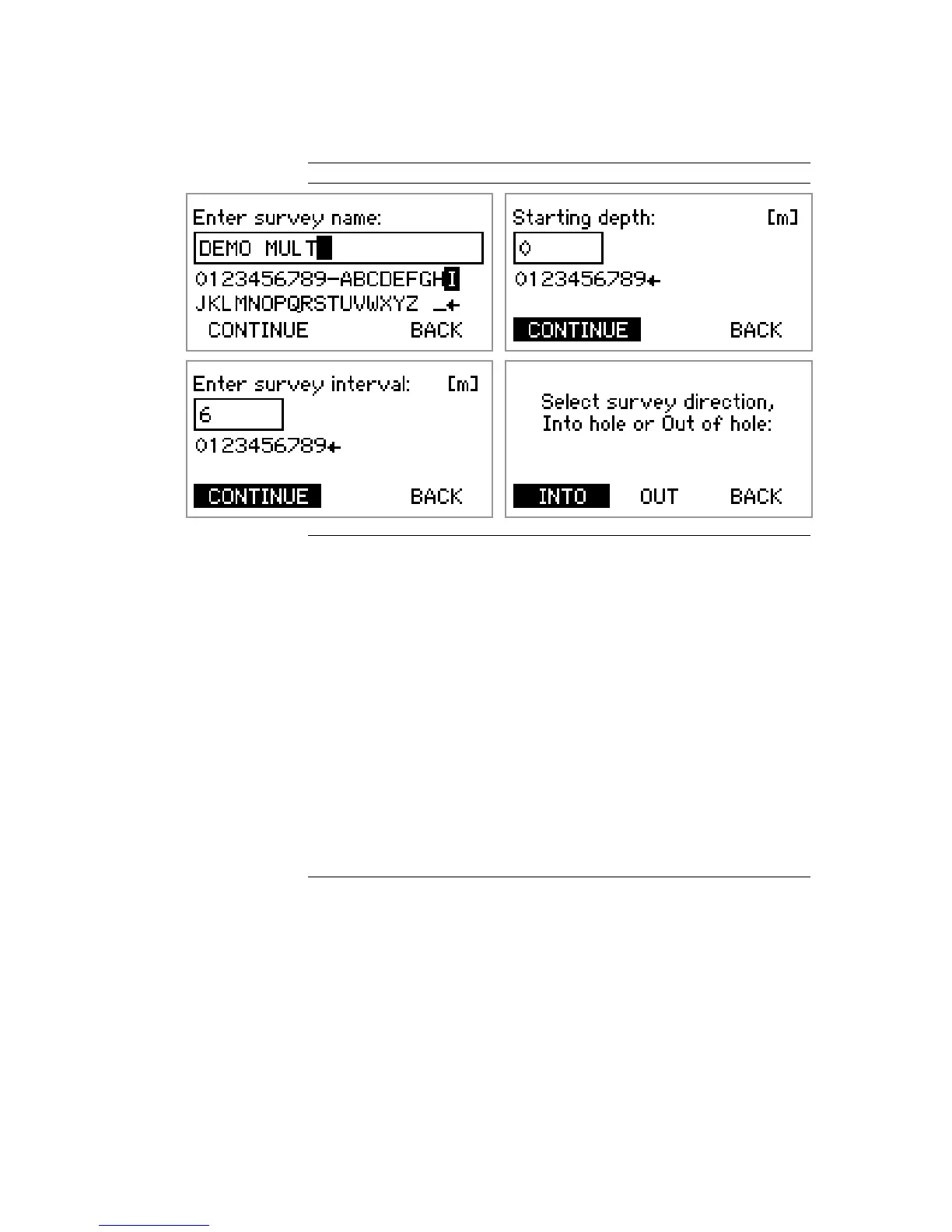

Figure 66 Set up Multi Shot
Set up Multi Shot
1. From the MAIN menu, select Survey.
2. From the SURVEY menu, select Multi Shot.
3. To use the default name, select YES. Continue to step 6 below.
4. To enter a survey name, select NO.
5. Use the navigation keys to enter the Survey Name. Select
CONTINUE when finished.
6. Use the navigation keys to enter the Starting Depth. Select
CONTINUE when finished.
7. Use the navigation keys to enter the Survey Interval. Select
CONTINUE when finished.
8. Use the navigation keys to select Survey Direction. Select INTO
for into hole and OUT for out of hole.
9. Continue to the section Initialise instrument.
9.5 Initialise instrument
The REFLEX EZ-TRAC™ is initialised for the survey, which includes
synchronisation of the clocks in the instrument and the control unit
and that the instrument memory is cleared.
