MANUAL – REFLEX EZ-TRAC™ | 36

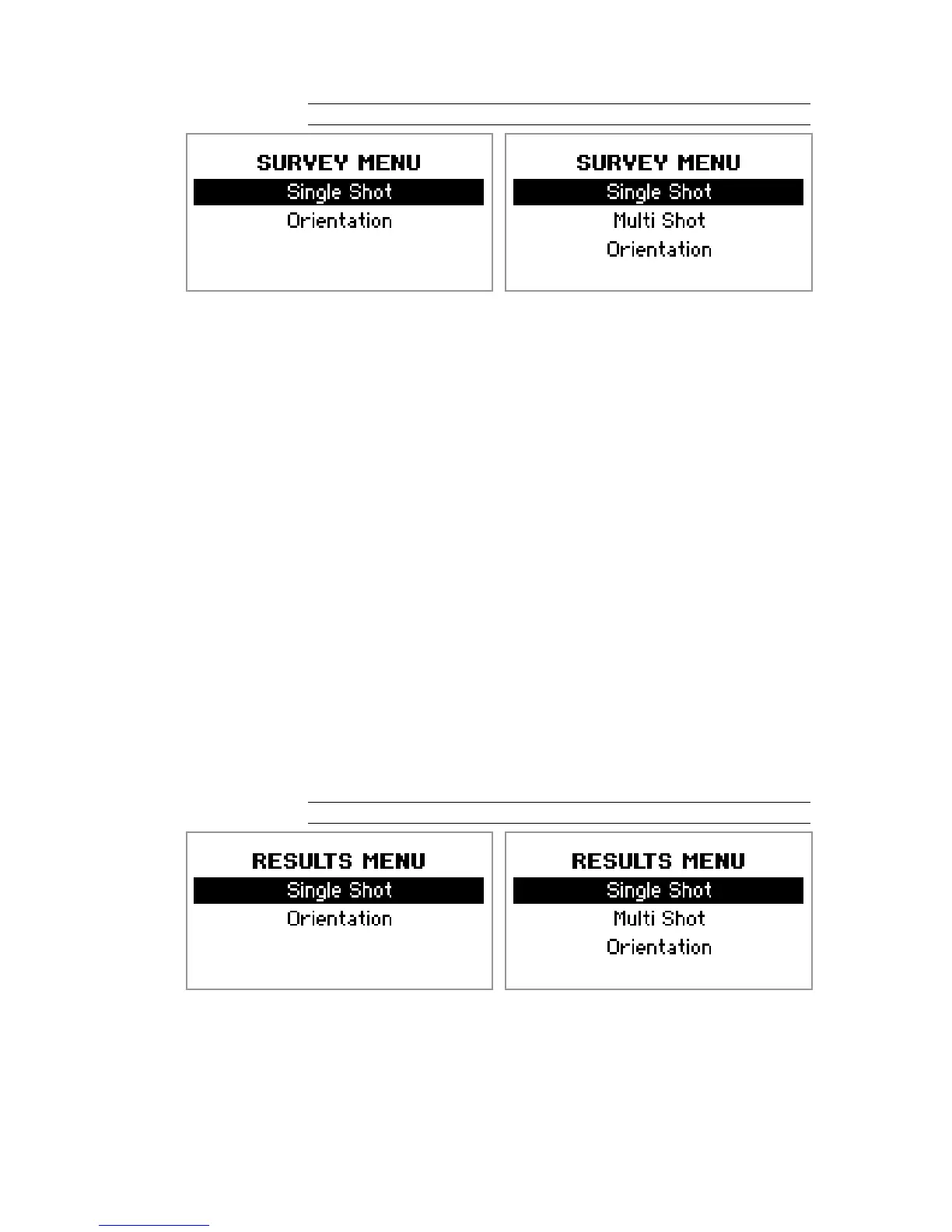

Figure 23 SURVEY menu
Single Shot The Single Shot function is used to survey one single station. It is
also possible to add a Single Shot measurement to an existing
survey.
Multi Shot The Multi Shot function is used to survey multiple stations, while
surveying into and/or out of the borehole.
Orientation The Orientation function is used to determine the orientation of a
downhole object.
UP/DOWN Use the UP/DOWN keys to navigate between the menu options.
OK Use the OK key to select the active option.
LEFT Use the LEFT key to return to the MAIN menu.
8.2.3 Results Menu
All surveys are stored automatically in the REFLEX™ EZ-COM unit. The
RESULTS menu gives access to all stored Single Shot, Multi Shot
and Orientation surveys.
All types of Single Shot surveys, including the ones where Single
Shot measurements have been added to an existing survey, are
accessed by selecting the Single Shot option.
Note, Multi Shot is only displayed if the Multi Shot function has been
enabled. Please refer to the section Multi Shot enabler above.
Figure 24 RESULTS menu
UP/DOWN Use the UP/DOWN keys to navigate between the menu options.
OK Use the OK key to select the active option.
LEFT Use the LEFT key to return to the MAIN menu.
