MANUAL – REFLEX EZ-TRAC™ | 92

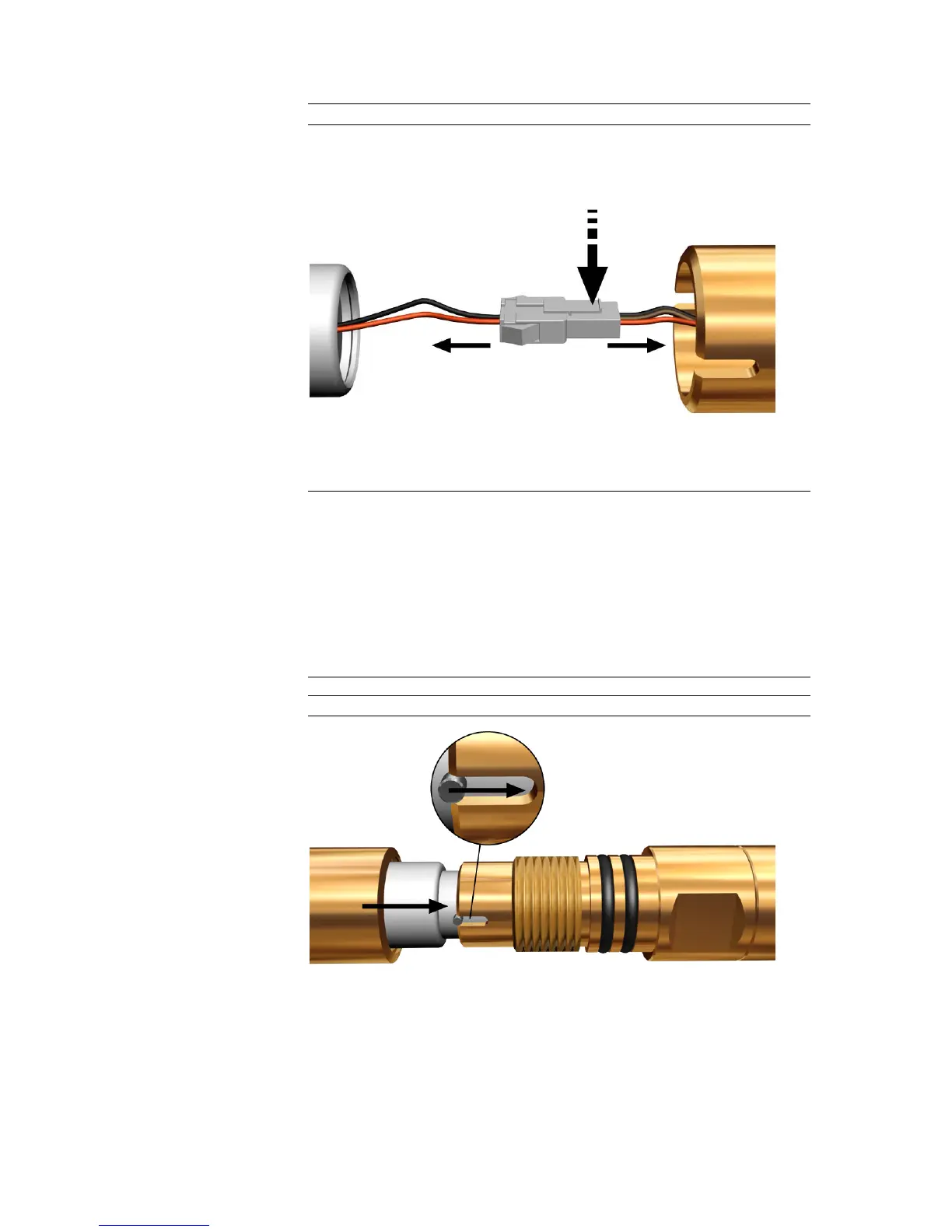

Figure 97
Release the latch
Connect new battery
1.
Connect the new battery.
2.
Press the connector down inside the tool.
3.
Locate the battery casing in the slots.
4.
Drop the ‘O’ ring down inside the battery housing.
5.
Refit the housing over the new battery.
6.
Screw it fully home and tighten with open end wrenches.
Figure 98
Locate the battery casing in the slots
91
93
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
7
Contact REFLEX
7
Manual Conventions
7
2 General
8
Reflex Ez-Trac
8
TM at a Glance
8
Survey Types
8
Magnetic and Gravimetric
8
Survey Accuracy
8
Equipment
9
Post Processing of Data
9
Warranty
9
Shipping Instructions for Instrument Return
9
3 About Surveying
10
All Boreholes Deviate
10
Calculation of Underground Positions
10
Direction of Downhole Object
11
Measurement of Direction
11
Single Shot Survey
11
Multi Shot Survey
11
Orientation Survey
11
4 Working Principles
12
Introduction
12
Magnetism
12
Magnetometers
12
Gravity
13
Accelerometers
13
Temperature
13
5 About Survey Accuracy
14
Introduction
14
Magnetic Interference
14
Man-Made Interference from Within the Hole
14
Man-Made Interference from Outside the Hole
15
Natural Magnetism
15
Identify Interference
15
Earth's Magnetic Field
16
Total Intensity
16
Inclination
16
Annual Rate of Change
17
Background Magnetic Field
17
Magnetic Threshold
18
Quality Control
18
Filter out Bad Data
18
Survey Station Depth
19
Centralization
19
Temperature
19
Comparisons and Averaging
19
6 About Survey Data
20
Introduction
20
Dip and Azimuth
20
Magnetic Components
20
Total Magnetic Field Strength
20
Magnetic Dip
20
Magnetic Integrity
21
Magnetic Declination
21
Rotation
21
Temperature
22
7 About the Reflex Ez-Trac™ Equipment
23
Instrument
23
Control Unit
23
Utilities
24
Running Gear
24
Orientation Equipment
26
Part Numbers
26
Instrument
26
Control Unit
27
Utilities
27
Running Gear Equipment
27
Orientation Equipment
28
Equipment Overview
28
8 About the Reflex Ez-Com Control Unit
30
Control Unit
30
Keypad
30
Enter Characters
31
IR Communication
32
USB Connector
32
Software Version
33
Main Menu
33
Multi Shot Enabler
34
Serial Number
34
Enable Multi Shot
34
Disable Multi Shot
35
Survey Menu
35
Results Menu
36
Stored Surveys
37
Survey Results
37
Settings Menu
38
Units
39
Magnetic Reference
41
Date and Time
44
Messages and Warnings
45
General
45
Single Shot
50
Multi Shot
51
Orientation
52
9 Single Shot and Multi Shot Surveys
55
Preparation
55
Register Magnetic Reference
55
Set up Single Shot
55
New Single Shot
55
Add to Existing Survey
56
Set up Multi Shot
57
Initialise Instrument
57
Assemble Survey System
58
Execute Survey
58
Single Shot Execution
58
Multi Shot Execution
59
Download Data
60
Survey Results
60
10 Orientation Survey
62
Introduction
62
Measuring Modes
62
Gravity Tool Face
62
Magnetic Tool Face
62
Set Magnetic Reference
62
Orientation Equipment
62
Mule Shoe Sleeve
63
Zeroing
64
Register New Zeroing
64
Position for Zeroing - Gravity Tool Face
64
Position for Zeroing - Magnetic Tool Face
65
Register Zero Position
66
Use Stored Zeroing
66
Downhole Survey
67
Initialise Instrument
68
Assemble Survey System - Gravity Tool Face
68
Assemble Survey System - Magnetic Tool Face
68
Load Tell Tale
69
Run into Hole
70
Execute Downhole Survey
70
Verify Lead Tell Tale
70
Download Data
71
Survey Results
71
Enter Desired Toolface
72
End Survey and Save Results
72
Stored Zeroing
73
Cancel
73
11 Surveying Methods
74
Running Gear
74
Important Assembling Tips
74
Maintenance
74
Extension Rods
74
Landing Collars
75
Surveying Methods
76
Through Drill String - Wireline
76
Through Drill String - Tripping out
77
Gravity
77
Wireline
78
Pump into Hole
78
Tripping out
78
In Front of Drill String
79
Pumping
80
Open Hole Surveying
80
Downwards Direction
81
Upwards Direction
81
Reverse Circulation
82
Azimuth and Inclination
82
Inclination
83
12 Transfer Survey Files
85
Survey Files
85
Single Shot
85
Multi Shot
85
Orientation
85
Transfer Files to PC
86
Free Memory Space
88
REFLEX™ Sprocess
88
Limitations
88
13 Maintenance
89
Introduction
89
Regular Maintenance
89
Before Every Survey
89
After Every Survey
90
Battery Replacement
90
Service
90
Calibration
90
Service Return
90
14 Battery Replacement
91
Reflex Ez-Trac
91
Reflex™ Ez-Com
93
15 Terminology
94
REFLEX EZ-COM License Key
96
License Key
96
Multi Shot Enabling Instructions
96
