173
Equipment Operation
ELECTRONICS- 4KW CLOSED RADOME
& OPEN ARRAY RADAR
Both the Closed Radome and Open Array optional radar
units are compatible with both “C” and “E” GPS/Plotters.
Both deliver peak performance on Regal boats. All
hardtop boats feature the Open Array unit.The basic
operations are covered in this manual by a series of cards.
Refer to reference manual for more detailed instructions.
Both radar systems are protected by a breaker labeled radar
plotter at the helm breaker panel. To use either radar unit
the electronics breaker at the main DC distribution panel
must be energized. Turn on either the “C” or “E” plotter
at the red power button at the plotter display.

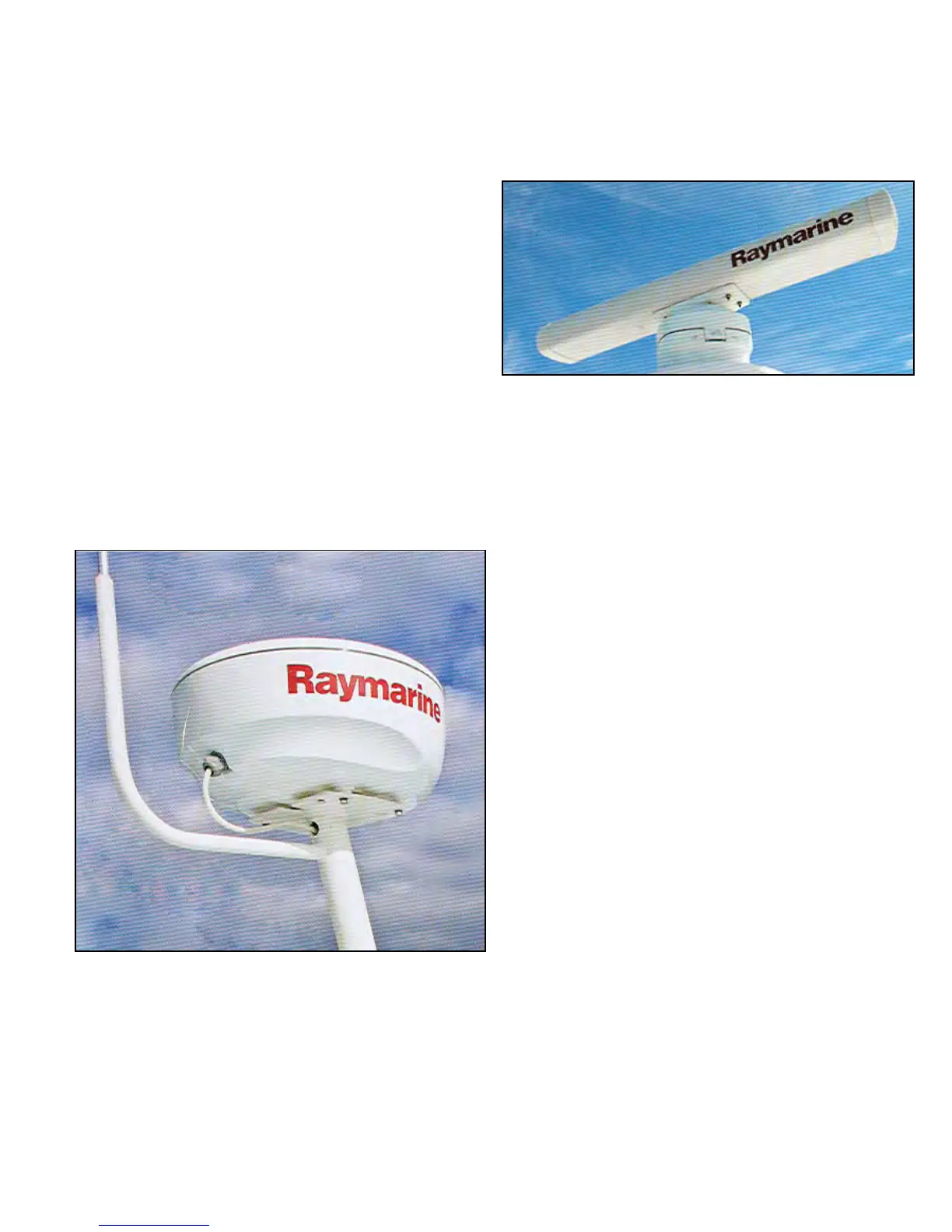

Typical Open Array Radar
Typical Closed Array Radar
