Chapter 8

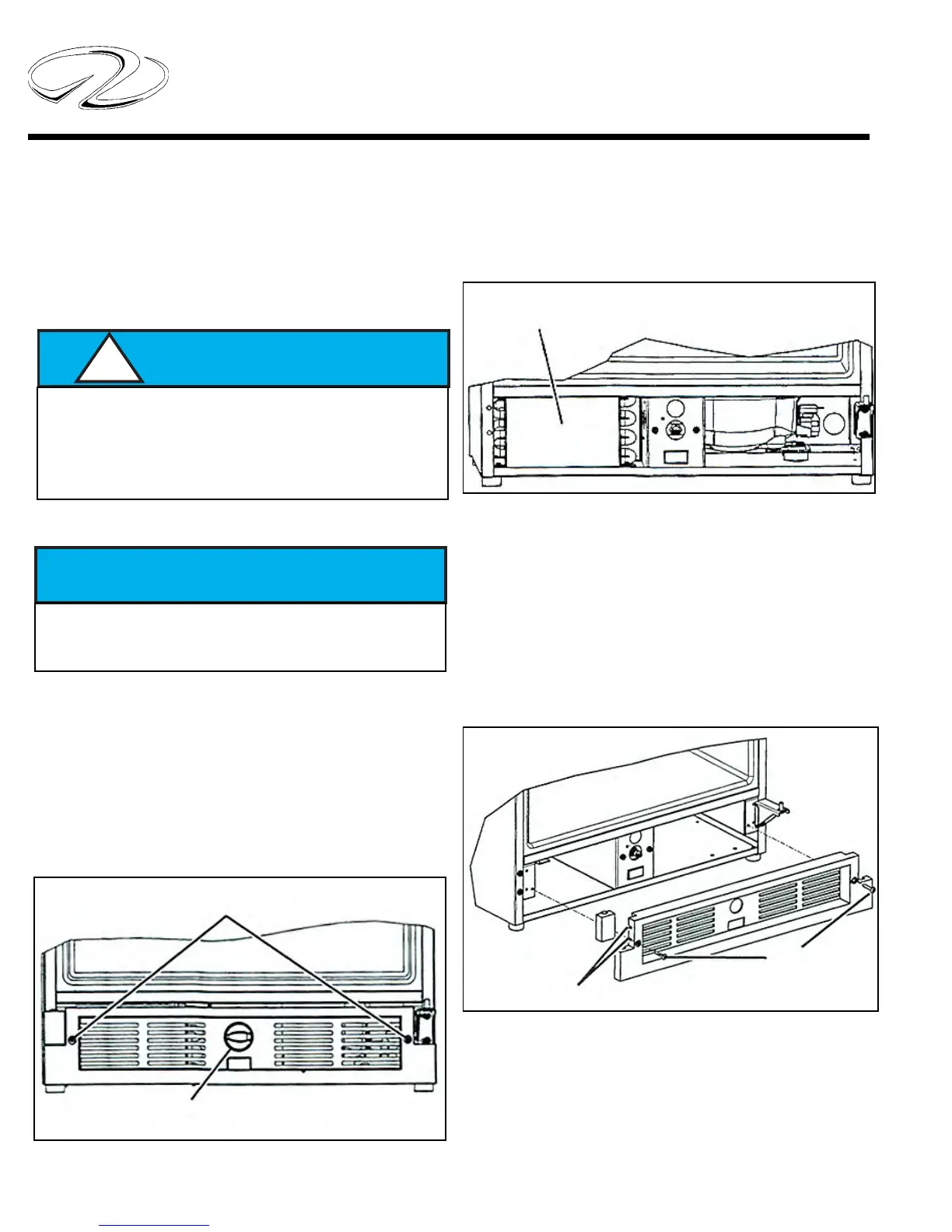

TO CLEAN CONDENSOR COILS
As part of general maintenance ensure the front grille is
free of dust and dirt. The grille provides cooling for the
unit and condensor coils.
AVOID BODILY INJURY!
DO NOT TOUCH THE CONDENSOR FINS!
THE CONDENSOR FINS ARE SHARP.
THEY CAN BE EASILY DAMAGED.
!
DO NOT USE ANY TYPE OF CLEANER
ON THE CONDENSOR UNIT.
1. Before performing any maintenance work on the
refrigerator/icemaker combo turn off the icemaker
breaker at the ship’s AC panel.
2. Remove the control knob by pulling it straight out
away from the grille.
Screws
Control Knob
3. Remove the two screws from the grille.
4. Remove grille and grille cap from the unit.
5. Clean the condensor coils using a soft brush with a
“combing” action or vacuum cleaner with a long wand.
Do not touch the condensor coils.
6. Make sure the grille cap is behind grille in the slots
provided in the grille before attaching grille to unit, and
secure but do not overtighten both grille screws.
Condensor Coils
Screws
Grille Cap
& Slots
