Chapter 7

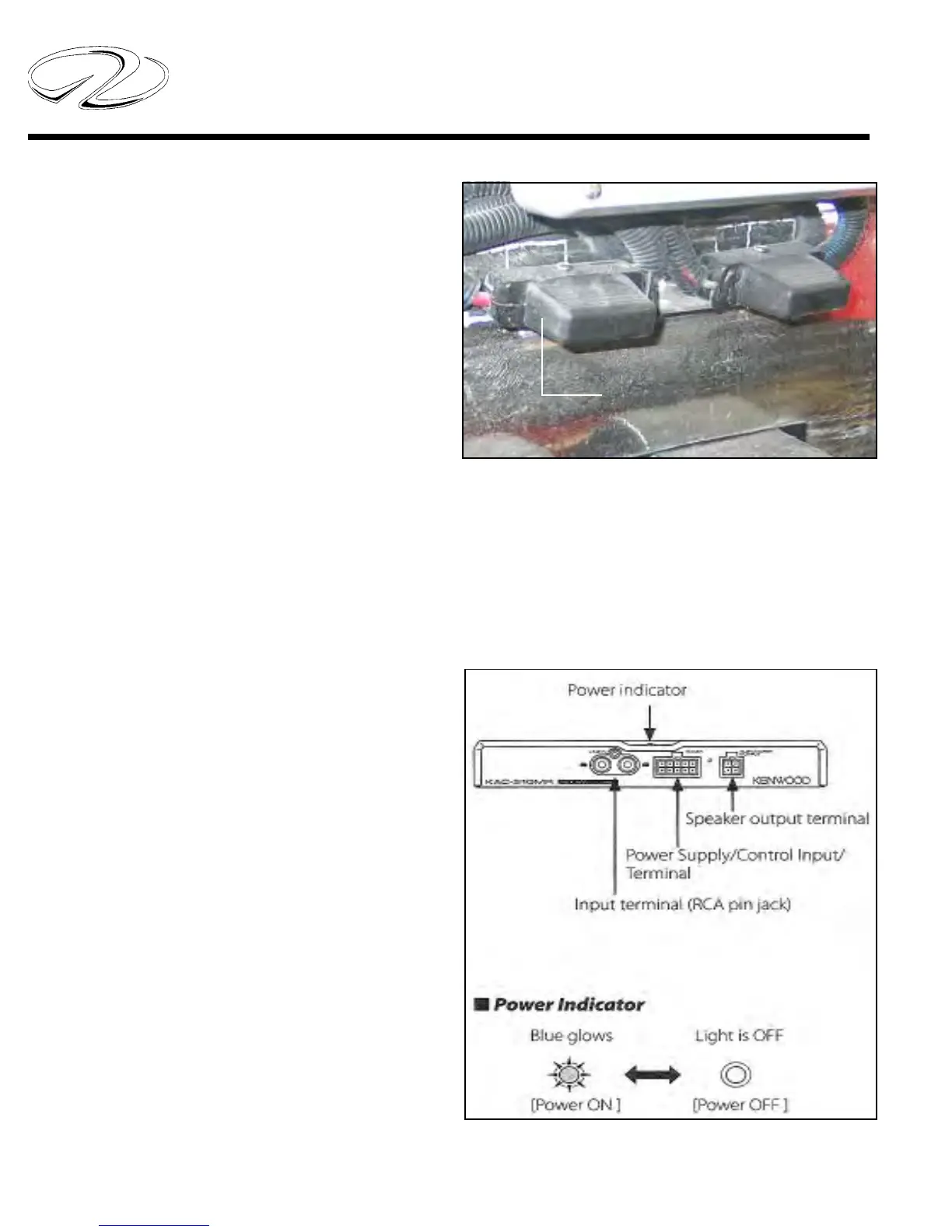

SUB WOOFER AMPLIFIER CONNECTIONS
AMPLIFIER/WOOFER
As part of the CD changer option package a 200 watt
amplifier is included. It is located in the salon cabinet
near the CD changer unit.
In theory there is a P control blue wire that runs from the
CD receiver through the amplifier to the speakers to boost
the output.
As the CD receiver volume is extended the amplifier out-
put automatically rises to increase the speaker amplifica-
tion.
To protect the amplifier unit, there are two 5 amp fuses
embodied in the amplifier. To protect the stereo wiring
there is a 30 amp fuse at the forward engine bulkhead.
At the amplifier there is a power indicator that lights when
the power is in the “ON” position. If the power indica-
tor does not light there could be a short-circuited speaker
wire, speaker wire grounded, loss of continuity in the
ground circuit wiring or an overheated amplifier.
30 Amp Fuse
Protects Stereo
Wiring
The 10” subwoofer in the salon features a dual voice coil
to handle maximum power output. To adjust the woofer
sound as part of the overall speaker adjustment use the
AUDIO CONTROL and AUDIO SETUP modes as de-
scribed in the stereo CD receiver earlier in this chapter.
The subwoofer has no individual adjustment.
