10A-107
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

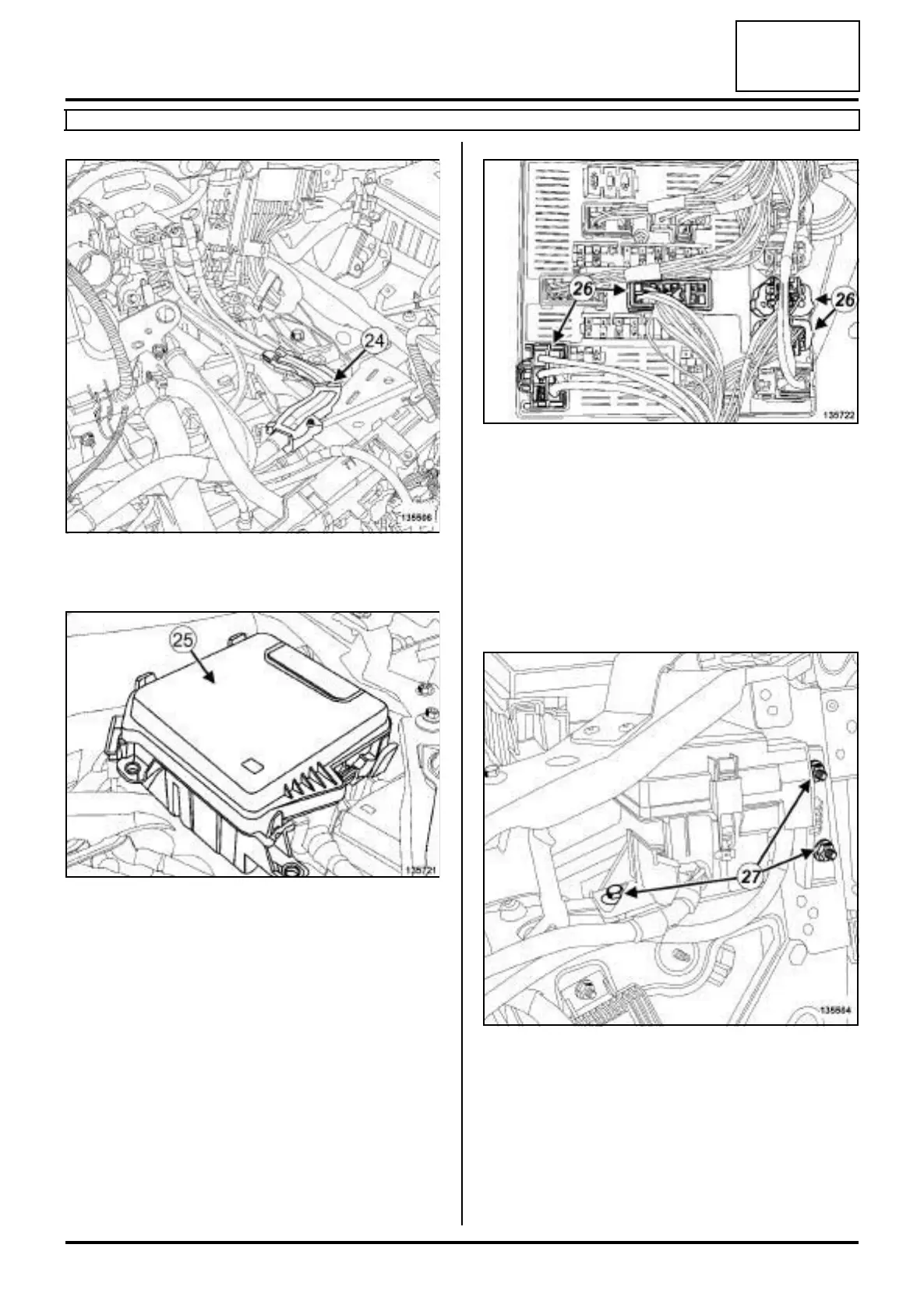

a Unclip the battery wiring channel (24) from the left-
hand suspended engine mounting.
a Remove the cover (25) from the Protection and Swit-
ching Unit.
a Remove the connectors (26) from the Protection and
Switching Unit.
a Remove:
- the Protection and Switching Unit,
- the engine wiring.
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-1) .
a Remove:
- the bolts (27) from the fuse box,
- the fuse box.
a Disconnect:
- the windscreen washer pump connector,
- the windscreen washer pump wiring.
