10A-108
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

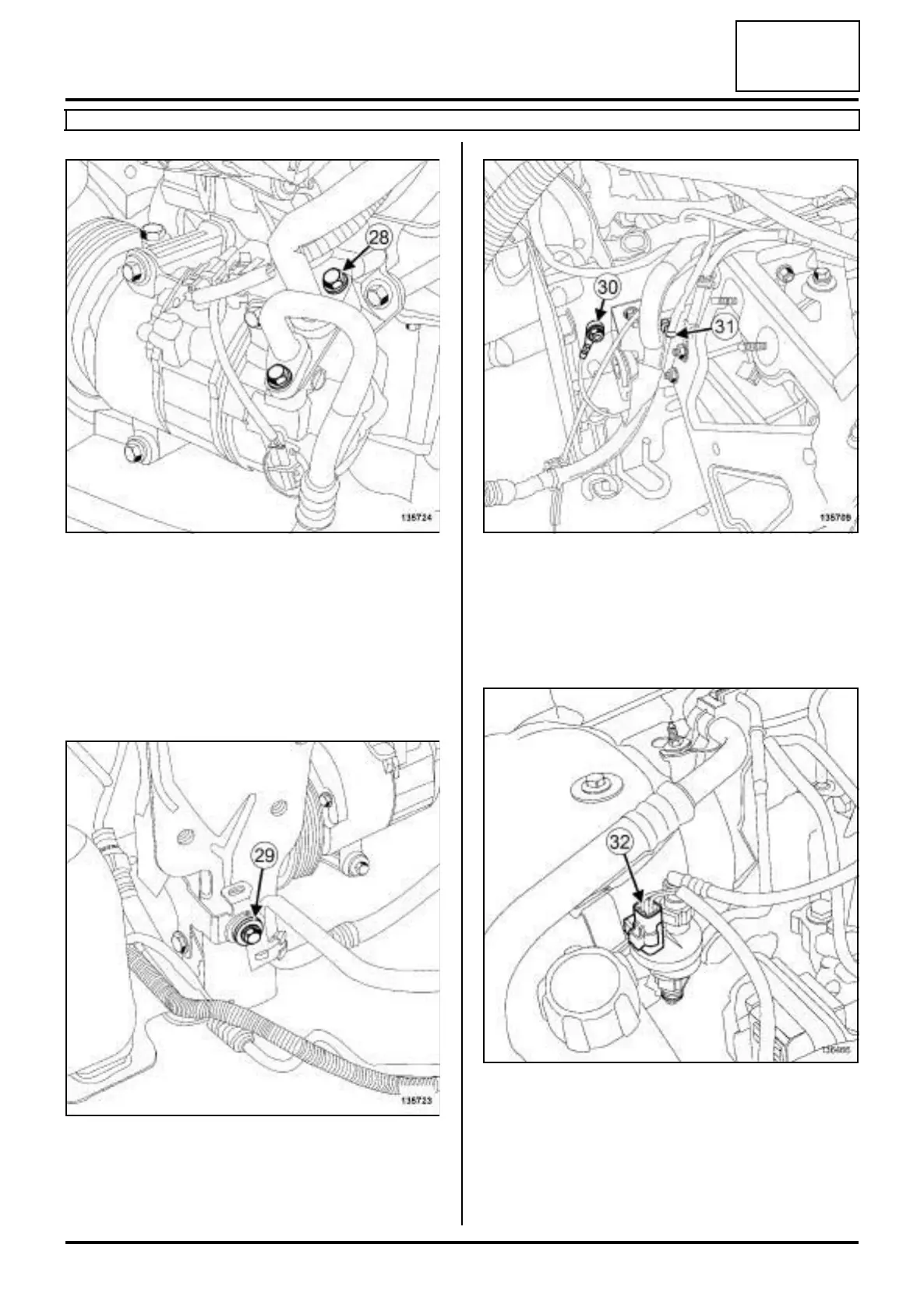

a Remove the bolt (28) from the « compressor - ex-
pansion valve » connecting pipe bracket.
a Disconnect the « compressor - expansion valve »
connecting pipe from the compressor.
a Remove the seal from the « compressor - expansion
valve » connecting pipe.
a Insert the blanking plugs.
a Remove the bolt of the « compressor - condenser »
connecting pipe support at (29) .
a Move aside the « compressor - condenser » con-
necting pipe.
a Remove:
- the earth nut on the body,
- the earth terminal on the body (30) .
a Disconnect the earth wiring on the body at (31) .
a Remove the fuel vapour absorber connector (32) .
a Disconnect the fuel vapour absorber wiring:
- on the expansion bottle,
- on the body.
a Remove the fuel vapour absorber wiring.
135724
135723
135709
136466
