10A-109
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

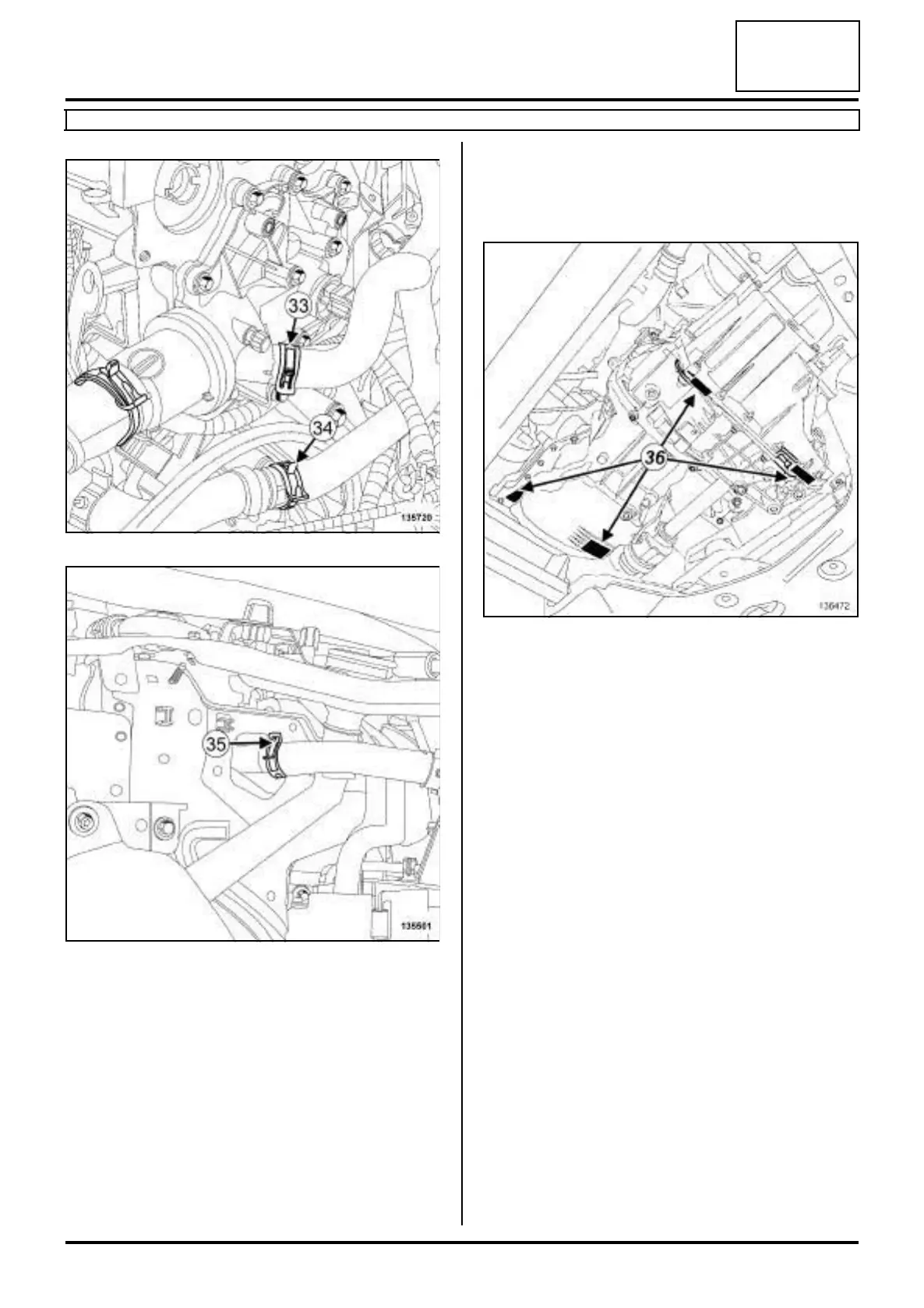

a Remove using the (Mot. 1448) :
-the clip (33) of the hose between the heater matrix
and the coolant pump inlet pipe,
-the clip (34) of the hose between the heater matrix
and the coolant outlet unit,
-the clip (35) of the expansion bottle outlet hose.
a Disconnect:
-the hose between the heater matrix and the coolant
pump inlet pipe,
-the hose between the heater matrix and the coolant
outlet unit,
- the expansion bottle outlet hose.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Mark the positions of the suspended engine moun-
tings on the body.
a Support the « engine - gearbox » assembly on the
engine marks (36) with the (Mot. 1390).
a Remove the right-hand suspended engine mounting
(see 19D, Engine mounting, Right-hand suspen-
ded engine mounting: Removal - Refitting, page
19D-18) .
