10A-115
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

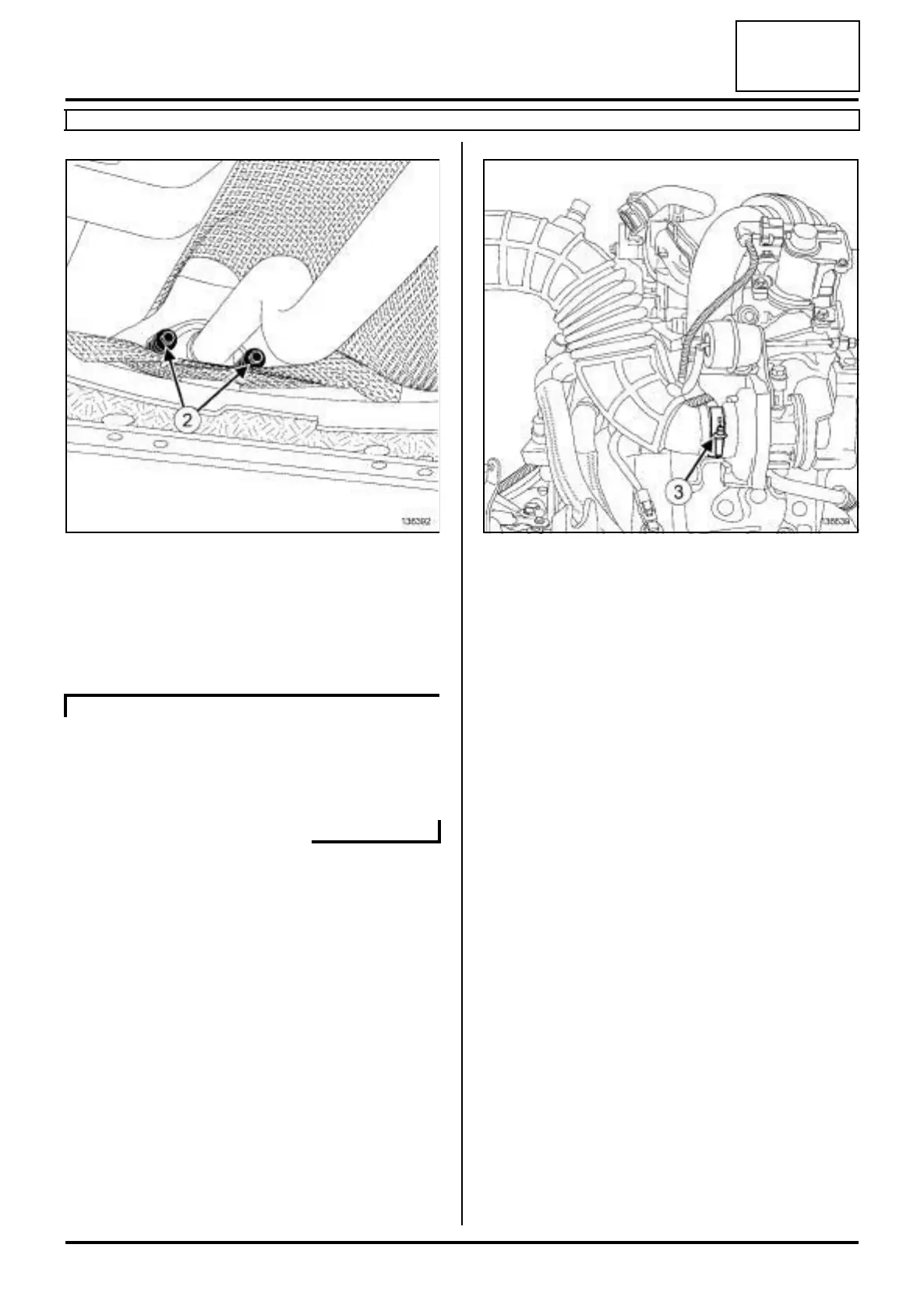

a Remove the bolts (2) from the exhaust bracket.
a Move the exhaust bracket away from the catalytic
converter.
a Disconnect the oil vapour rebreathing pipe union
from the air filter unit air outlet pipe.
a Disconnect the oil vapour rebreathing pipe from the
rocker cover.
a Remove the oil vapour rebreathing pipe.
a Undo the air filter unit air outlet pipe clip (3) from the
turbocharger.
a Disconnect the air filter unit air outlet pipe from the
turbocharger.
a Remove:
- the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-4) ,
- the air outlet pipe to the air filter unit,
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) ,
- the intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) ,
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
- the front bumper mountings (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
- the top air deflector of the cooling radiator,
- the side air deflectors of the cooling radiator,
- the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
lower structure).
136392
K9K, and 832
136639
