10A-117
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A
a Disconnect from the cooling radiator:
-the expansion bottle top cooling hose,
-the cooling radiator top cooling hose.
a Remove the bonnet catch (see Bonnet latch: Re-
moval - Refitting) (52A, Non-side opening element
mechanisms).

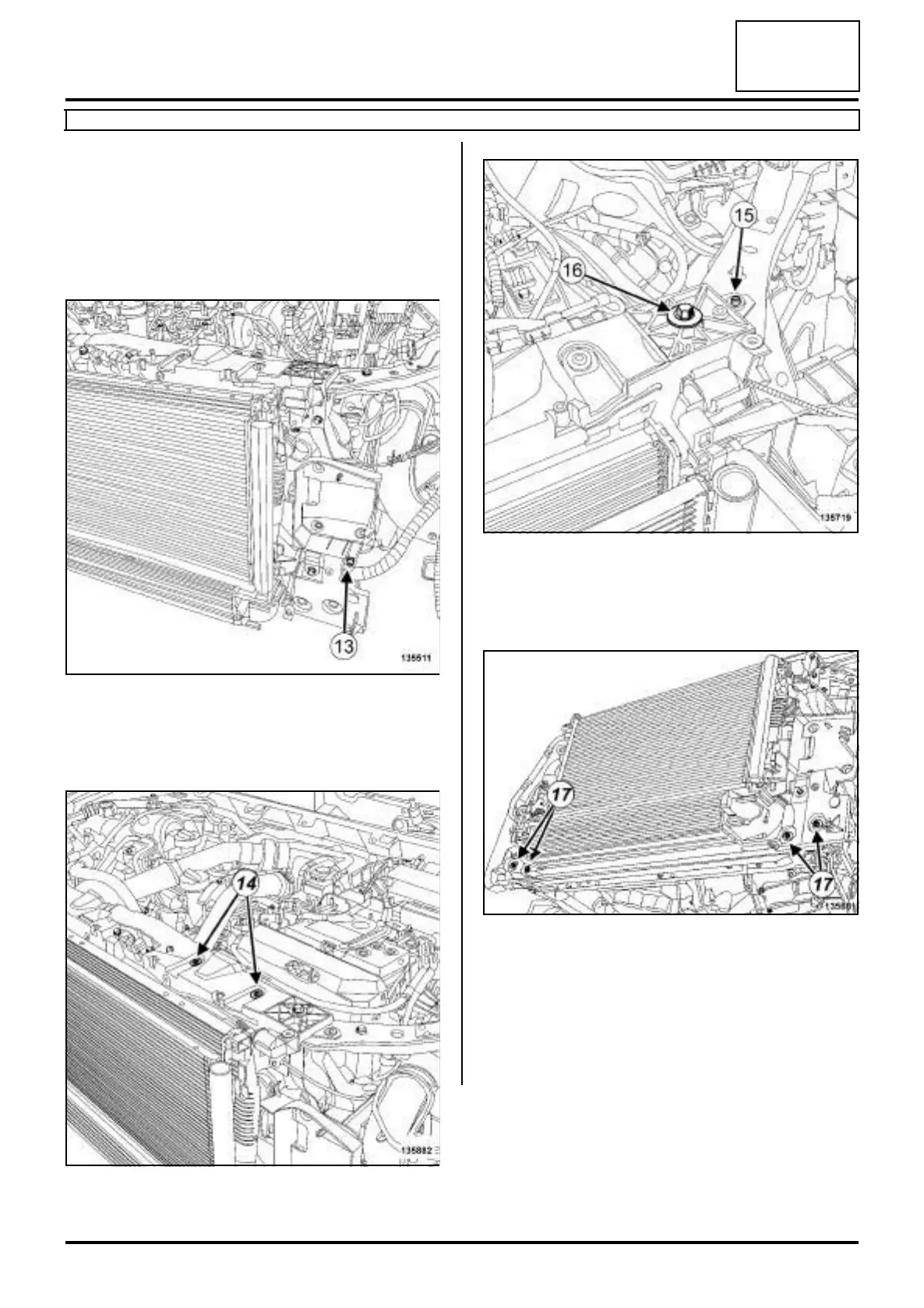

a Unclip from the front end panel:
-the wiring of the front impact cross member at (13) ,
-the expansion bottle top cooling hose.
a Remove the bolts (14) of the fan assembly wiring
channel from the front end panel.
a Remove from the front end panel:
- the clips (15) ,
- the upper bolts (16) .
a Remove the lower bolts (17) from the front end pa-
nel.
135511
135882
135719
135881
