10A-119
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

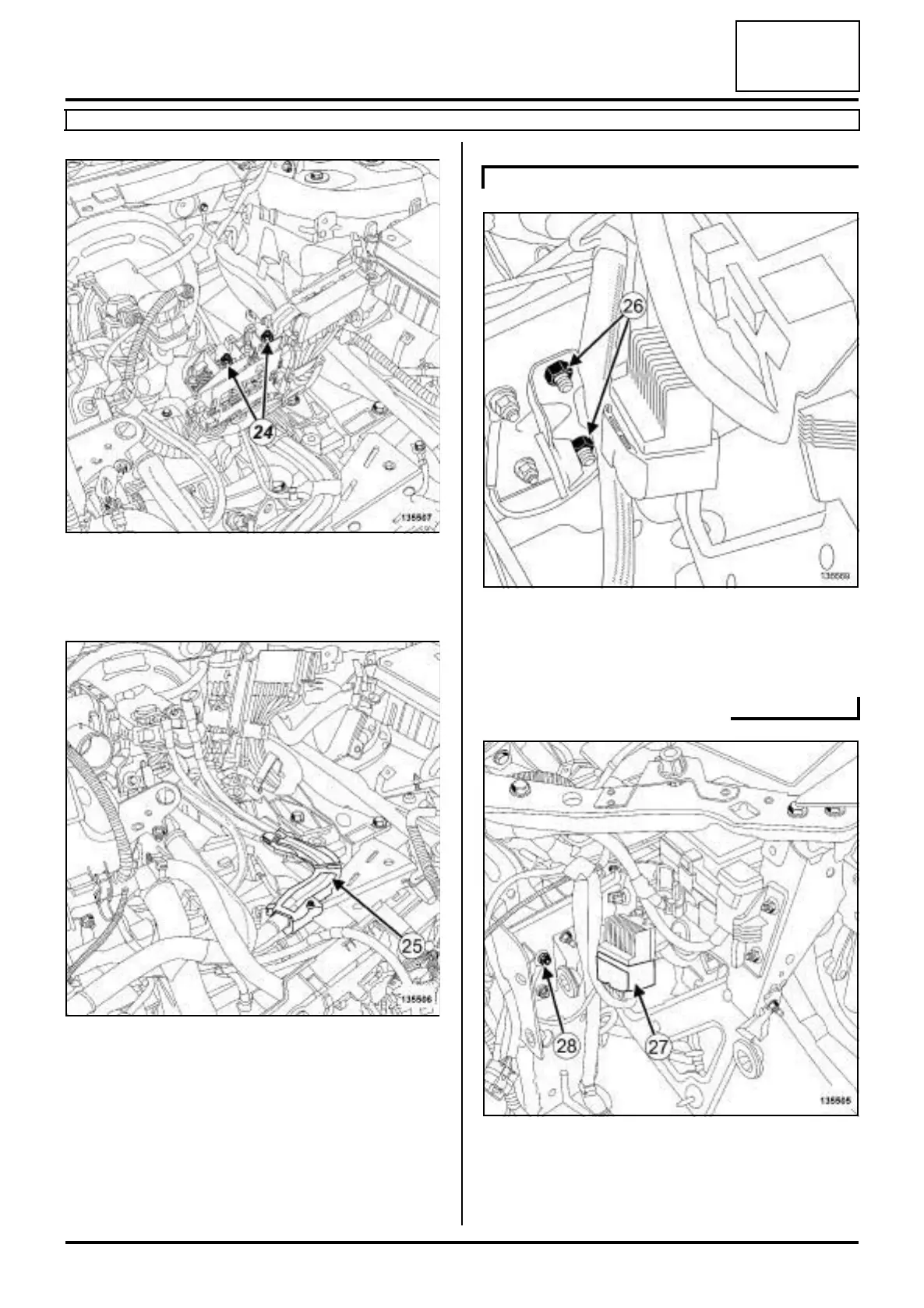

a Remove the power cable nuts (24) from the battery
disconnection unit.
a Move aside the power cables.
a Unclip the power wiring channel (25) from the left-
hand suspended engine mounting.
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-1) .
a Remove the air resonator support nuts (26) .
a Move aside the air resonator support.
a Disconnect the pre-postheating unit connector (27) .
a Remove the earth cable nut (28) from the body.
a Move the earth cable away from the body.
135507
135506
K9K, and 830
136669
135505
