10A-120
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

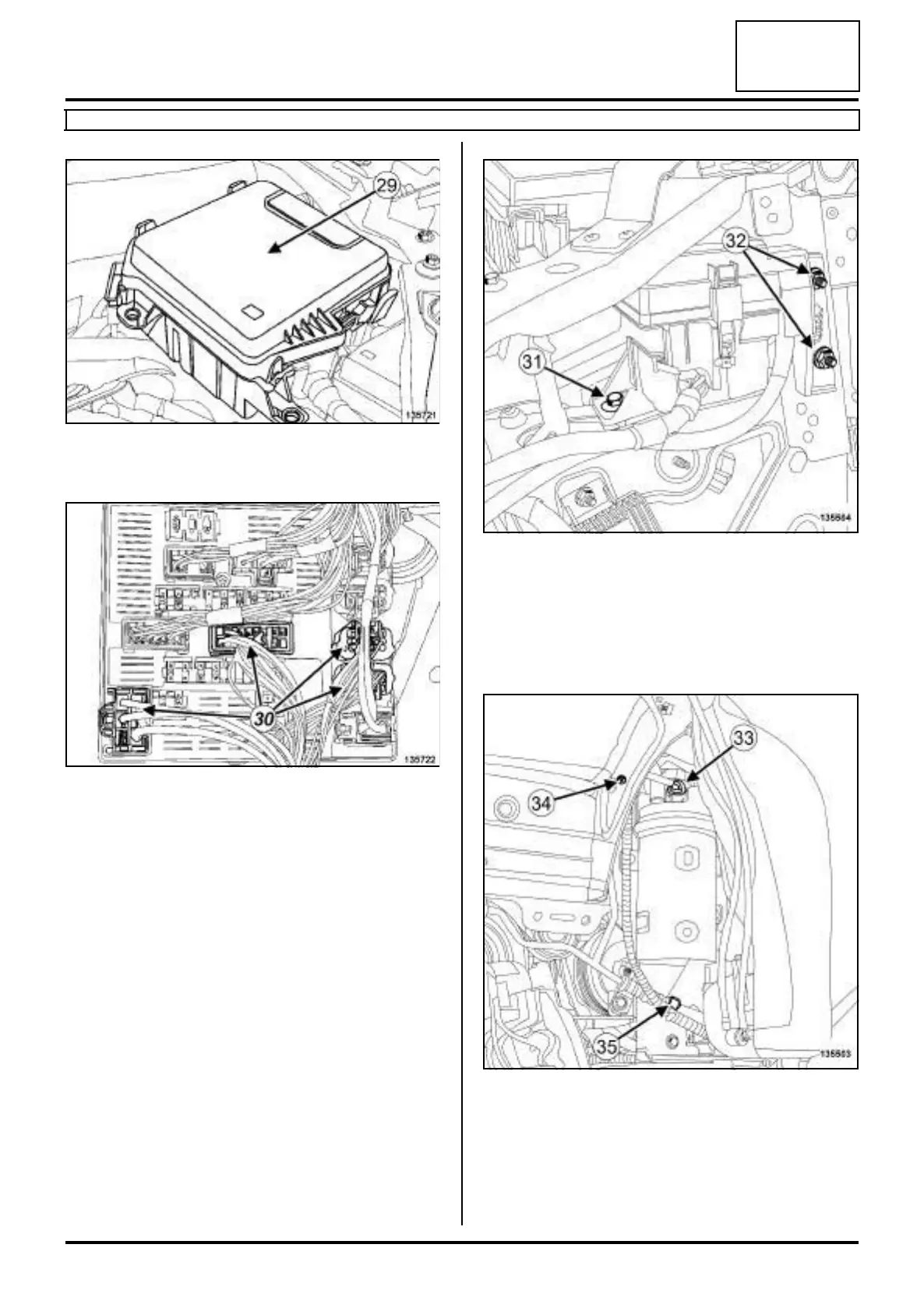

a Remove the Protection and Switching Unit cover
(29) .
a Disconnect the connectors (30) from the Protection
and Switching Unit.
a Remove:
- the bolt (31) from the engine fuse box,
- the nuts (32) from the engine fuse box.
a Move aside the engine fuse box.
a Disconnect the diesel heater connector (33) .
a Unclip:
- the diesel heater wiring from the body at (34) ,
- the diesel heater wiring from the "condenser - eva-
porator" connecting pipe at (35) ,
