10A-122
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

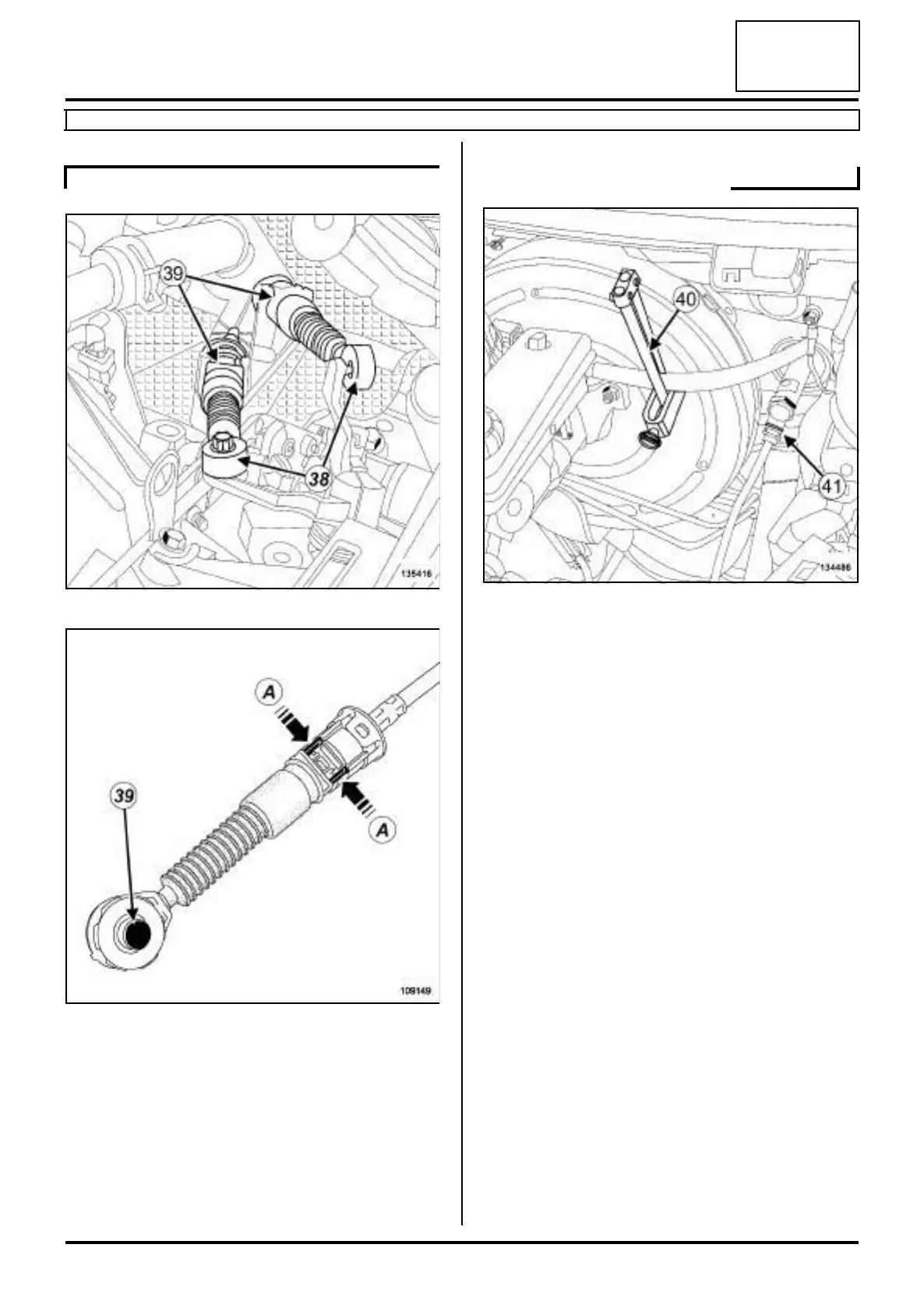

a Unclip the manual gear selector cables by:
-unclipping the anchoring ball joints (38) of the ma-
nual gear selector,
-pinching the manual gear selector at (A) ,
-lifting the manual gear selector (39) from the ma-
nual gear selector mounting.
a Move aside the manual gear selector cables.
a Fit the tool (Ms. 583) (40) onto the clutch master cy-
linder supply pipe.
a Disconnect the clutch pipe from the clutch master
cylinder by pulling on the clip (41) .
a Fit an appropriate blanking plug:
- on the opening of the clutch pipe,
- on the opening of the clutch master cylinder.
K9K, and 830
135416
109149
134486
