10A-123
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

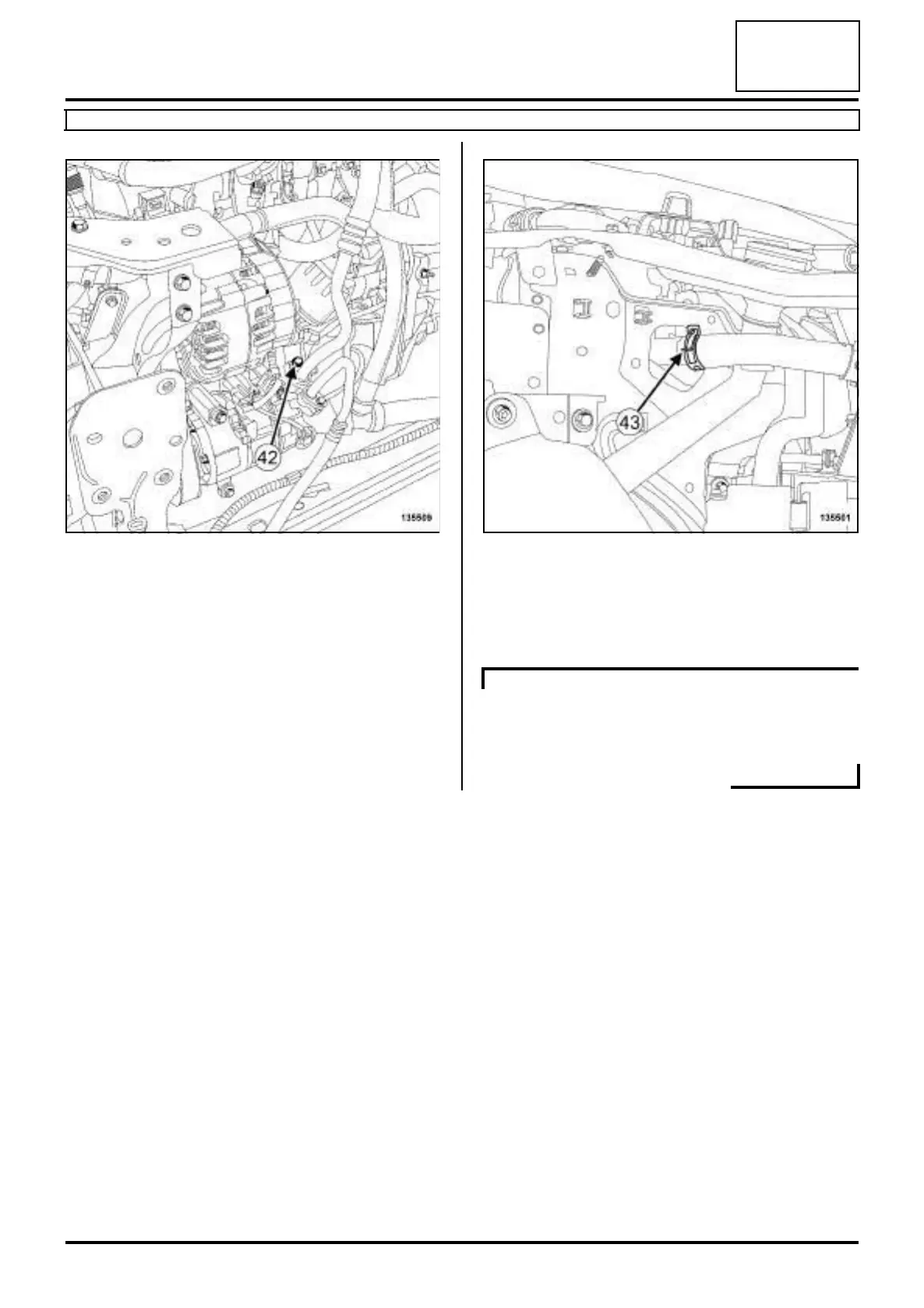

a Remove the bolt (42) of the "dehydrator reservoir -
compressor" connecting pipe from the compressor.
a Uncouple the "dehydrator reservoir - compressor"
connecting pipe from the compressor.
a Remove the seal of the "dehydrator reservoir - com-
pressor" connecting pipe on the compressor side.
a Fit an appropriate blanking plug:
-on the compressor opening,
-on the opening of the "dehydrator reservoir - com-
pressor" connecting pipe.
a Separate the expansion bottle bottom cooling hose
clip (43) on the expansion bottle.
a Disconnect the expansion bottle bottom cooling
hose from the expansion bottle.
a Unclip the expansion bottle bottom cooling hose
from the high pressure pump protector.
