10A-124
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

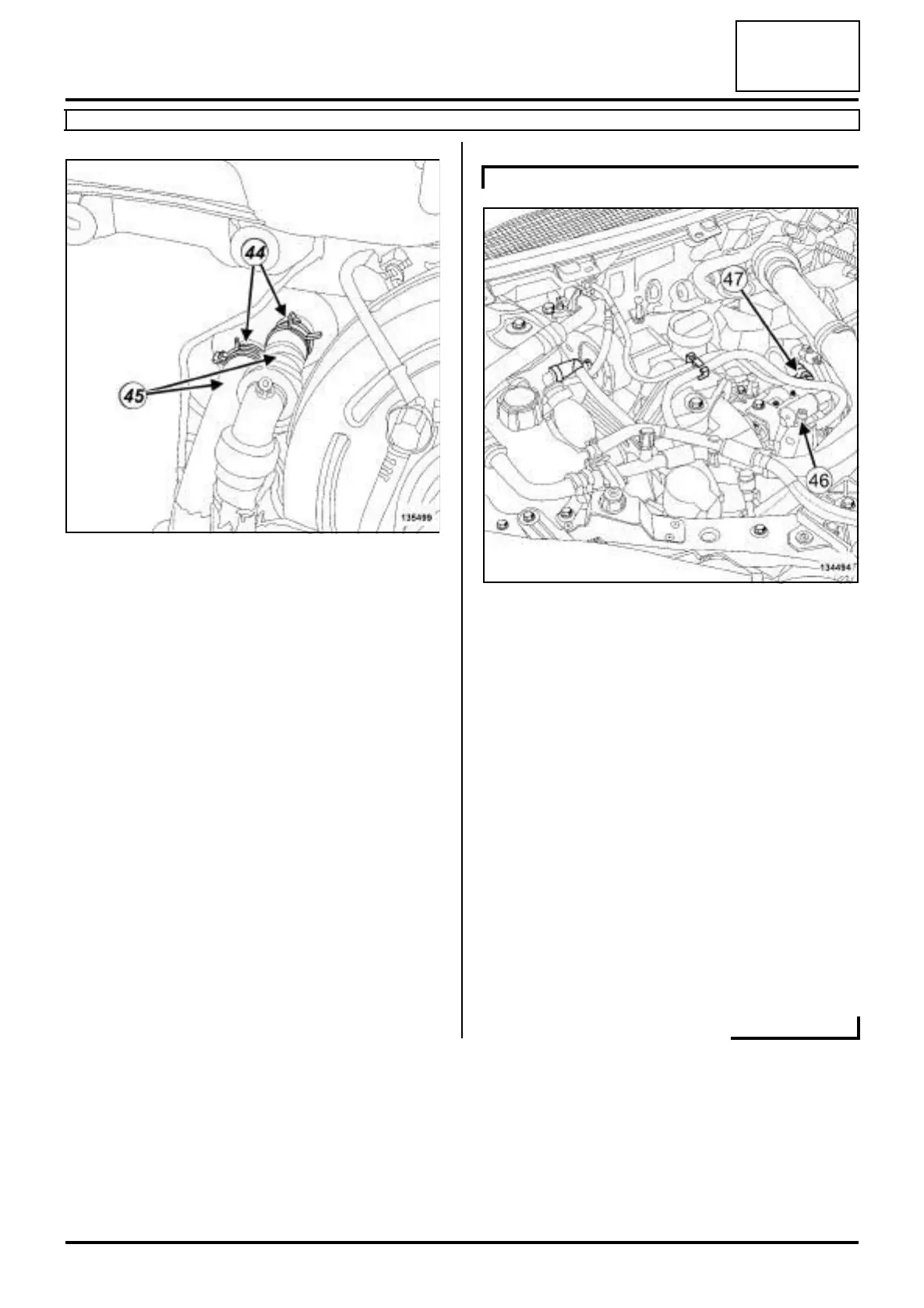

a Separate the clip (44) of each heater matrix cooling
hose on the heater matrix (45) .
a Disconnect the heater matrix cooling hoses (45)
from the heater matrix.
a Unclip the fuel supply pipe from the "rubber pad - co-
ver" assembly of the right-hand suspended engine
mounting.
a Disconnect the fuel supply pipe (46) from the high
pressure pump.
a Fit an appropriate blanking plug:
- on the fuel supply pipe union,
- on the high pressure pump opening.
a Unclip the diesel return pipe from the "rubber pad -
cover" assembly of the right-hand suspended engi-
ne mounting.
a Disconnect the diesel return pipe (47) from the die-
sel injector return rail.
a Fit an appropriate blanking plug:
- on the diesel return pipe union,
- on the opening of the fuel return rail.
135499
K9K, and 832
134494
