10A-126
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

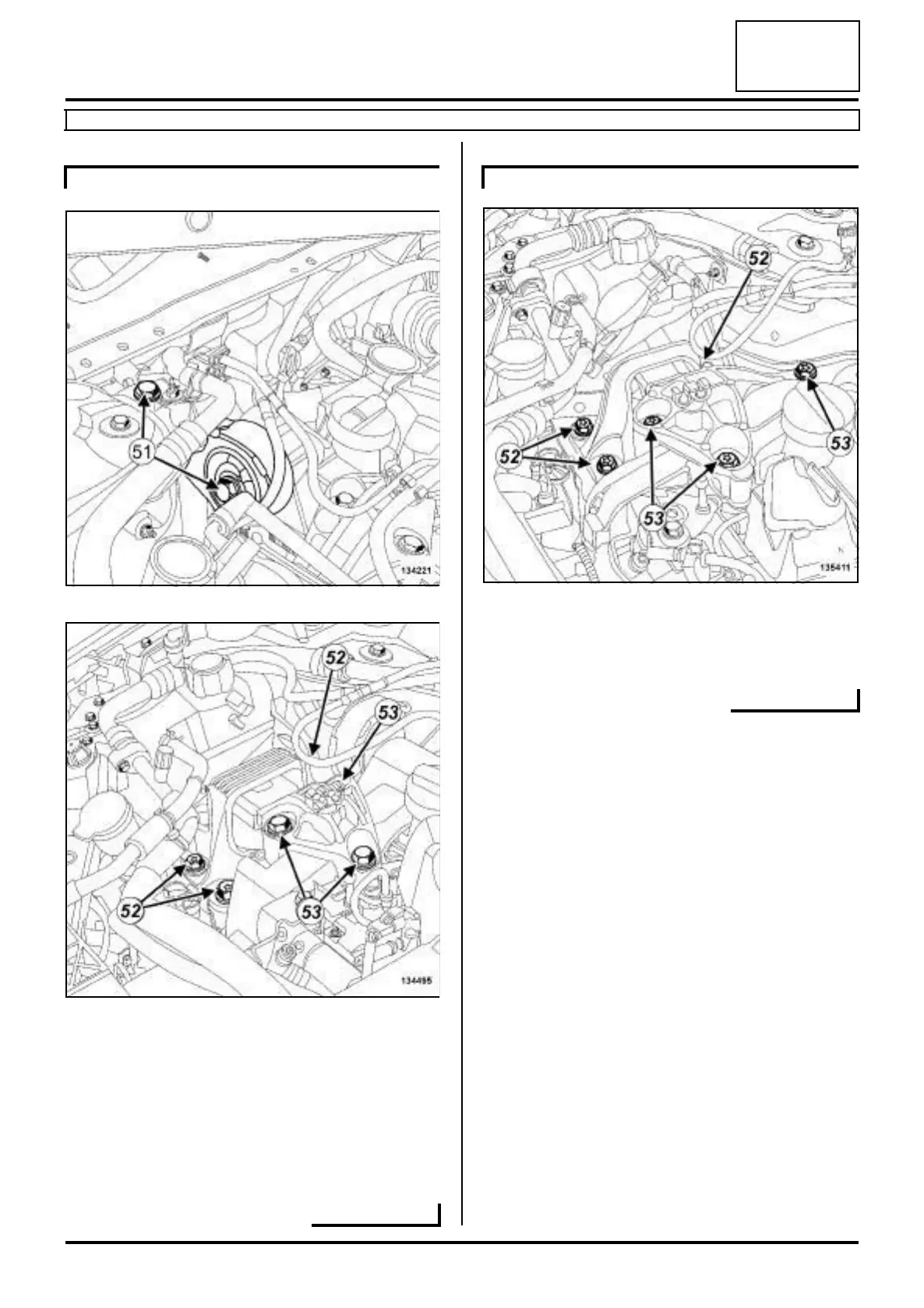

a Remove:
-the upper engine tie-bar bolts (51) ,
-the upper engine tie-bar.
a Remove the bolts (52) of the "rubber pad - cover" as-
sembly of the right-hand suspended engine moun-
ting from the body.
a Remove the bolts (52) of the "rubber pad - cover" as-
sembly of the right-hand suspended engine moun-
ting from the body.
a Raise the engine slightly using the tool (Mot. 1453)
equipped with the tool (Mot. 1453-01) until the "rub-
ber pad - cover" assembly of the right-hand suspen-
ded engine mounting detaches from the body.
a Remove:
- the bolts (53) of the "rubber pad - cover" assembly
of the right-hand suspended engine mounting from
the cylinder head,
- the "rubber pad - cover" assembly of the right-hand
suspended engine mounting.
K9K, and 832
134221
134495
K9K, and 830
135411
