10A-127
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K9K, and 830 or 832
10A

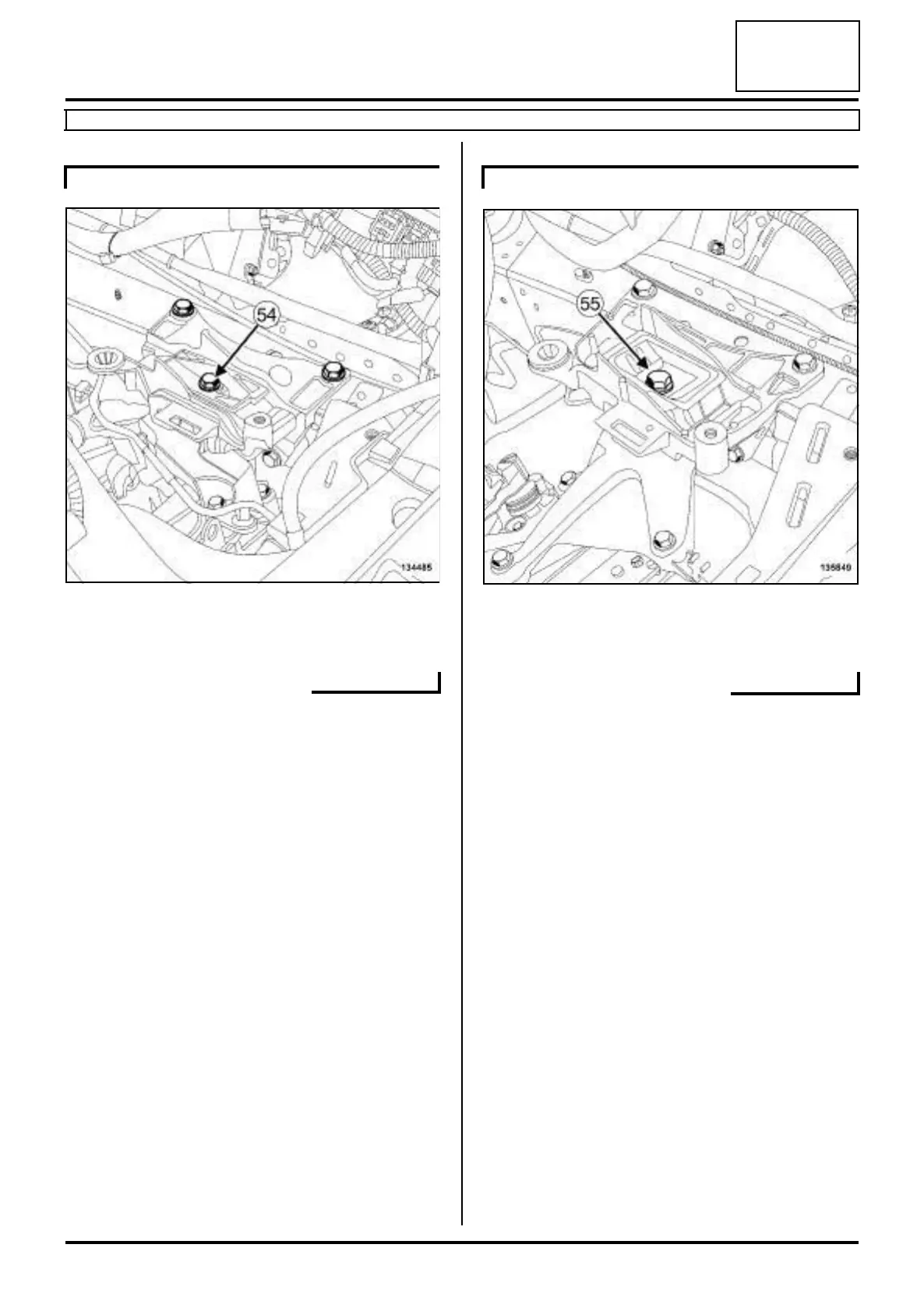

a Remove the bolt (54) from the left-hand suspended
engine mounting support on the gearbox.
a Remove the bolt (55) from the left-hand suspended
engine mounting support on the gearbox.
a Remove the "engine - gearbox" assembly using the
tool (Mot. 1390).
a Strap the "engine - gearbox" assembly to the tool
(Mot. 1390) using a safety strap(s).
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: seal between cata-
lytic converter and exhaust downpipe hose (10,
08,02,21).
a parts always to be replaced: refrigerant pipe seal
(30,02,02,52).
II - REFITTING OPERATION FOR PART
CONCERNED
a Position the "engine - gearbox" assembly in the en-
gine compartment.
a Torque tighten the bolt of the left-hand suspended
engine mounting support on the gearbox (62
N.m).
a Refit the "rubber pad - cover" assembly of the right-
hand suspended engine mounting.
K9K, and 832
134485
K9K, and 830
135849
