10A-133
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
a Drain:
-the refrigerant circuit using a refrigerant charging
station (see Coolant circuit Draining - Refilling)
(62A, Air conditioning),
-the manual gearbox (see Manual gearbox oil:
Draining - Refilling) (21A, Manual gearbox).
-the cooling system (see 19A, Cooling, Cooling
circuit: Draining - Refilling, page 19A-17) ,
-the engine oil (if necessary) (see 10A, Engine and
cylinder block assembly, Engine oil: Draining -
Refilling, page 10A-40) .
a Remove:
-the front right-hand driveshaft (see Front right-
hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
-the front left-hand driveshaft (see Front left-hand
wheel driveshaft: Removal - Refitting) (29A, Dri-
veshafts),
-the differential output seals (see Differential out-
put seal: Removal - Refitting) (21A, Manual gear-
box),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .

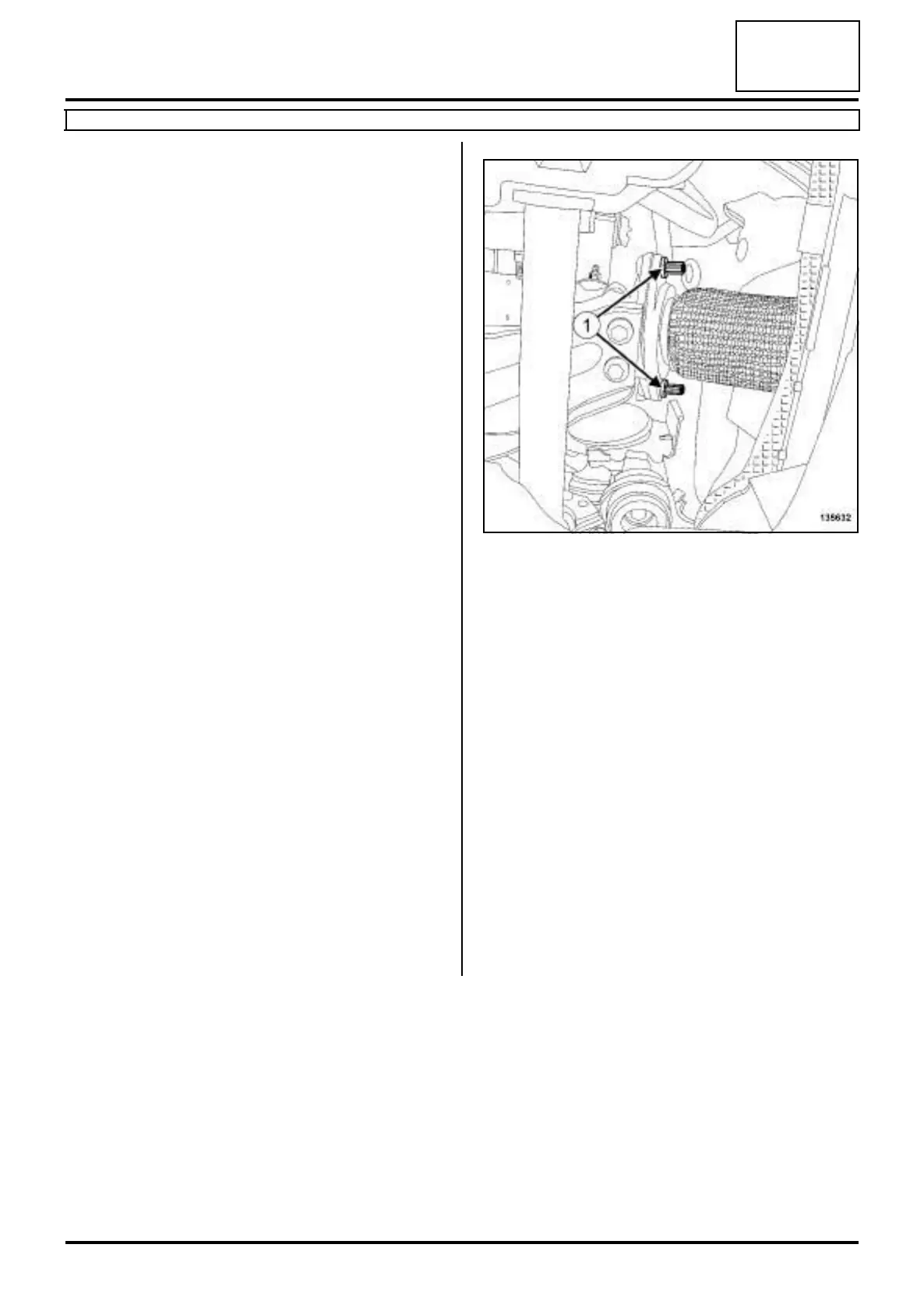

a Remove the exhaust bracket nuts.
a Move the exhaust pipe to one side.
a Remove the exhaust bracket seal.
a Remove:
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
- the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
lower structure),
- the cooling radiator air deflectors,
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms).
