10A-135
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A

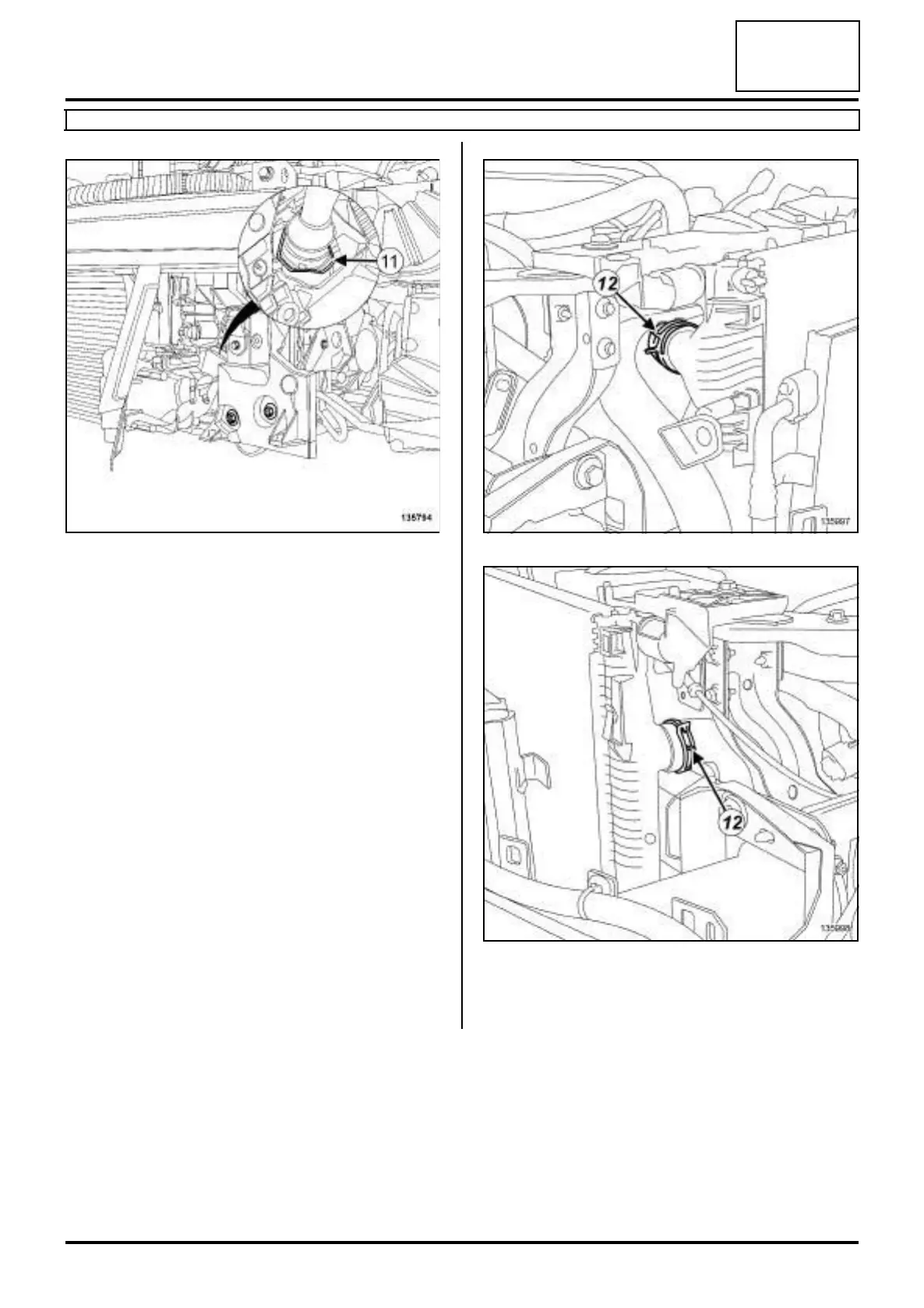

a Pull the clip (11) from the intercooler inlet air pipe.
a Disconnect the intercooler air inlet pipe.
a Move the intercooler air outlet pipe to one side.
a Separate the radiator hose clips (12) using the tool
(Mot. 1448).
a Disconnect the radiator hoses.
135794 135997
135998
