10A-140
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A

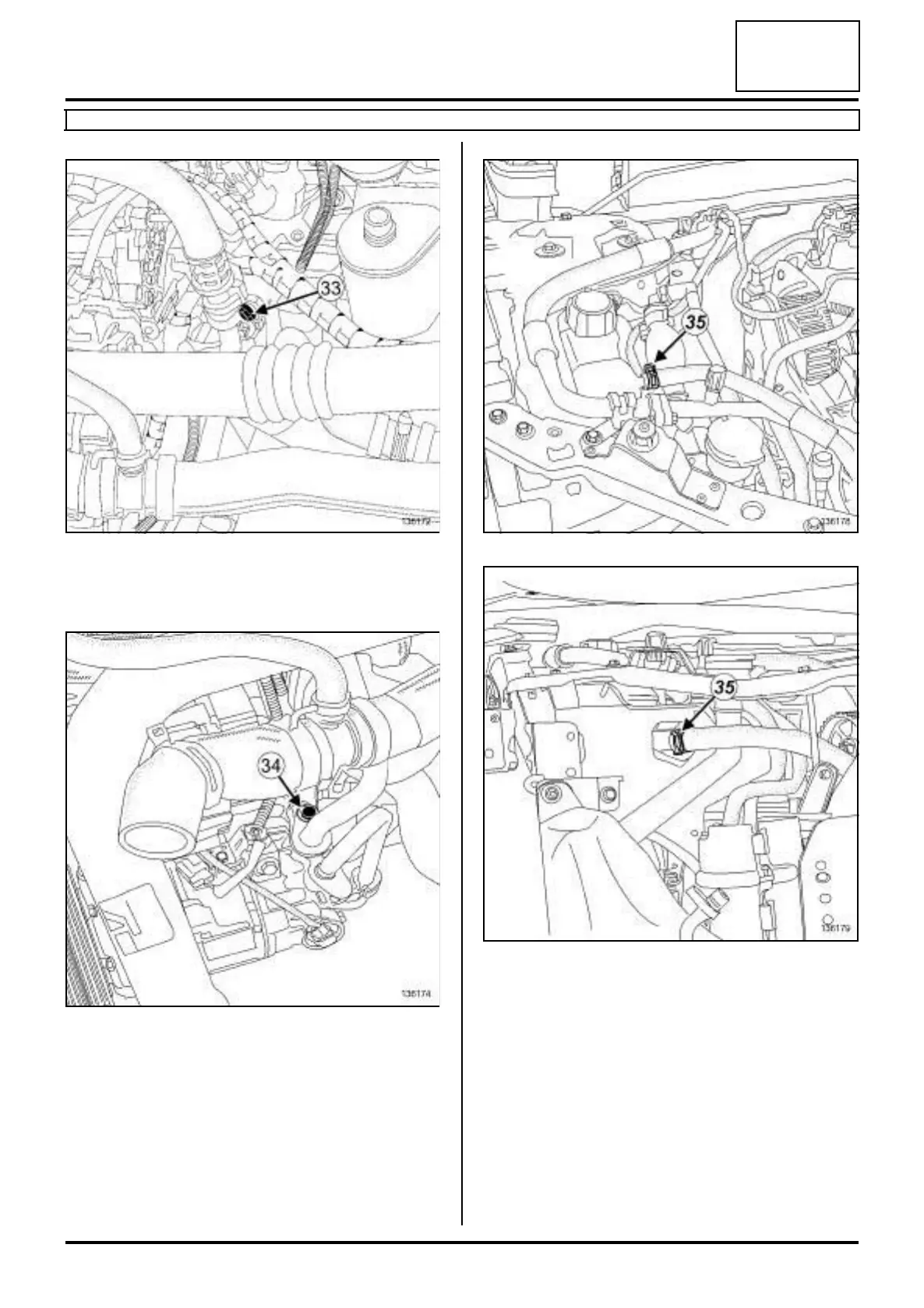

a Remove the retaining bolt (33) from the "intermedia-
te pipe - compressor" connecting pipe.
a Remove the bolt (34) from the "intermediate pipe -
compressor" connecting pipe.
a Disconnect the "intermediate pipe - compressor"
connecting pipe from the compressor.
a Remove the seal from the "intermediate pipe - com-
pressor" connecting pipe.
a Insert the blanking plugs.
a Separate the clips (35) on the expansion bottle ho-
ses using the tool (Mot. 1448).
a Disconnect the hoses from the expansion bottle.
136172
136174
136178
136179
