10A-141
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A

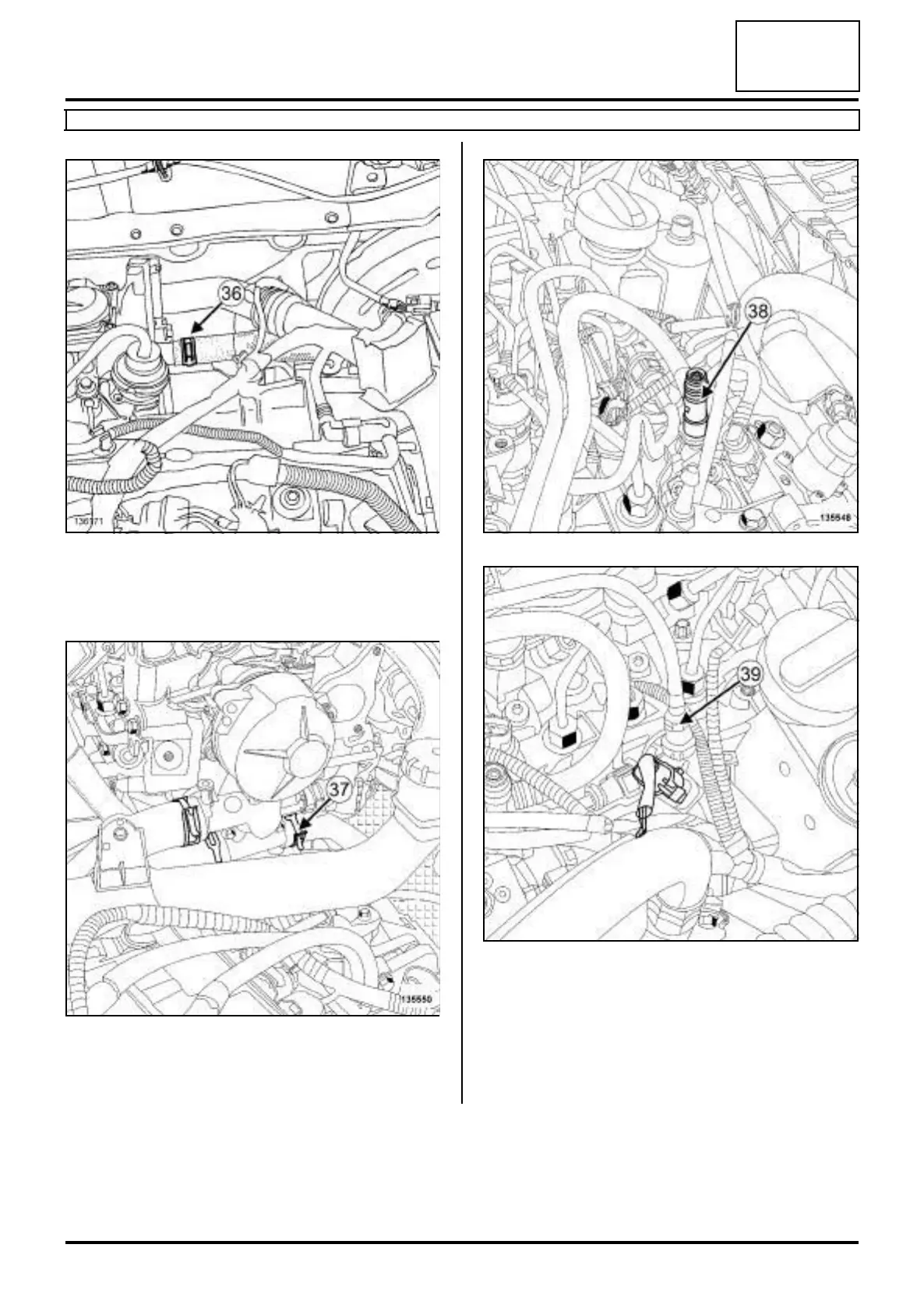

a Separate the clip (36) of the exhaust cooler hose
using the tool (Mot. 1448).
a Disconnect the hose from the exhaust cooler.
a Separate the clip (37) of the coolant outlet unit hose
using the tool (Mot. 1448).
a Disconnect the hose from the coolant outlet unit.
a Disconnect:
- the fuel supply pipe union (38) ,
- the diesel return pipe union (39) .
a Insert the blanking plugs.
136171
135550
135548
135569
