10A-142
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Support the "engine - gearbox" assembly on the
marks (40) using the tool (Mot. 1390).
a Remove the right-hand suspended engine mounting
(see 19D, Engine mounting, Right-hand suspen-
ded engine mounting: Removal - Refitting, page
19D-18) .
a Remove the central bolt (41) of the rubber pad sup-
port of the left-hand suspended engine mounting.
a Raise the vehicle, moving the engine towards the
front.
a Remove the engine - gearbox assembly.
REFITTING
I - REFITTING PREPARATION OPERATION
a For standard engine replacements (see Engine:
Standard replacement) (Technical Note 6007A,
10A, Engine and peripherals).
a parts always to be replaced: refrigerant pipe seal
(30,02,02,52).
a Always replace the exhaust bracket seal.
II - REFITTING OPERATION FOR PART
CONCERNED
a Position the "engine - gearbox" assembly in the ve-
hicle.
a Refit the central bolt of the rubber pad support of the
left-hand suspended engine mounting.
a Torque tighten the central bolt of the rubber pad
support of the left-hand suspended engine
mounting (105 N.m).
a Refit the right-hand suspended engine mounting
(see 19D, Engine mounting, Right-hand suspen-
ded engine mounting: Removal - Refitting, page
19D-18) .

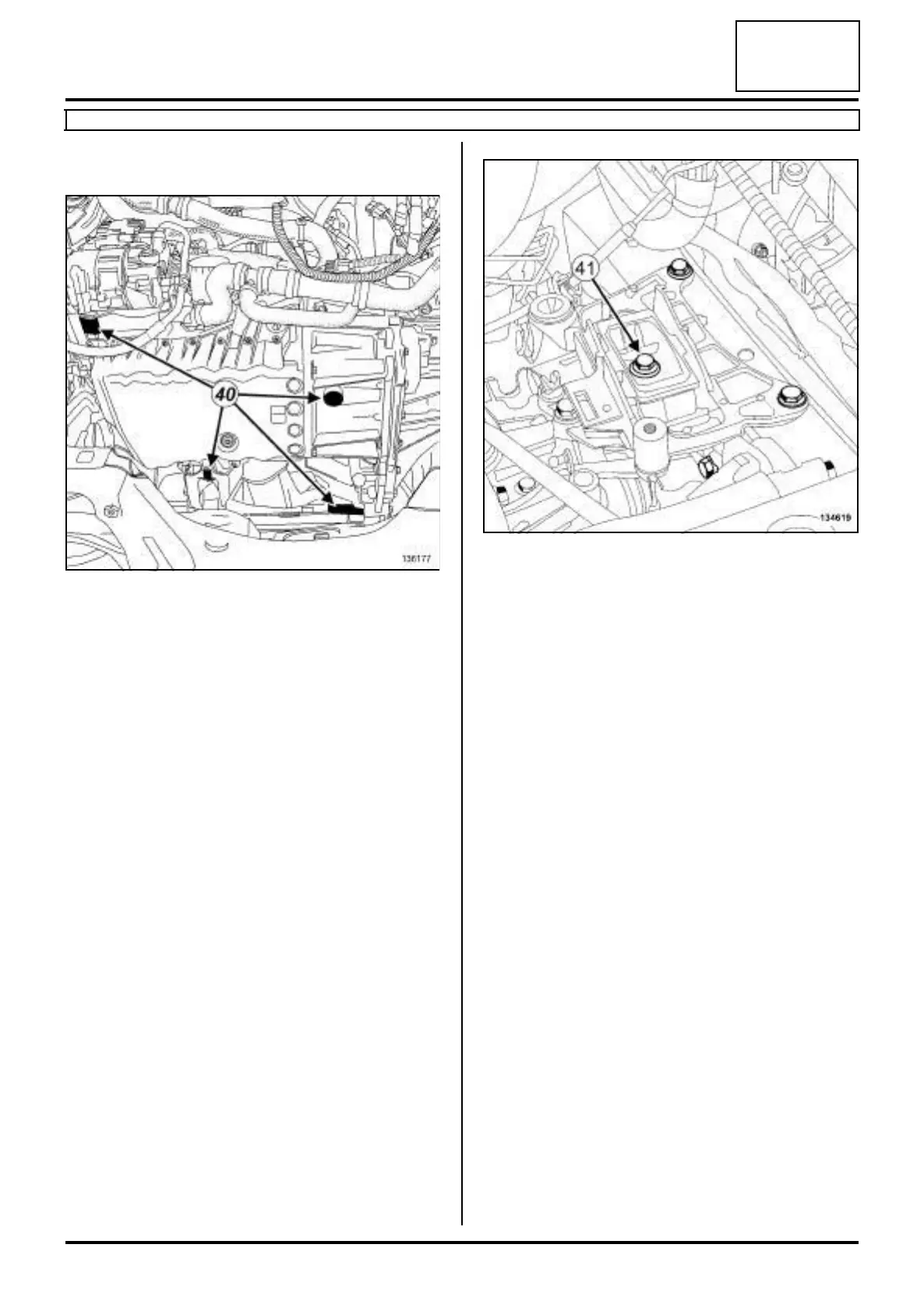

136177
134619
