Renault F4R - Page 153

10A-147
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F4R
10A

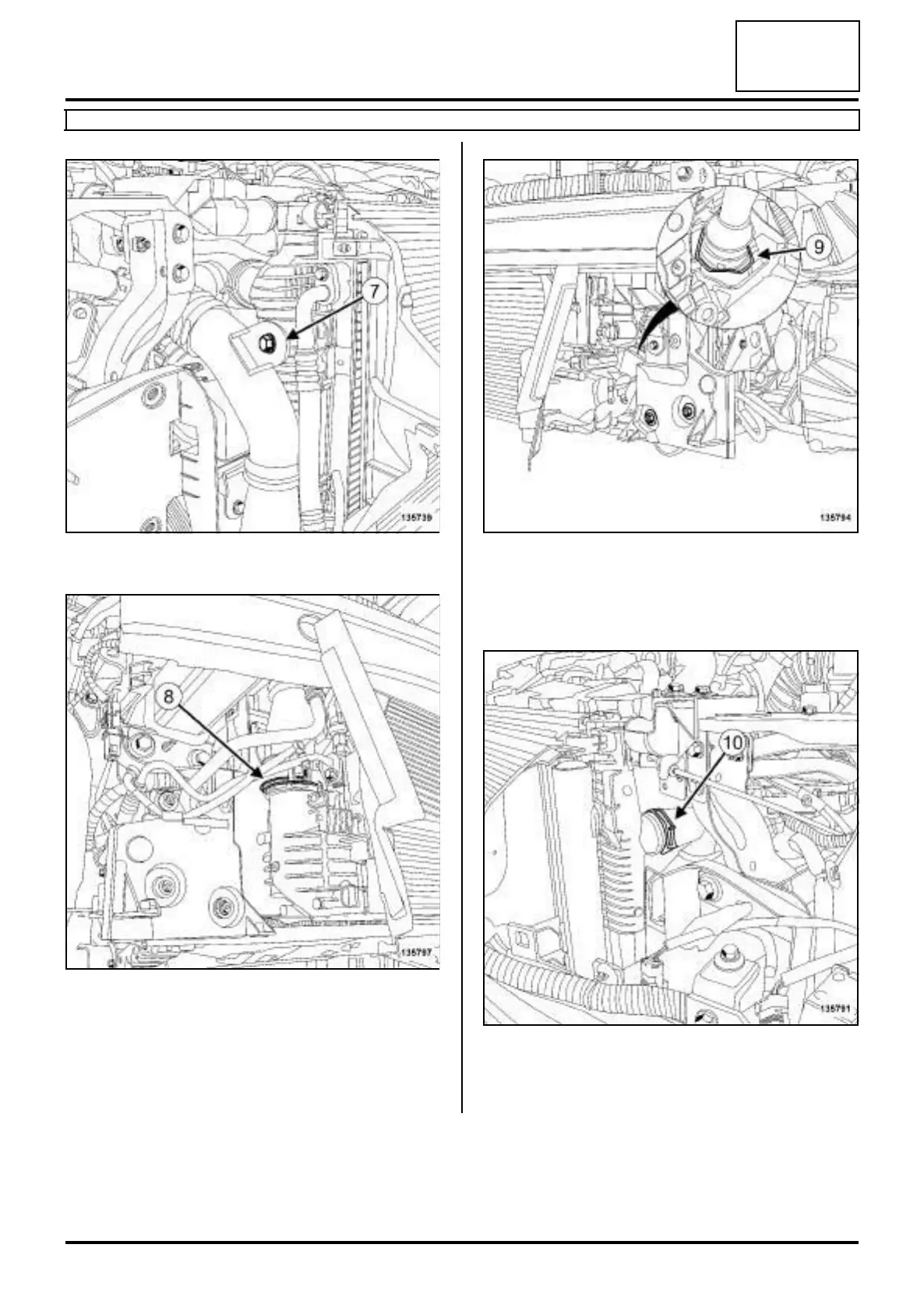

a Remove the bolt (7) on the intercooler air outlet pipe.
a Unclip the intercooler air outlet pipe at (8) .
a Disconnect the intercooler air outlet pipe.
a Move the intercooler outlet air pipe to one side.
a Unclip the intercooler air inlet pipe at (9) .
a Disconnect the intercooler air inlet pipe.
a Move the intercooler air outlet pipe to one side.
a Separate the top cooling hose clip (10) on the radia-
tor using the tool (Mot. 1448).
a Disconnect the top cooling hose from the radiator.
135739
135797
135794
135791
