ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F4R
10A

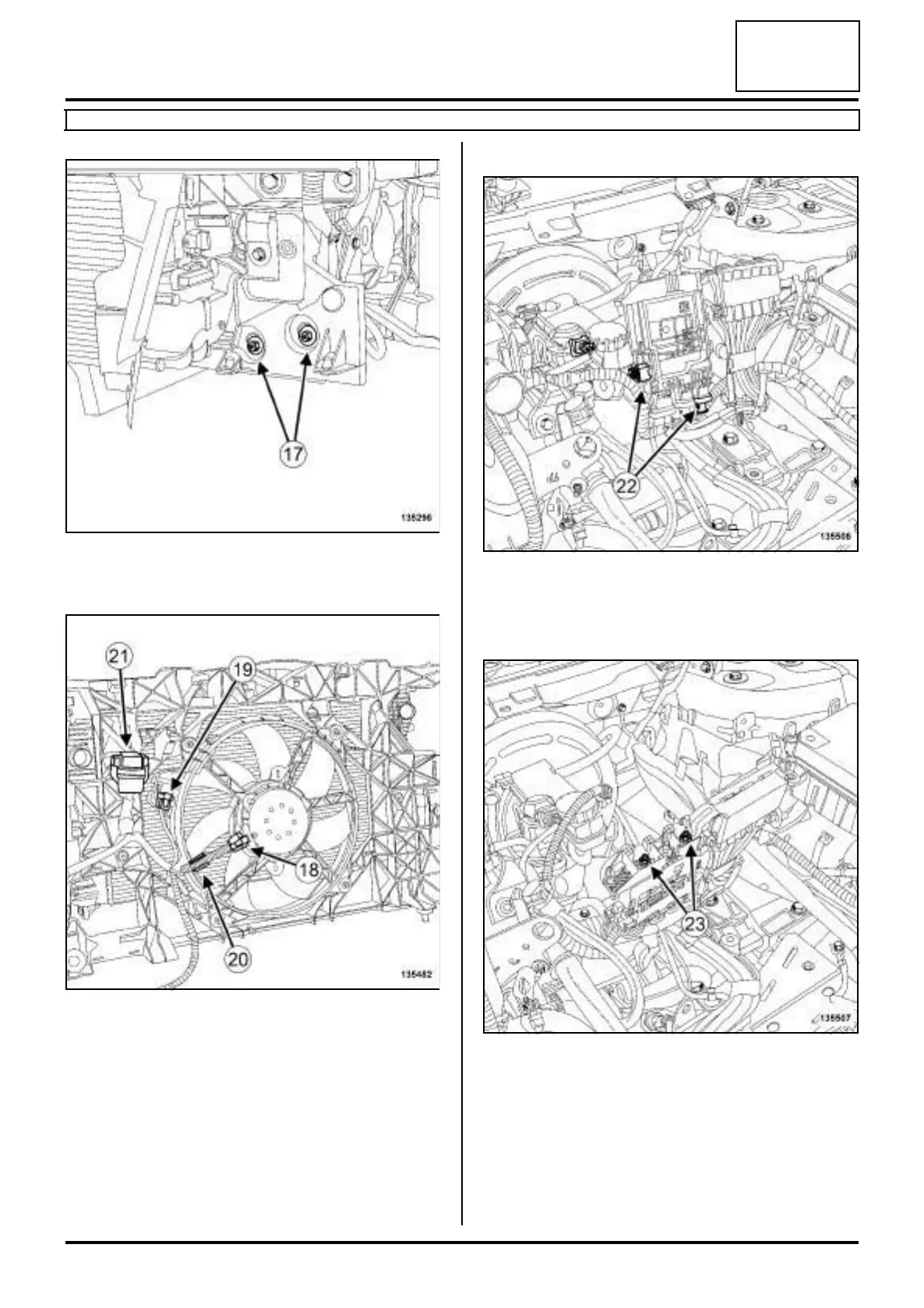

a Remove the lower bolts (17) from the front end pa-
nel.
a Disconnect:
-the fan assembly connector (18) ,
-the fan unit resistor connector (19) .
a Unclip:
-the fan assembly wiring from the fan assembly at
(20) ,
-the relay unit (21) from the front end panel.
a Move aside the fan assembly wiring.
a Remove the front end panel.
a Disconnect the connectors (22) from the battery dis-
connection unit.
a Unclip the wiring of the offset positive terminal.
a Remove the power cable nuts (23) from the battery
disconnection unit.
a Move aside the power cables.
