10A-150
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F4R
10A

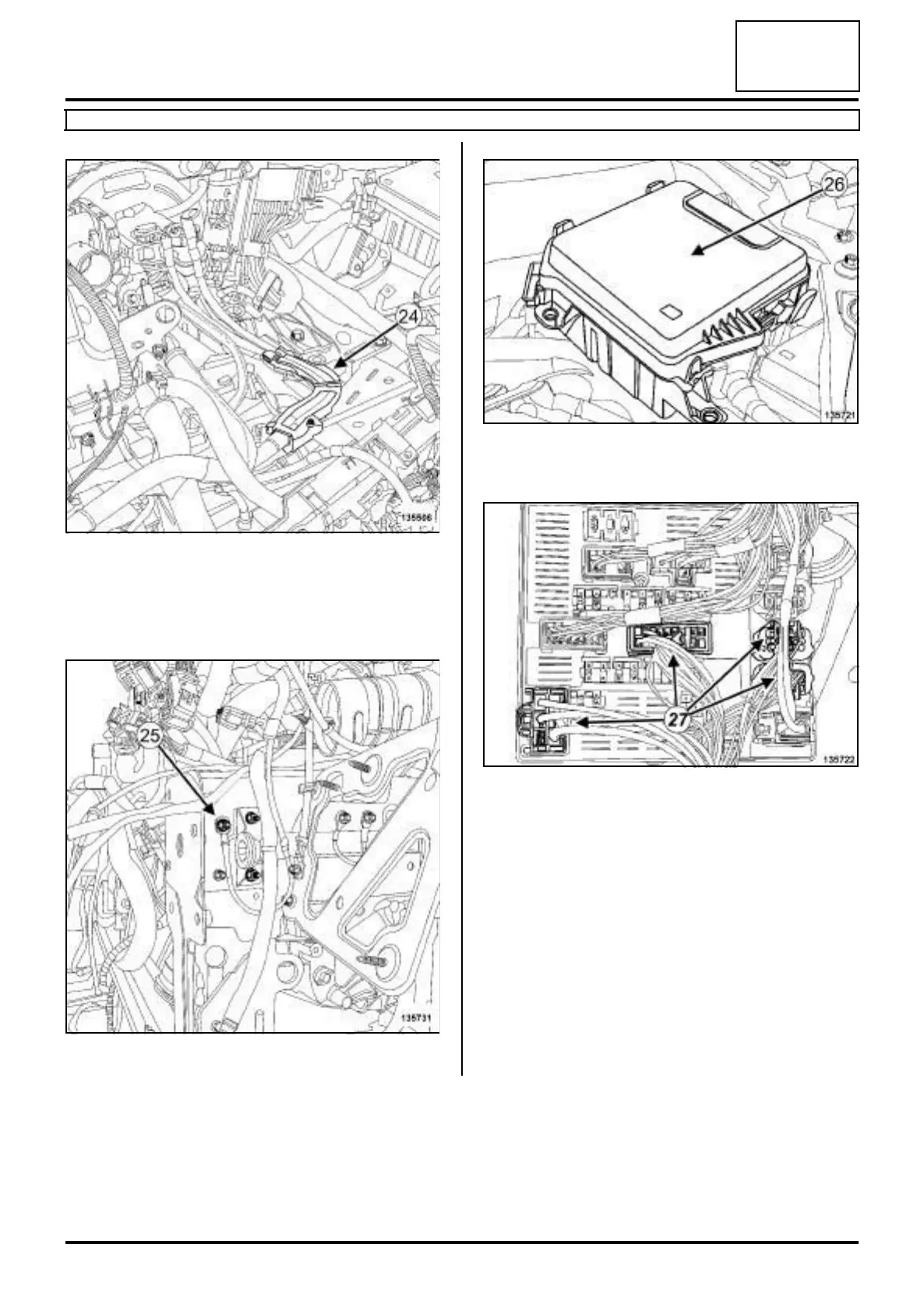

a Unclip the power wiring channel (24) from the left-
hand suspended engine mounting.
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-1) .
a Remove the earth cable nut (25) on the body.
a Remove the cover (26) from the Protection and Swit-
ching Unit.
a Disconnect the connectors (27) from the Protection
and Switching Unit.
a Remove:
- the Protection and Switching Unit,
- the engine wiring.
