10A-151
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F4R
10A

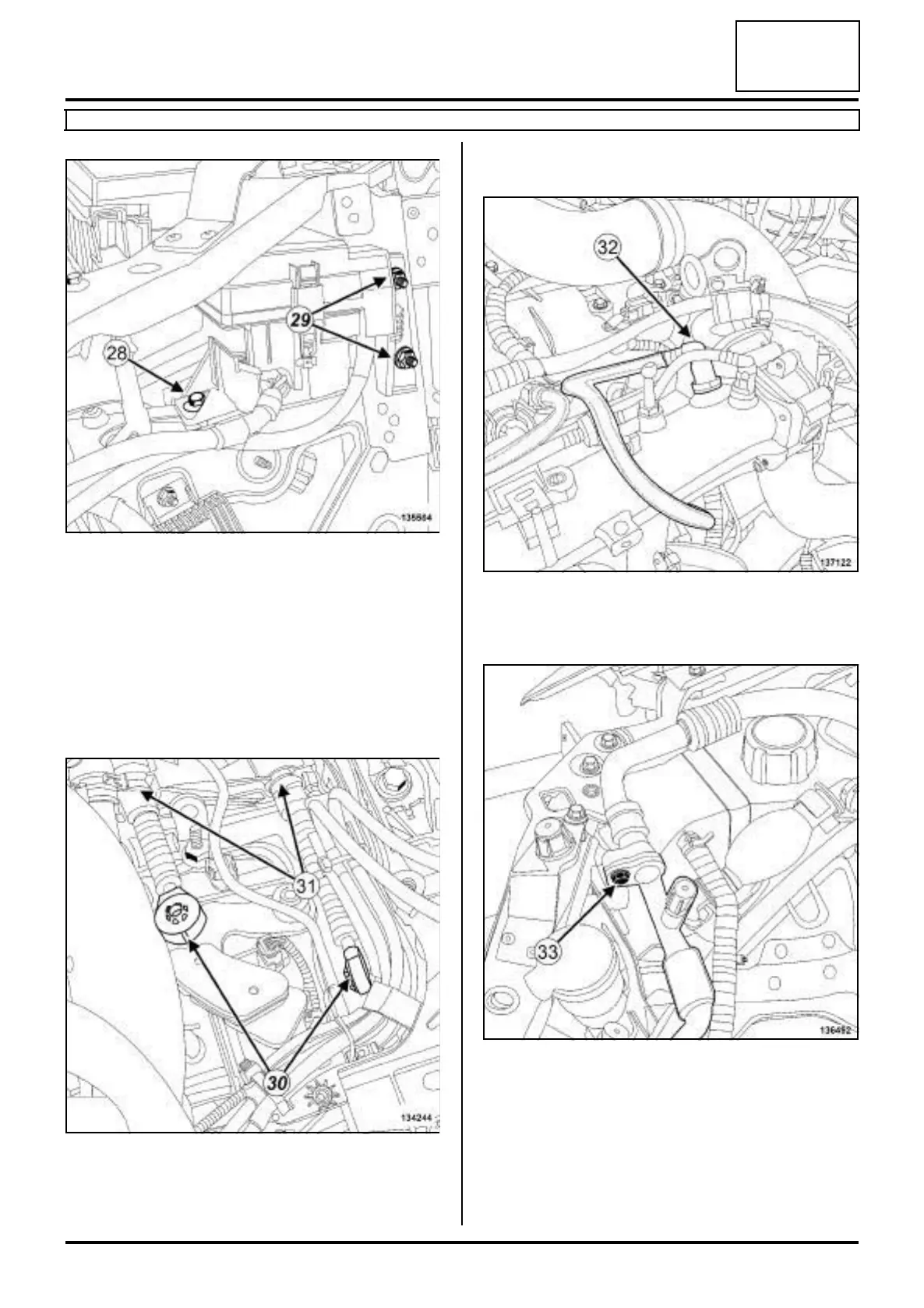

a Remove:
-the bolts (28) from the engine fuse box,
-the nuts (29) from the engine fuse box.
a Move aside the engine fuse box.
a Remove the hydraulic clutch pipe (see Clutch cir-
cuit: Removal - Refitting) (37A, Mechanical com-
ponent controls).
a Unclip:
-the manual gearbox control cables from the selec-
tor ball joints (30) using an open-jawed spanner,
- the manual gearbox control cables from their sup-
port (31) .
a Unclip the vacuum pipe (32) from the brake servo.
a Move the brake servo vacuum pipe to one side.
a Remove the bolt (33) from the « intermediate pipe -
compressor » connecting pipe.
a Uncouple the « intermediate pipe - compressor »
connecting pipe from the intermediate pipe.
a Remove the seal from the « intermediate pipe -
compressor » connecting pipe.
a Insert the blanking plugs.
135504
134244
137122
136492
