11A-9
TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
K9K
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

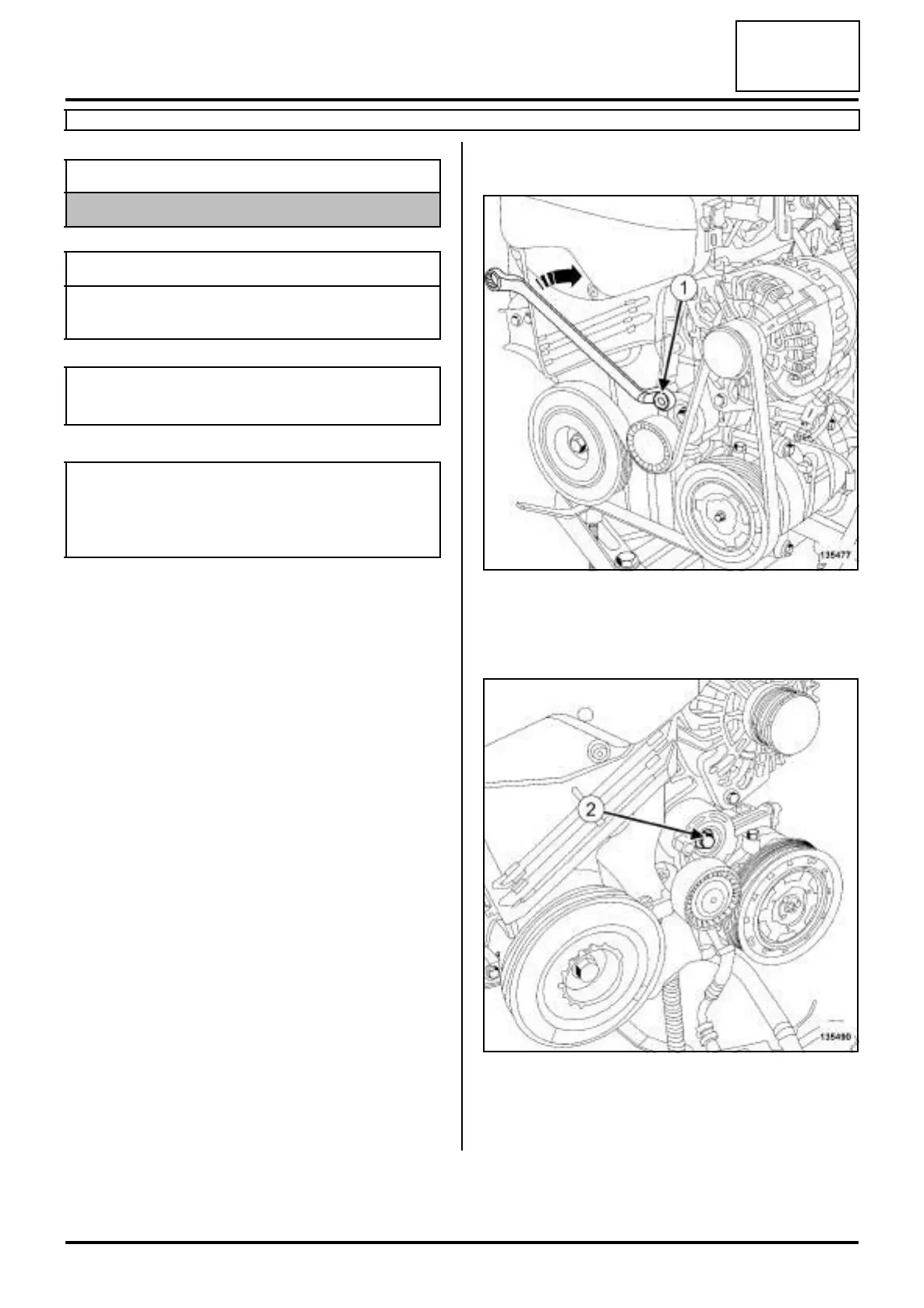

a Turn the accessories belt tensioning roller clockwise
at (1) using a 16 mm offset spanner.
a Remove the accessories belt.
a Remove:
- the accessories belt tensioning roller bolt (2) ,
- the accessories belt tensioning roller.
Essential equipment
offset spanner
Tightening torquesm
new accessories belt
tensioning roller bolt
40 N.m
IMPORTANT
Wear protective gloves during the operation.
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
135477
135490
