11A-11
TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

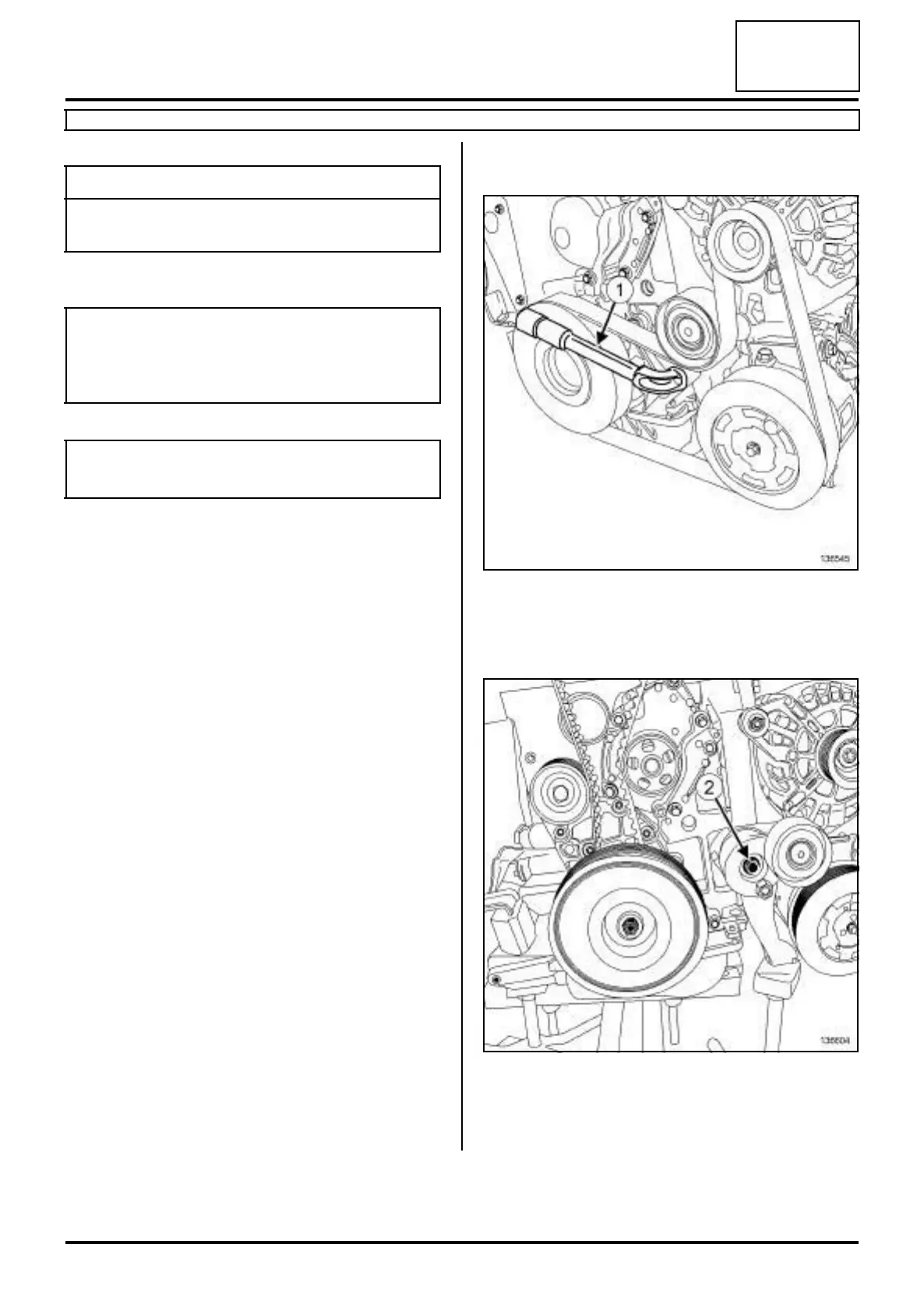

a Turn the accessories belt tensioning roller clockwise
at (1) using a 16 mm spanner.
a Remove the accessories belt.
a Remove:
- the accessories belt tensioning roller bolt (2) ,
- the accessories belt tensioning roller.
Tightening torquesm
accessories belt tensio-
ning roller bolt
50 N.m
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
IMPORTANT
Wear protective gloves during the operation.
136545
136604
