11A-13
TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
F9Q
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

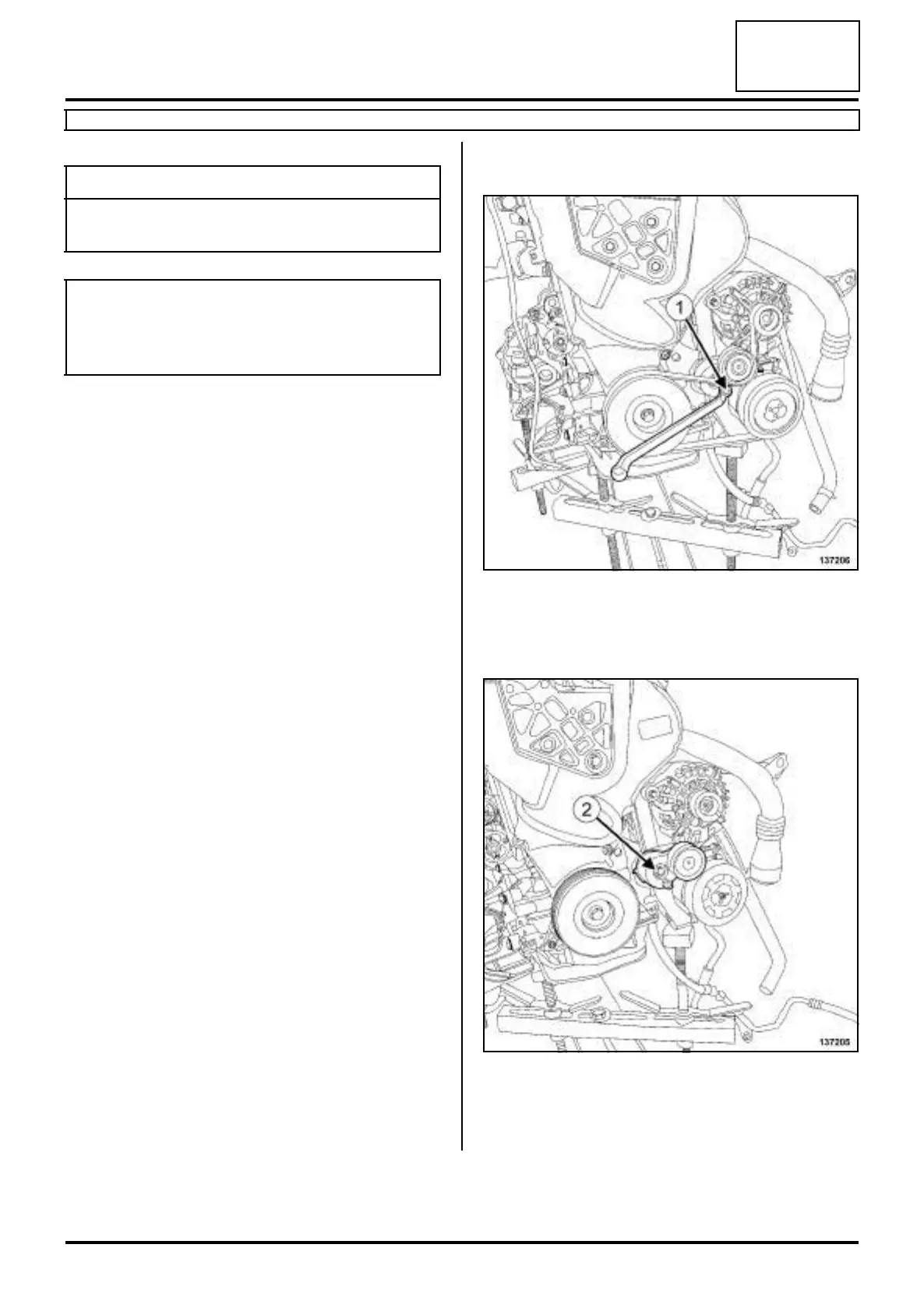

a Turn the accessories belt tensioning roller (1) cloc-
kwise.
a Remove the accessories belt.
a Remove:
- the accessories belt tensioning roller bolt (2) ,
- the accessories belt tensioning roller.
Tightening torquesm
accessories belt tensio-
ning roller bolt
50 N.m
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
137206
137205
