TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

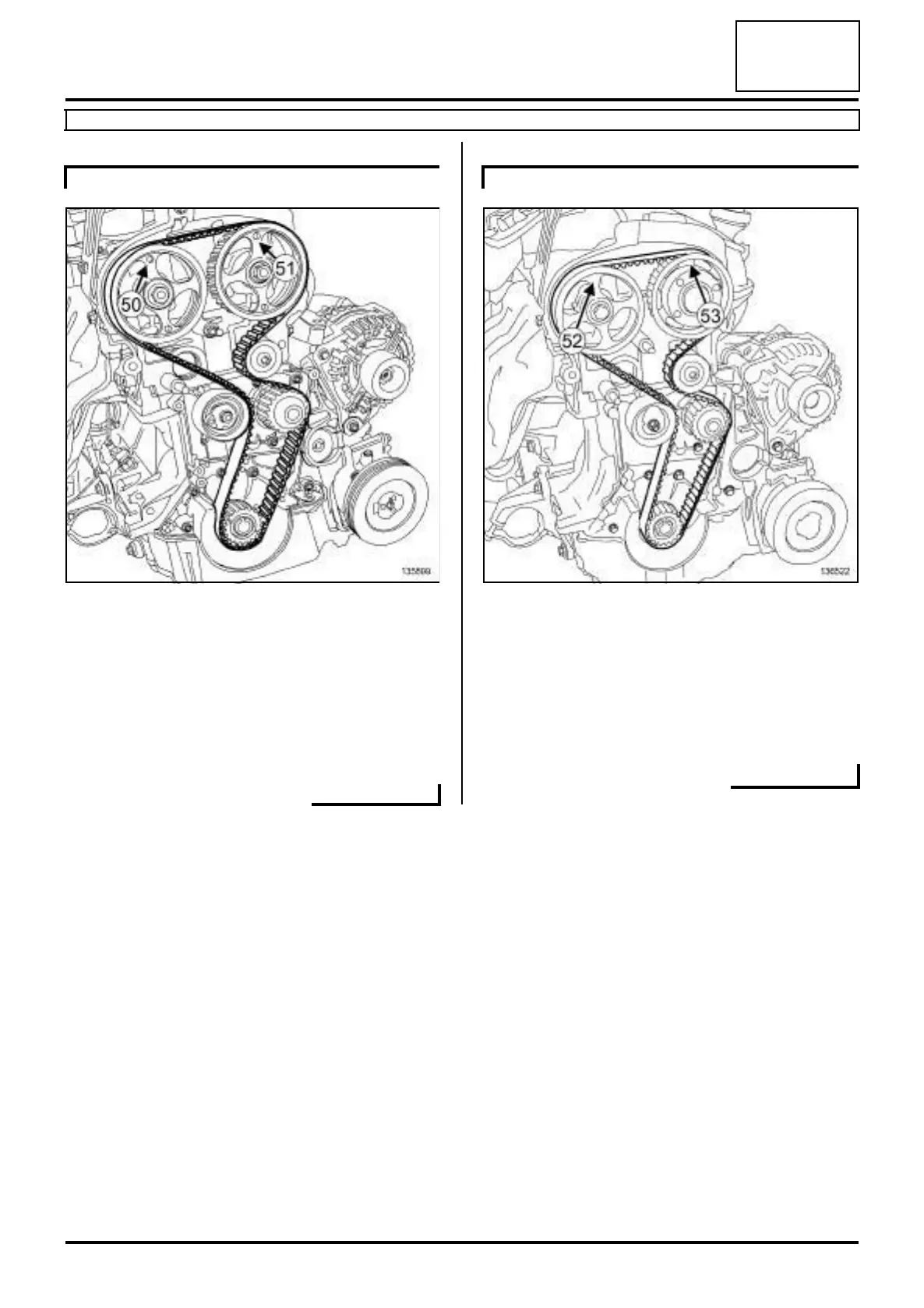

a Check that:
-the RENAULT badge (50) etched on the exhaust
camshaft pulley stem is positioned vertically and
pointing upwards,
-the RENAULT badge (51) etched on the inlet
camshaft pulley stem is positioned vertically and
pointing upwards.
a Check that:
- the RENAULT badge (52) etched on the exhaust
camshaft pulley stem is positioned vertically and
pointing upwards,
- the camshaft dephaser mark (53) vertically and
pointing upwards.
K4M, and 848
135899
K4M, and 858 or 866
136522
