11A-102
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the windscreen wiper arms (see Scuttle panel
grille: Removal - Refitting) (85A, Wiping -
Washing),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the ignition coils (see 17A, Ignition, Coils Remo-
val - Refitting, page 17A-1) .

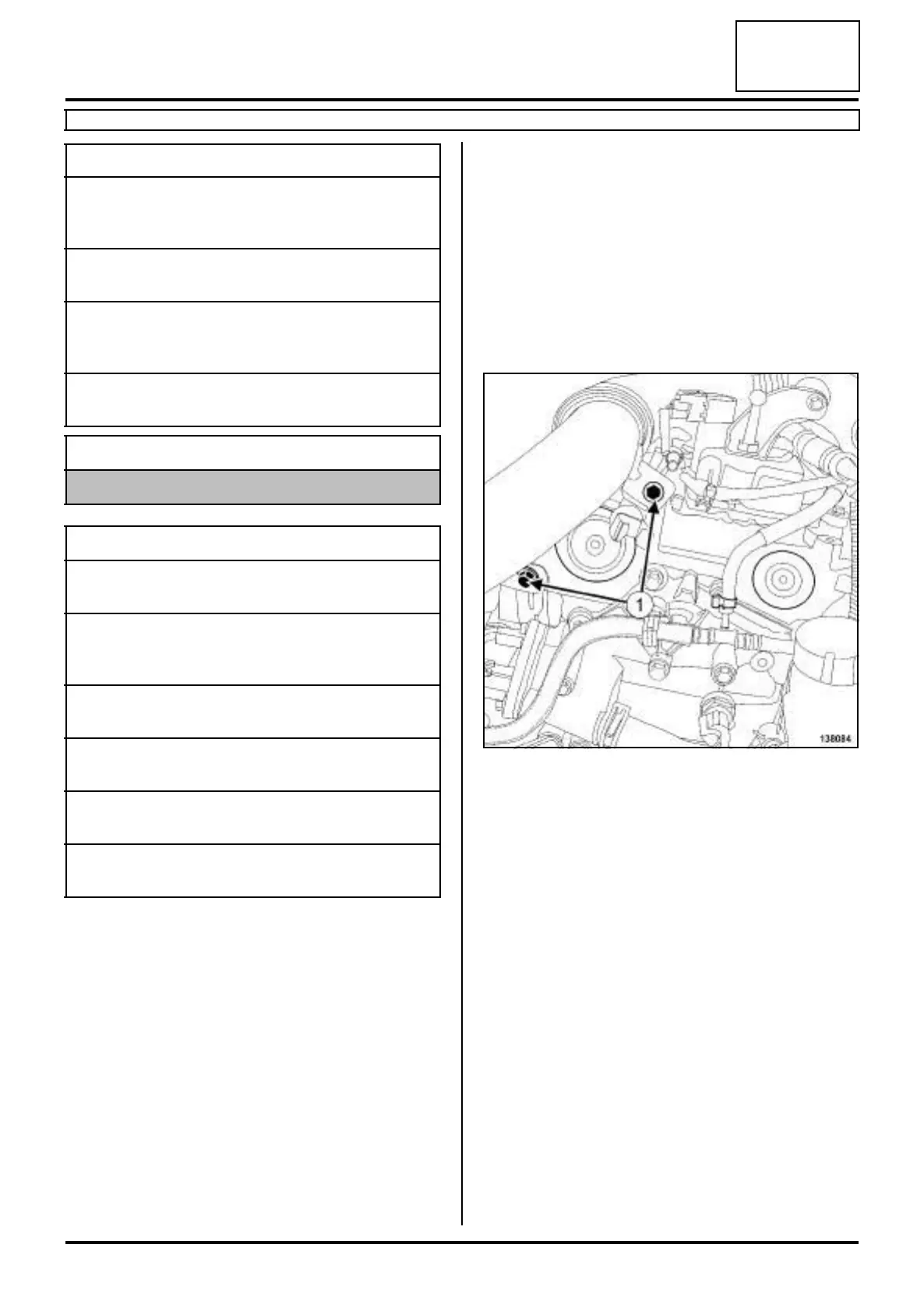

a Remove the retaining bolts (1) of the intercooler air
inlet pipe.
Essential special tooling
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Mot. 1390 Support for removing/refitting
the engine - gearbox assem-
bly.
Mot. 1716 Removes housing with sili-
cone seals.
Essential equipment
safety strap(s)
Tightening torquesm
rocker cover bolts (22),
(23), (20), (13)
8 N.m
rocker cover bolts (1) to
(12), (14) to (19), (21),
(24)
12 N.m
rocker cover bolts (22),
(23), (20), (13)
12 N.m
catalytic converter strut
nut
44 N.m
catalytic converter strut
bolt
8 N.m
clip for the intercooler
air inlet pipe
6 N.m
138084
