TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

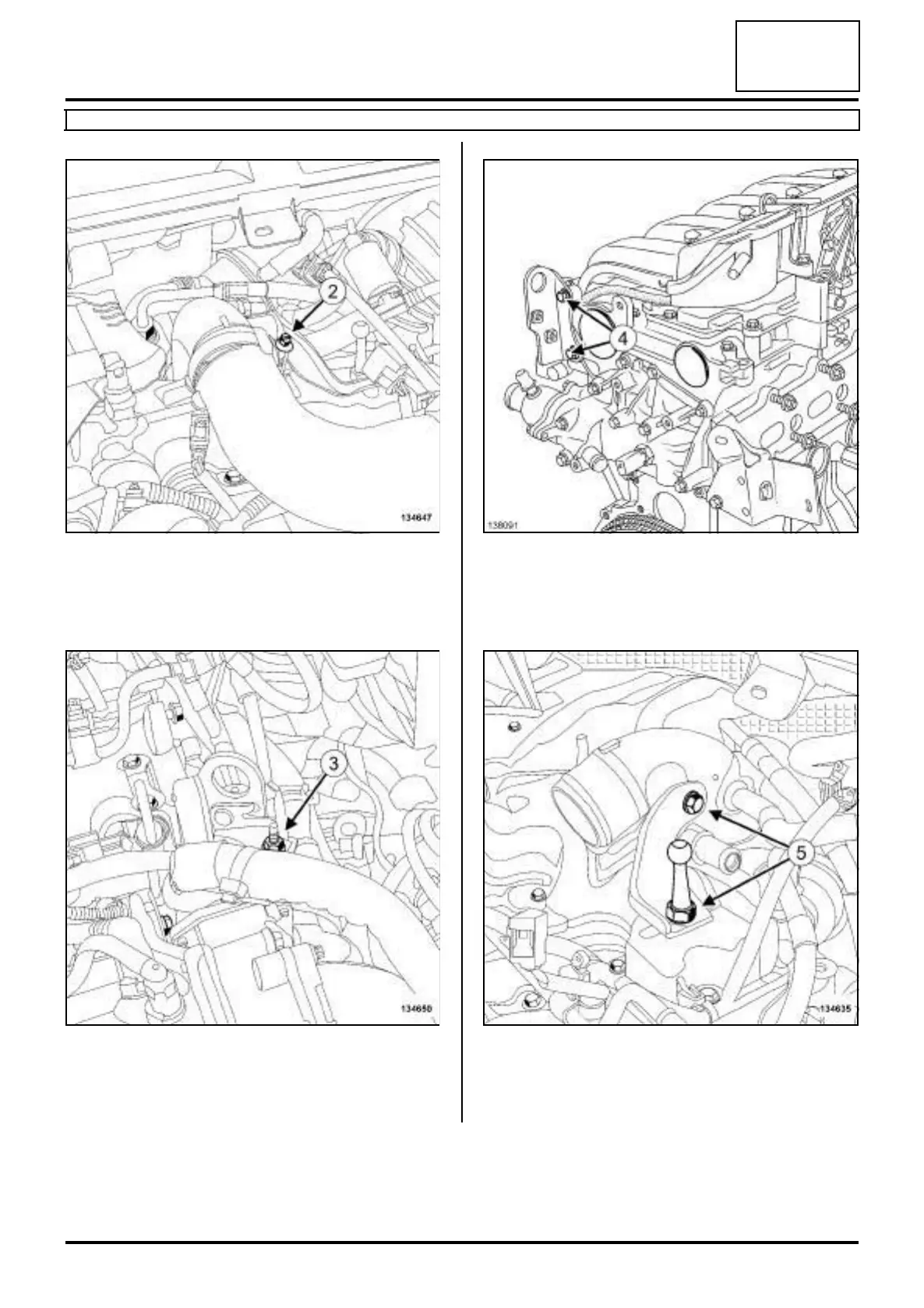

a Loosen the clip (2) on the intercooler air inlet pipe.
a Disconnect the intercooler air inlet pipe.
a Remove the intercooler inlet air pipe.
a Remove the engine wiring nut (3) on the gearbox
side lifting eye.
a Remove:
- the gearbox side lifting eye bolts (4) ,
- the gearbox side lifting eye.
a Remove:
- the bolts (5) of the turbocharger bracket,
- the turbocharger bracket.
