11A-104
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

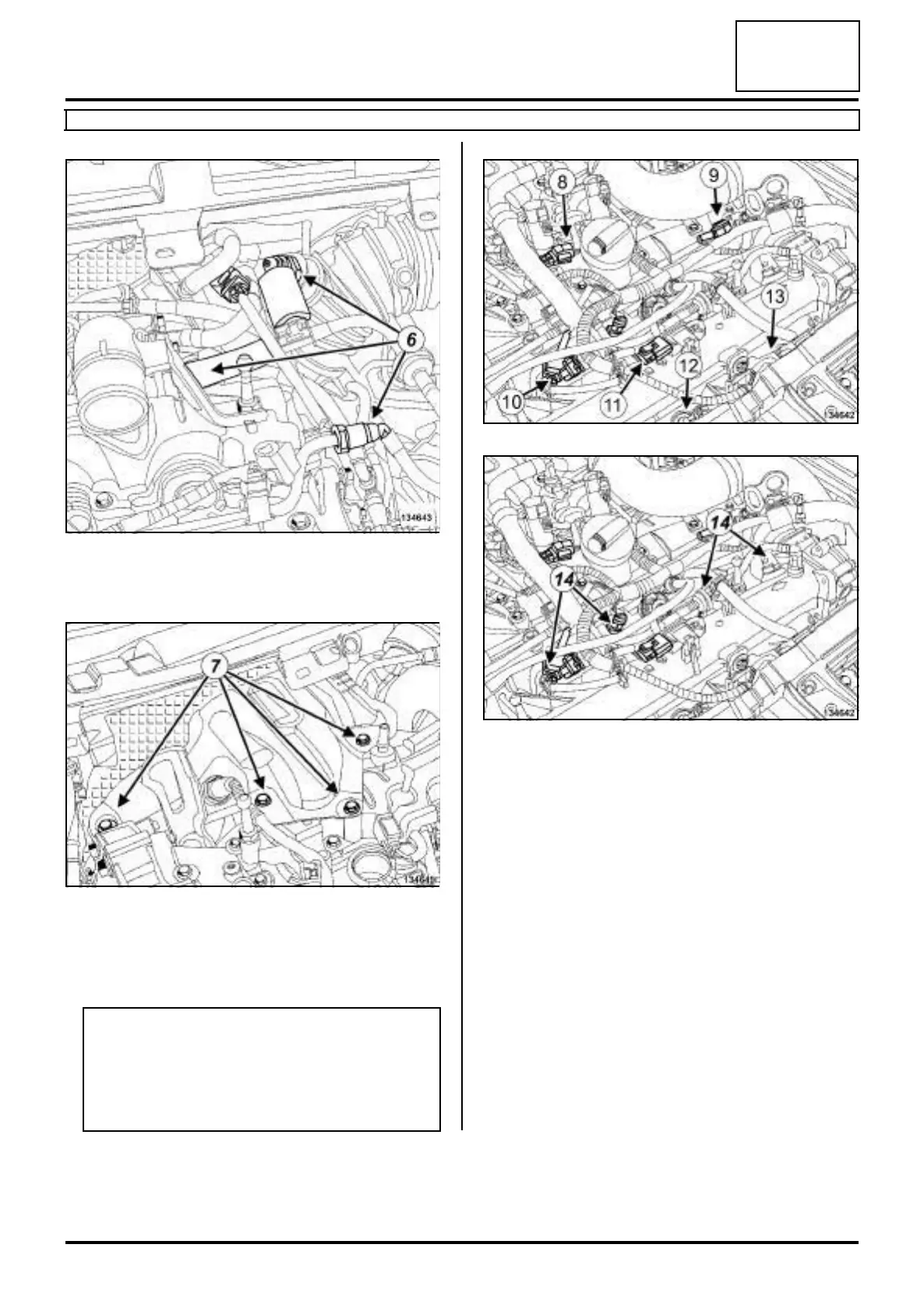

a Unclip the oil vapour rebreathing pipe at (6) .
a Remove the oil vapour rebreathing pipe.
a Remove:
-the bolts (7) from the turbocharger heat shield,
-the turbocharger heat shield.
a Disconnect:
- the upstream oxygen sensor connector (8) ,
- the camshaft position sensor connector (9) ,
- the oil vapour recirculation solenoid valve connec-
tor (10) ,
-the air pressure sensor connector on the inlet ma-
nifold (11) ,
-the air temperature sensor connector on the inter-
cooler air outlet pipe (12) ,
- the air pressure sensor connector on the intercoo-
ler air outlet pipe (13) ,
- the petrol injector connectors (14) .
a Move aside the engine wiring.
134643
134649
WARNING
To prevent the surrounding components from
overheating, do not damage (tear, pierce, bend,
etc.) a heat shield.
Any damaged heat shields must be replaced.
134642
134642
