11A-105
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

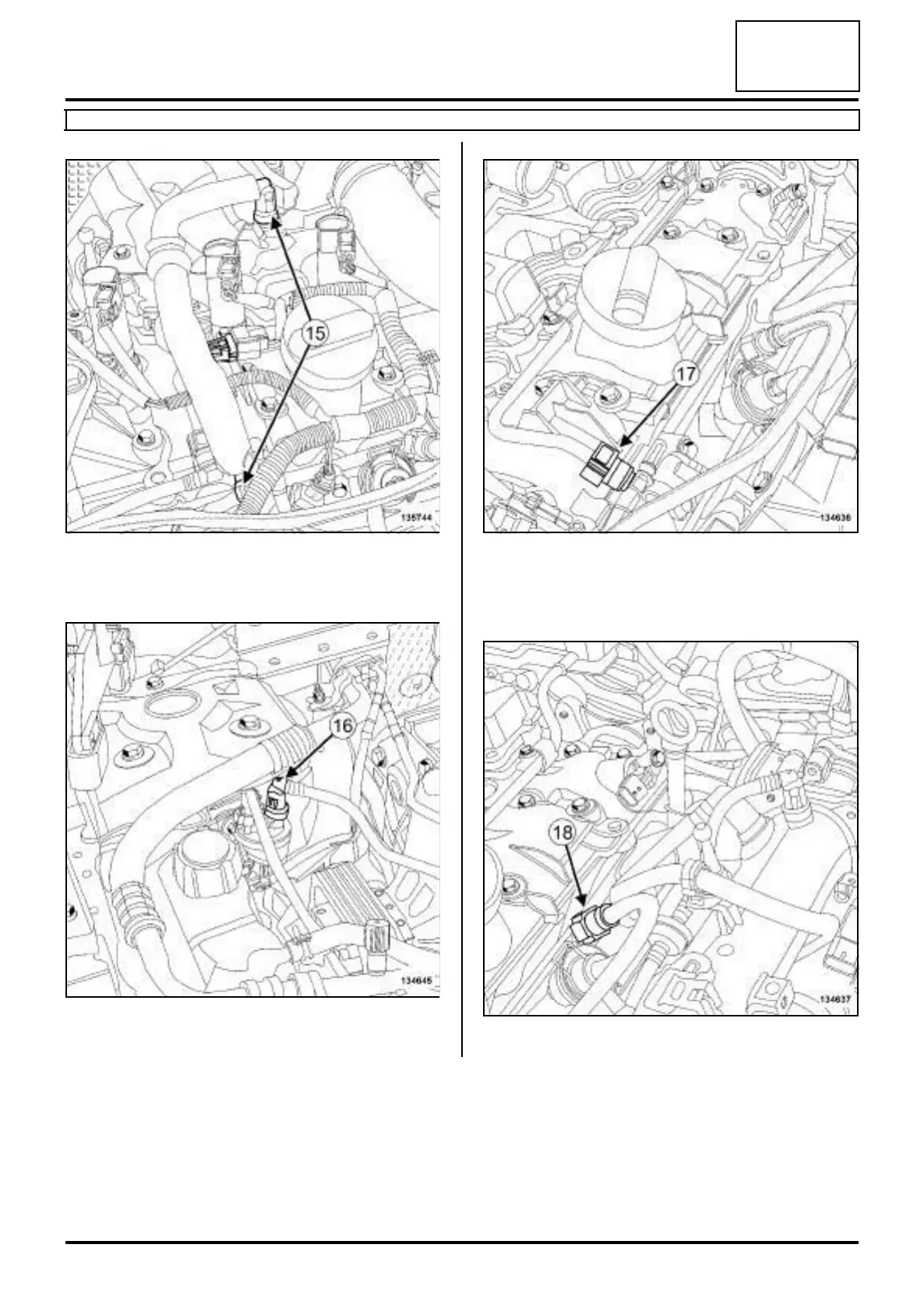

a Disconnect the oil vapour rebreathing pipe at (15) .
a Remove the oil vapour rebreathing pipe.
a Disconnect the petrol vapour rebreathing pipe at
(16) .
a Disconnect the petrol vapour rebreathing pipe at
(17) .
a Remove the petrol vapour rebreathing pipe.
a Disconnect the fuel supply pipe at (18) .
135744
134645
134636
134637
