11A-106
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

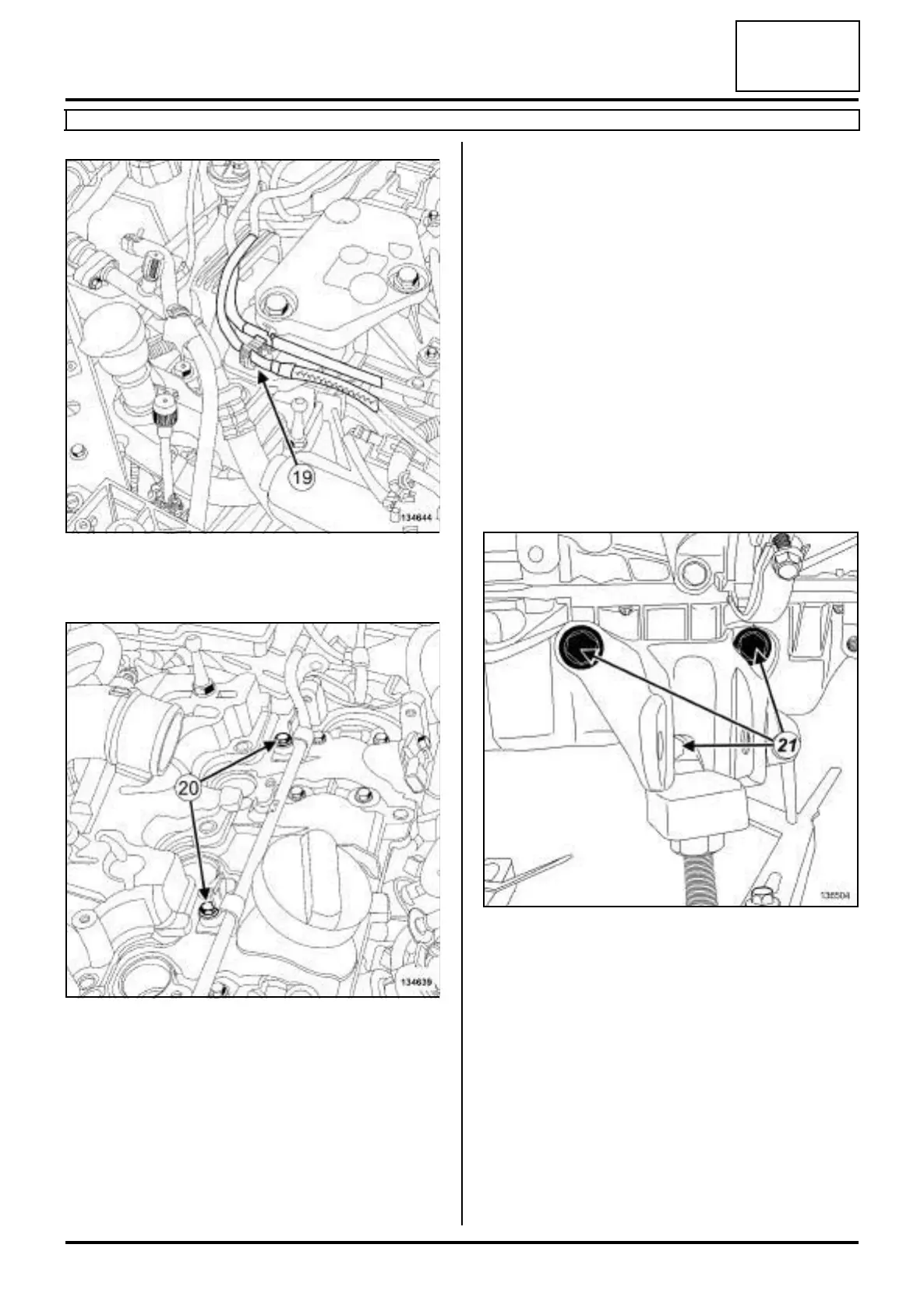

a Unclip the fuel supply pipe at (19) .
a Move aside the fuel supply pipe.
a Remove:
-the bolts (20) of the oil vapour rebreathing rigid pi-
pe,
-the oil vapour rebreathing rigid pipe,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
a Remove:
- the front right-hand driveshaft (see Front right-
hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
- the right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Remove:
- the lower engine tie-bar support bolts (21) on the
sump,
- the lower engine tie-bar support on the sump.
134644
134639
136504
