11A-107
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

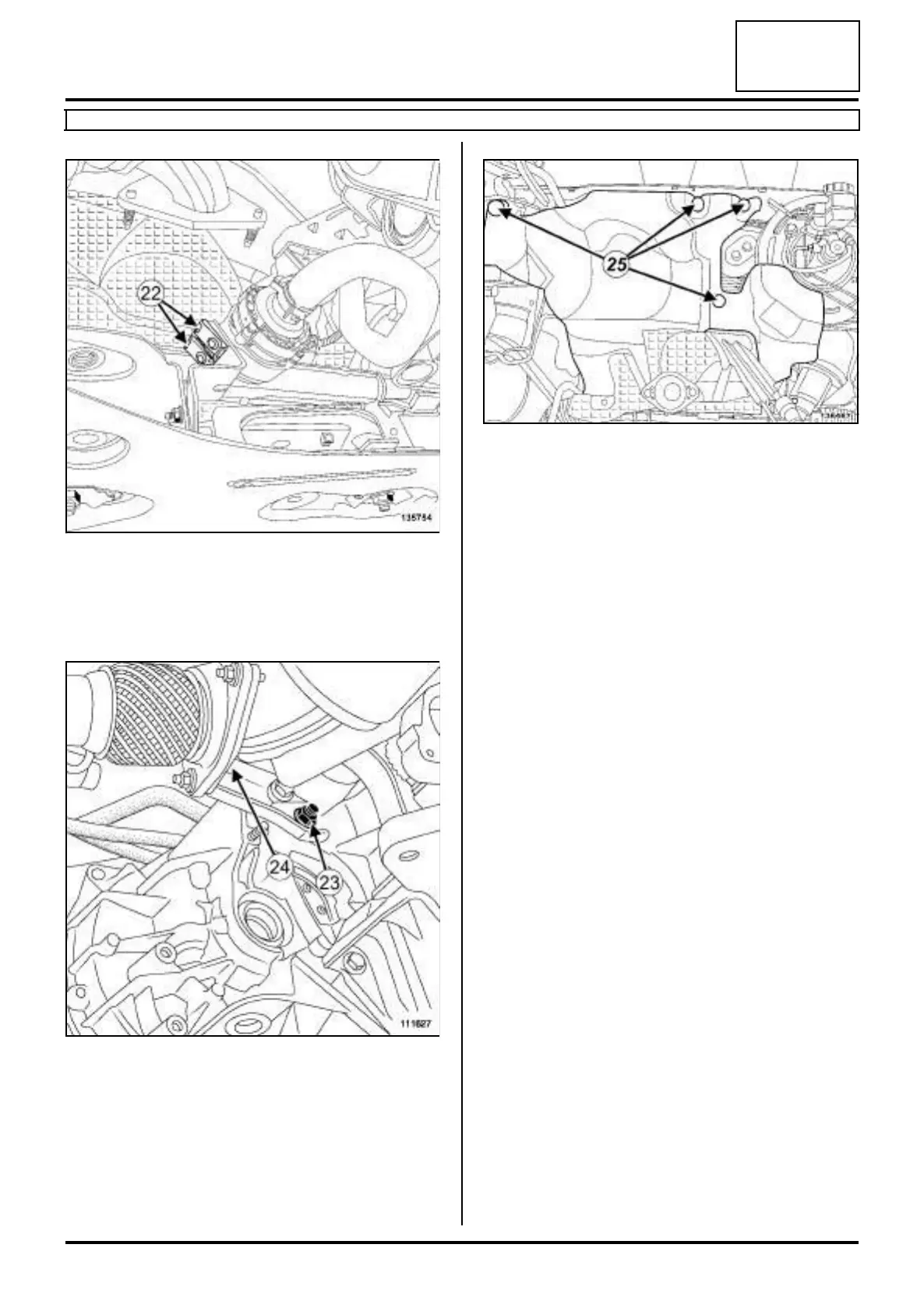

a Remove the clips (22) from the electric coolant
pump.
a Move aside the electric water pump.
a Remove:
-the nut (23) and the bolt (24) from the catalytic con-
verter strut,
-the catalytic converter strut,
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) .
a Remove:
- the bolts (25) from the upper heat shield,
- the upper heat shield,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
,
- the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) .
135754
111627
136467
