11A-108
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A

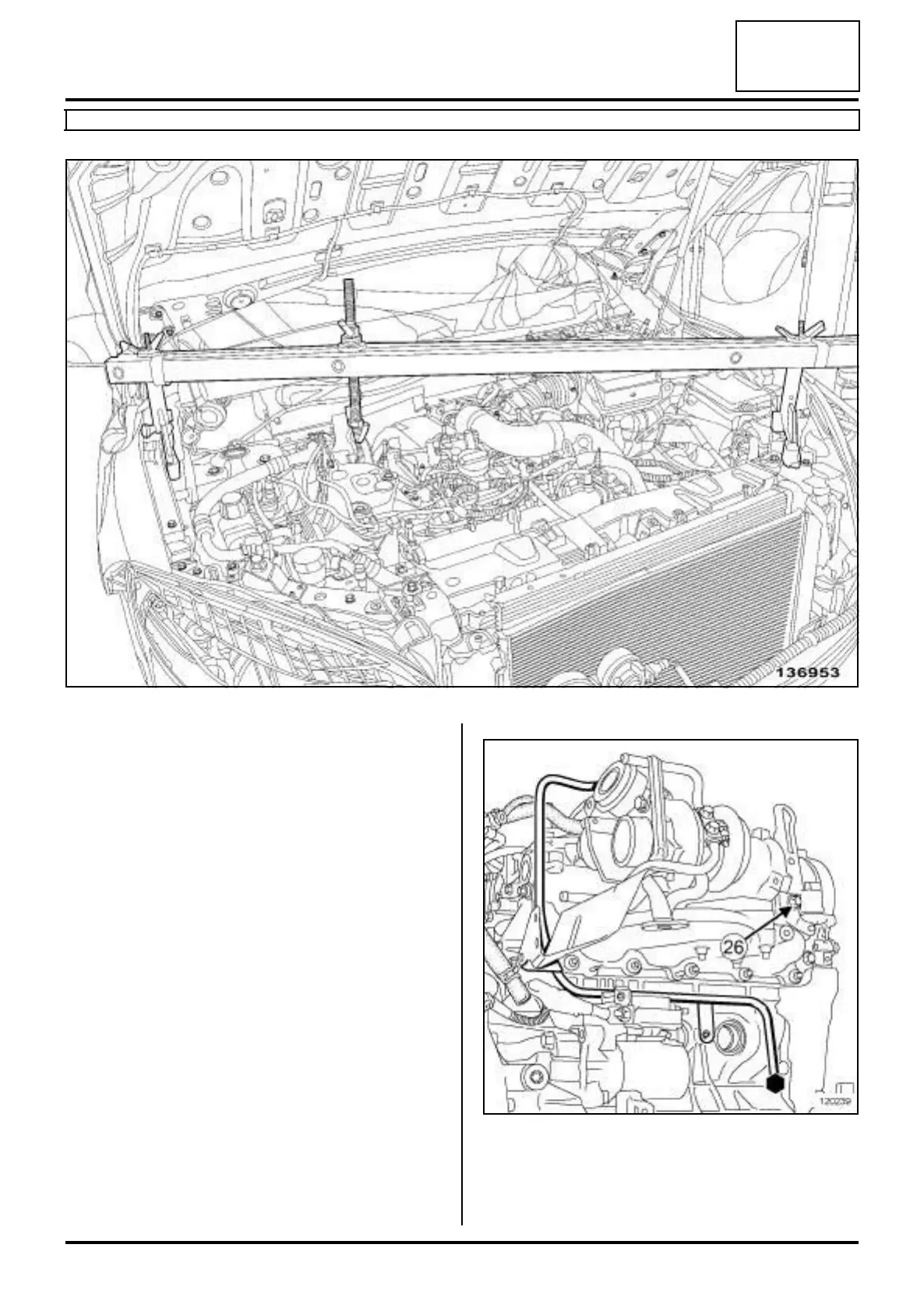

a Fit the (Mot. 1453) equipped with (Mot. 1453-01)
and a safety strap(s).
a Remove:
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) .
a Position the (Mot. 1390).
a Remove the tool (Mot. 1453) equipped with the tool
(Mot. 1453-01) and the safety strap(s).
a Remove:
- the timing end lifting eye bolt (26) ,
- the lifting eye on the timing end,
136953
120239
