11A-109
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F4R
11A
-the oil separator (see 11A, Top and front of engi-
ne, Oil decanter: Removal - Refitting, page 11A-
205) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a

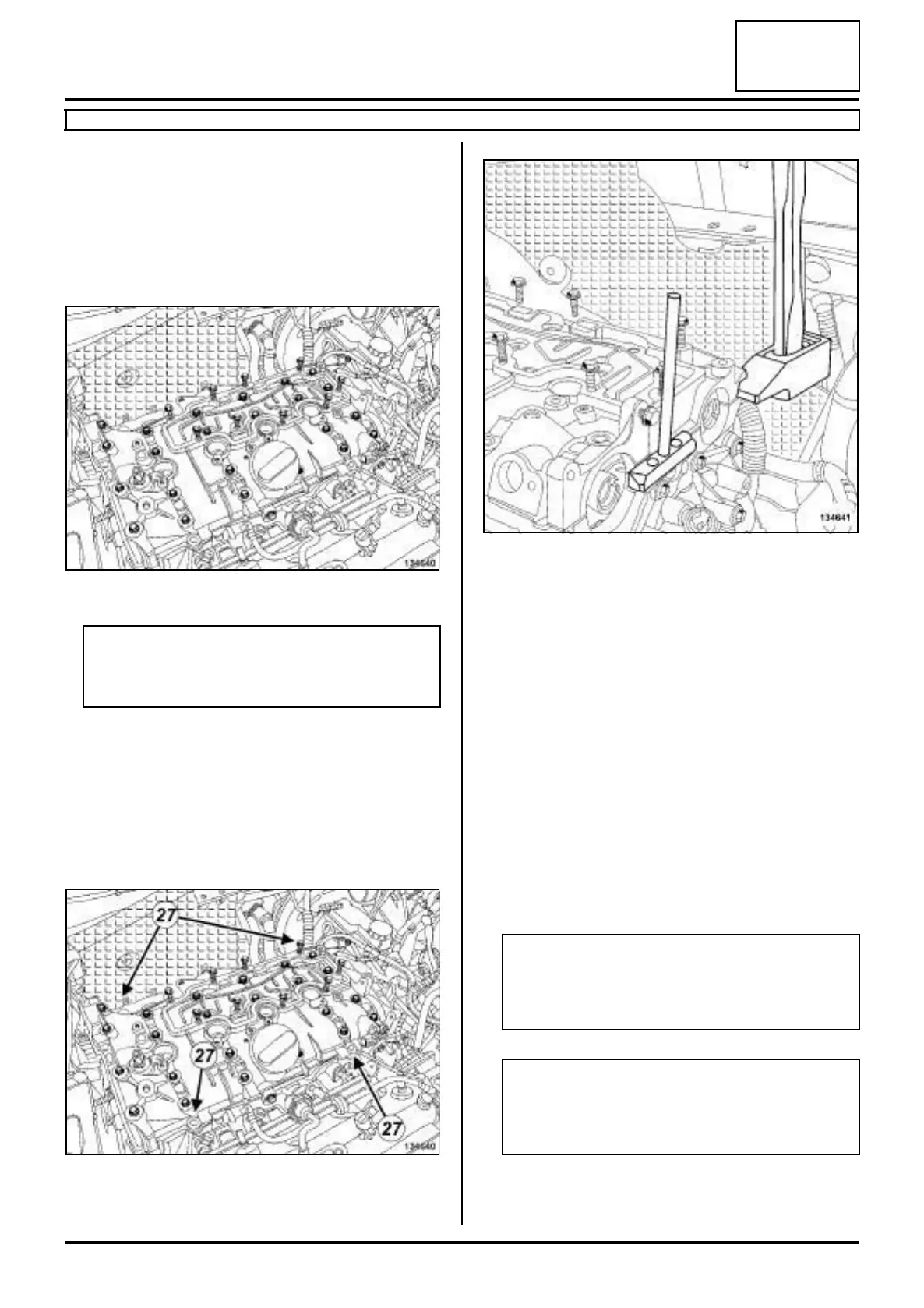

a Remove:
-the rocker cover bolts,
-the camshaft seals on the timing end (see 11A,
Top and front of engine, Camshaft seal at timi-
ng end: Removal - Refitting, page 11A-186) .
a Remove the centring devices (27) using a hammer
and a roll pin punch to knock them out from above.
a Detach the rocker cover using a hammer as a lever
and detach it using the tool (Mot. 1716).
a Remove the rocker cover.
REFITTING
I - REFITTING PREPARATION OPERATION
a Clean and degrease using SUPER CLEANING
AGENT FOR JOINT FACES (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products):
- the rocker cover joint face if it is to be re-used,
- the cylinder head joint face.
a parts always to be replaced: seal between cata-
lytic converter and exhaust downpipe hose (10,
08,02,21).
134640
Note:
The rocker cover bolts are not the same length;
mark their positions.
134640
134641
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
