11A-197
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
K9K
11A

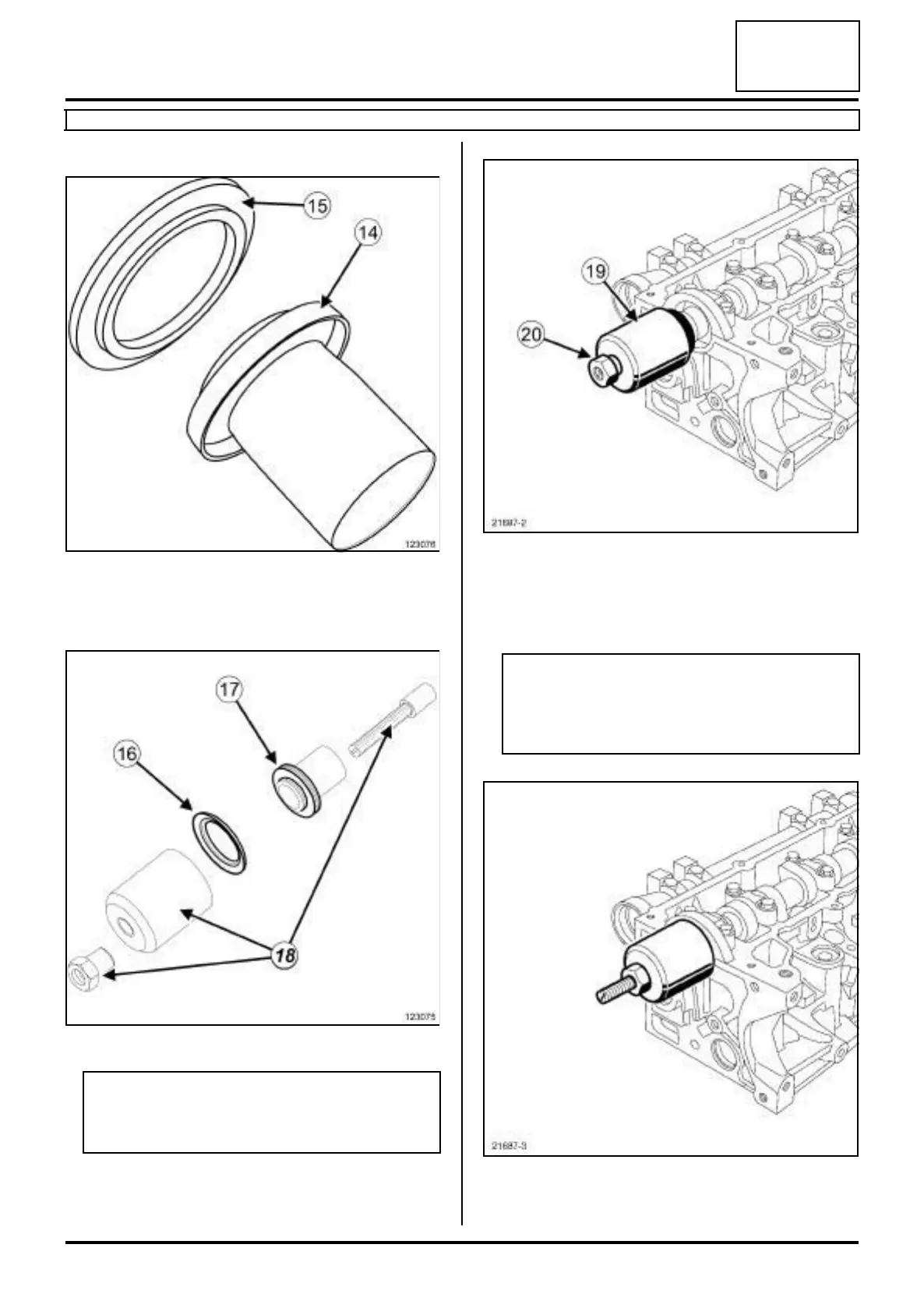

2 - Second fitting of the camshaft seal
a Depending on the case, the Parts Department deli-
vers seals (14) equipped with a spacer (15) amongst
other things.
a
a Fit the cover (19) equipped with the spacer on the
camshaft seal end and the collar nut (20) of the tool
(Mot. 1632).
a Screw on the collar nut until the spacer fitted on the
cover touches the cylinder head.
123076
123075
Note:
The spacer (16) is used to fit the seal (17) . It is
used with the tool (Mot. 1632) (18) .
21687-2
Note:
The spacer fits on the cover of the tool (Mot.
1632) so that the edge of the spacer is on the
side of the camshaft seal.
21687-3
