11A-205
TOP AND FRONT OF ENGINE

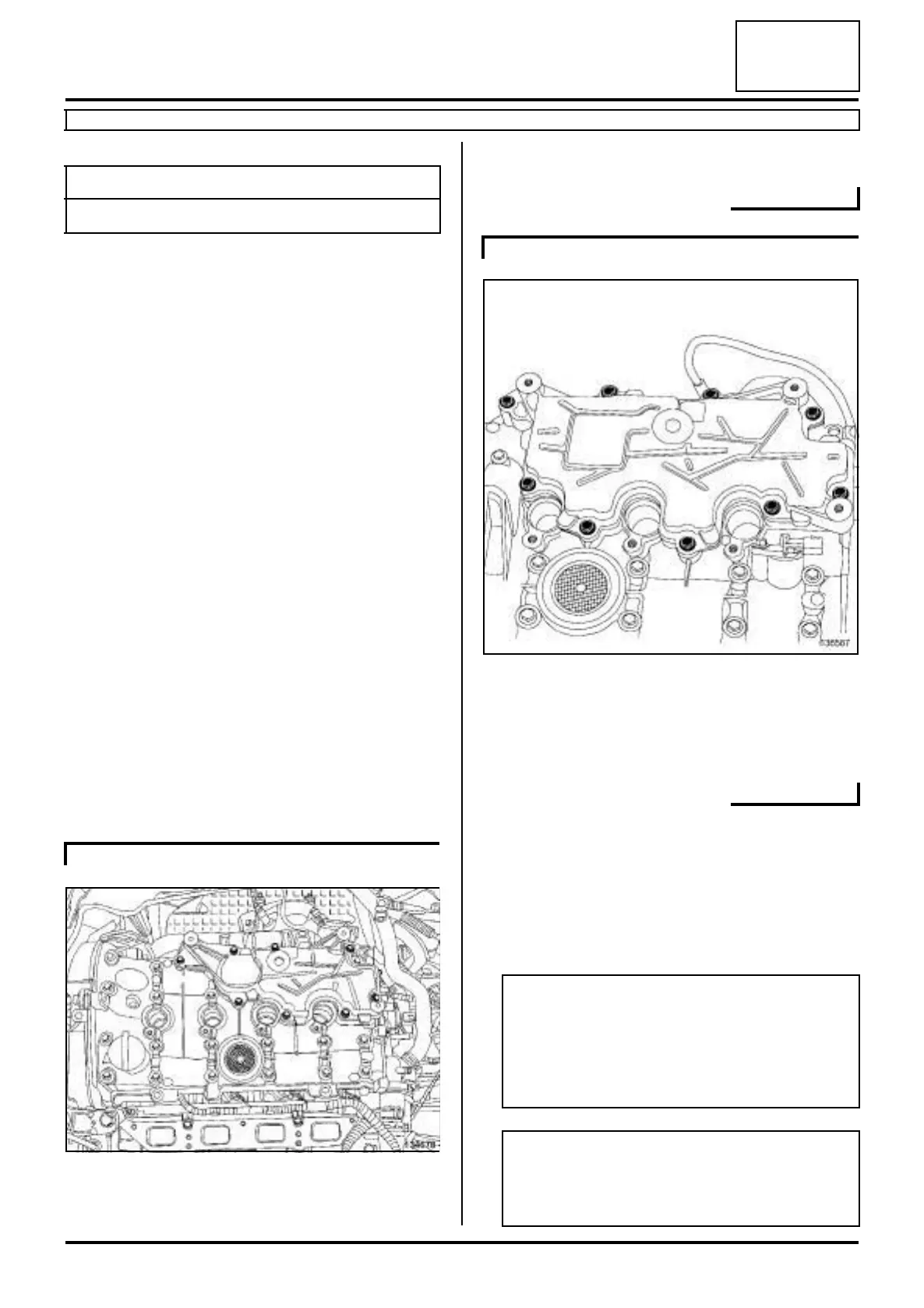

Oil decanter: Removal - Refitting
K4M
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the three ignition coils on the flywheel end (see
17A, Ignition, Coils Removal - Refitting, page
17A-1) ,
-the intake distributor (see 12A, Fuel mixture, Inlet
manifold: Removal - Refitting, page 12A-23) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the oil separator bolts,
- the oil separator.
a Remove:
- the oil separator bolts,
- the oil separator.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: oil separator bolt
(11,04,06,23).
Tightening torquesm
oil separator bolts 15 N.m
K4M, and 848
134678
K4M, and 858 or 866
136587
WARNING
When cleaning parts, it is essential that the parts
do not impact on each other, otherwise their
mating faces may be damaged and therefore
their adjustments may be altered, which could
damage the engine.
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
