12A-7
FUEL MIXTURE
Air flowmeter: Removal - Refitting
K9K
12A

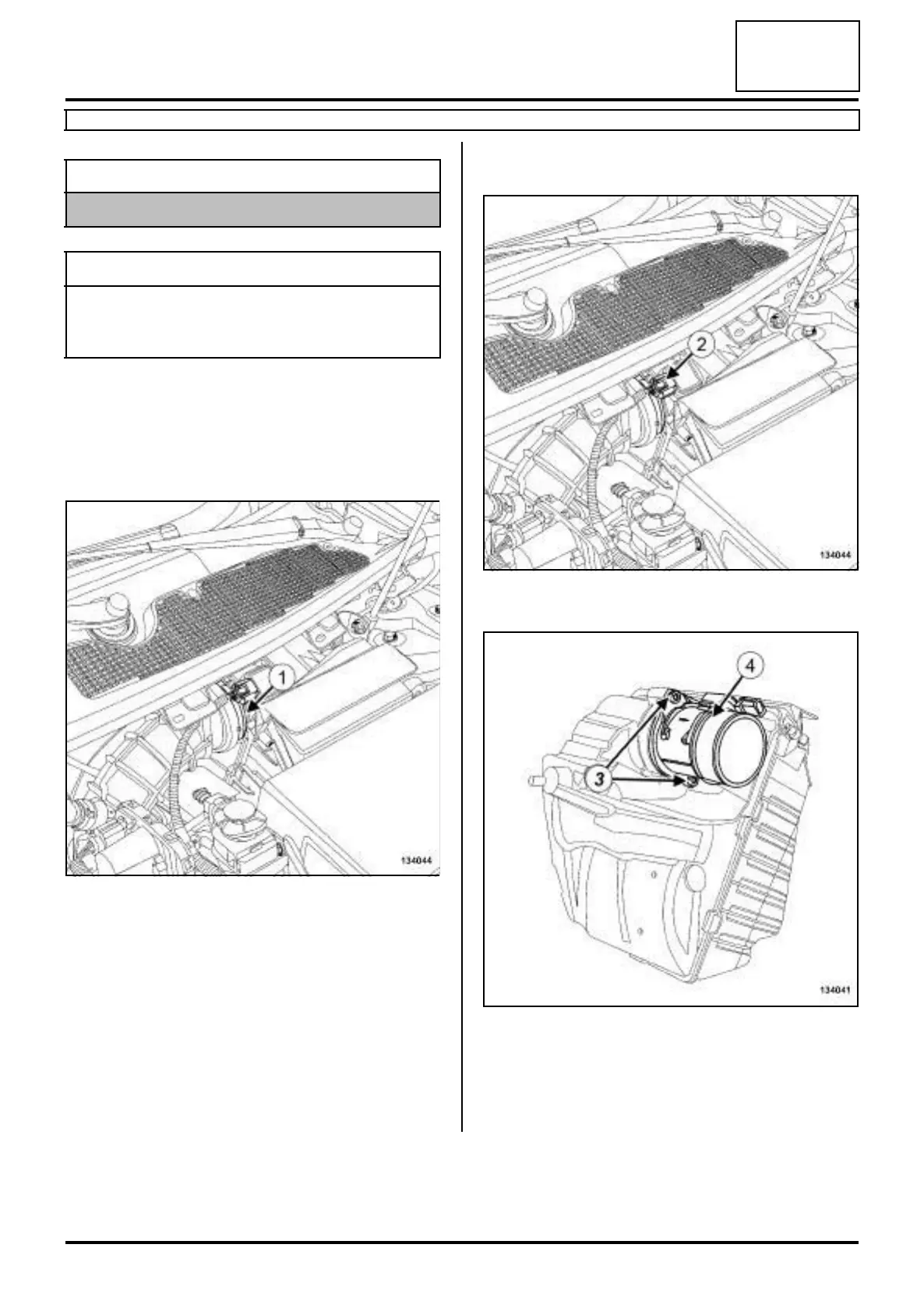

REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.
a Loosen the clip (1) of the air filter unit air outlet pipe
on the air flowmeter.
a Disconnect the air filter unit air outlet pipe from the
air flowmeter.
a Move the air filter unit air outlet pipe slightly away
from the air flowmeter.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the air flowmeter connector (2) .
a Remove:
- the bolts (3) from the air flowmeter,
- the air flowmeter (4) ,
- the air flowmeter seal.
Essential equipment
diagnostic tool
Tightening torquesm
air filter box air outlet
pipe clip on the air flow-
meter
5.5 N.m
134044
134044
134041
