12A-12
FUEL MIXTURE
Air inlet flap: Removal - Refitting
K9K, and 832 or 834
12A

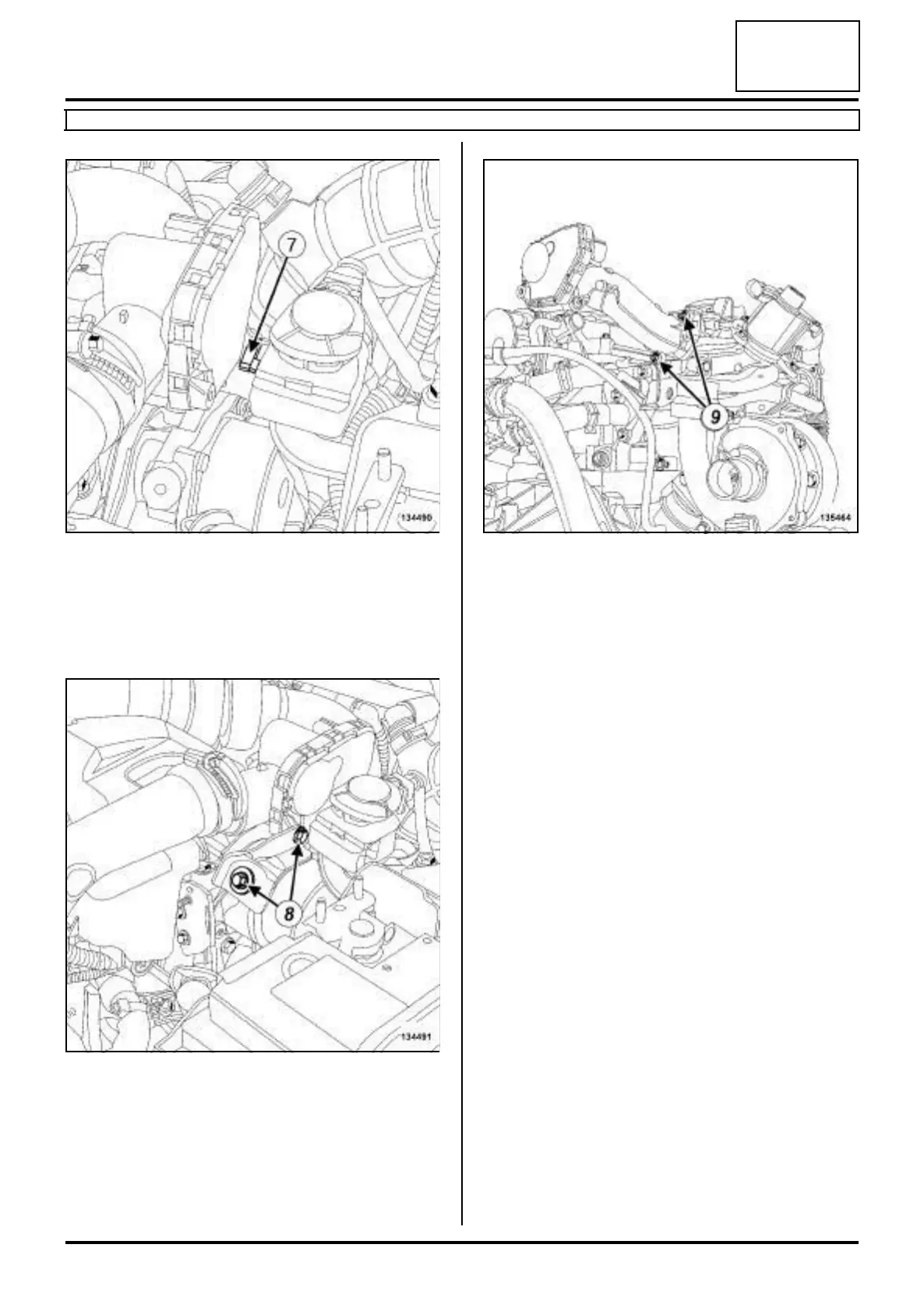

a Disconnect the brake servo pipe union (7) from the
vacuum pump.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the damper valve bracket bolts (8) ,
-the damper valve bracket.
a Remove:
- the damper valve bolts (9) ,
- the damper valve,
- the damper valve seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Damper valve seal
(11,01,10,04).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease the joint
faces:
- of the exhaust gas recirculation support on the
flywheel end,
- the damper valve if it is to be reused.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new damper valve seal,
- the damper valve,
- the damper valve bracket.
134490
134491
135464
