12A-42
FUEL MIXTURE
Exhaust manifold: Removal - Refitting
K9K, and 830 or 832
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the centre section of the scuttle panel grille (see
Scuttle panel grille: Removal - Refitting) ,
-the centre section of the scoop under the scuttle
panel grille (see Scoop under scuttle panel
grille: Removal - Refitting) .
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
a Remove the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-33) .
a Remove:
-the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
,
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) ,
- the turbocharger oil supply pipe (see 12B, Turbo-
charging, Turbocharger oil pipe: Removal - Re-
fitting, page 12B-22) ,
- the turbocharger oil return pipe (see 12B, Turbo-
charging, Turbocharger oil pipe: Removal - Re-
fitting, page 12B-22) ,
- the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) .
a Remove:

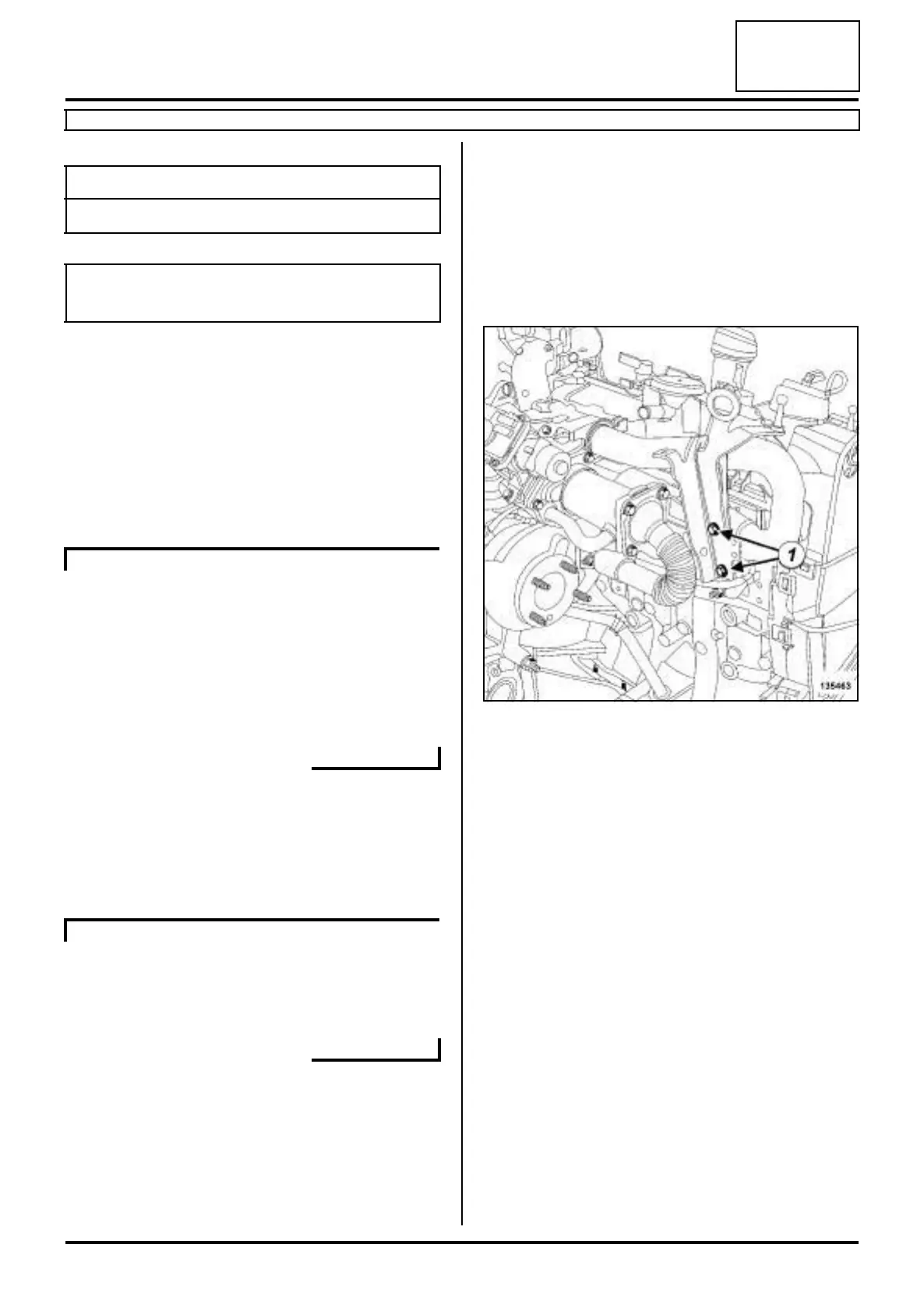

- the bolts (1) from the lifting eye at the timing end,
- the lifting eye on the timing end,
- the rigid exhaust gas recirculation pipe (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) .
Tightening torquesm
exhaust manifold nuts 26 N.m
IMPORTANT
Wear protective gloves during the operation.
J95
K9K, and 830
135463
