12B-32
TURBOCHARGING
Turbocharger oil pipe: Removal - Refitting
F4R
12B
-the exhaust connecting hose (see 19B, Exhaust,
Connecting hose: Removal - Refitting, page
19B-60) ,
-the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
.

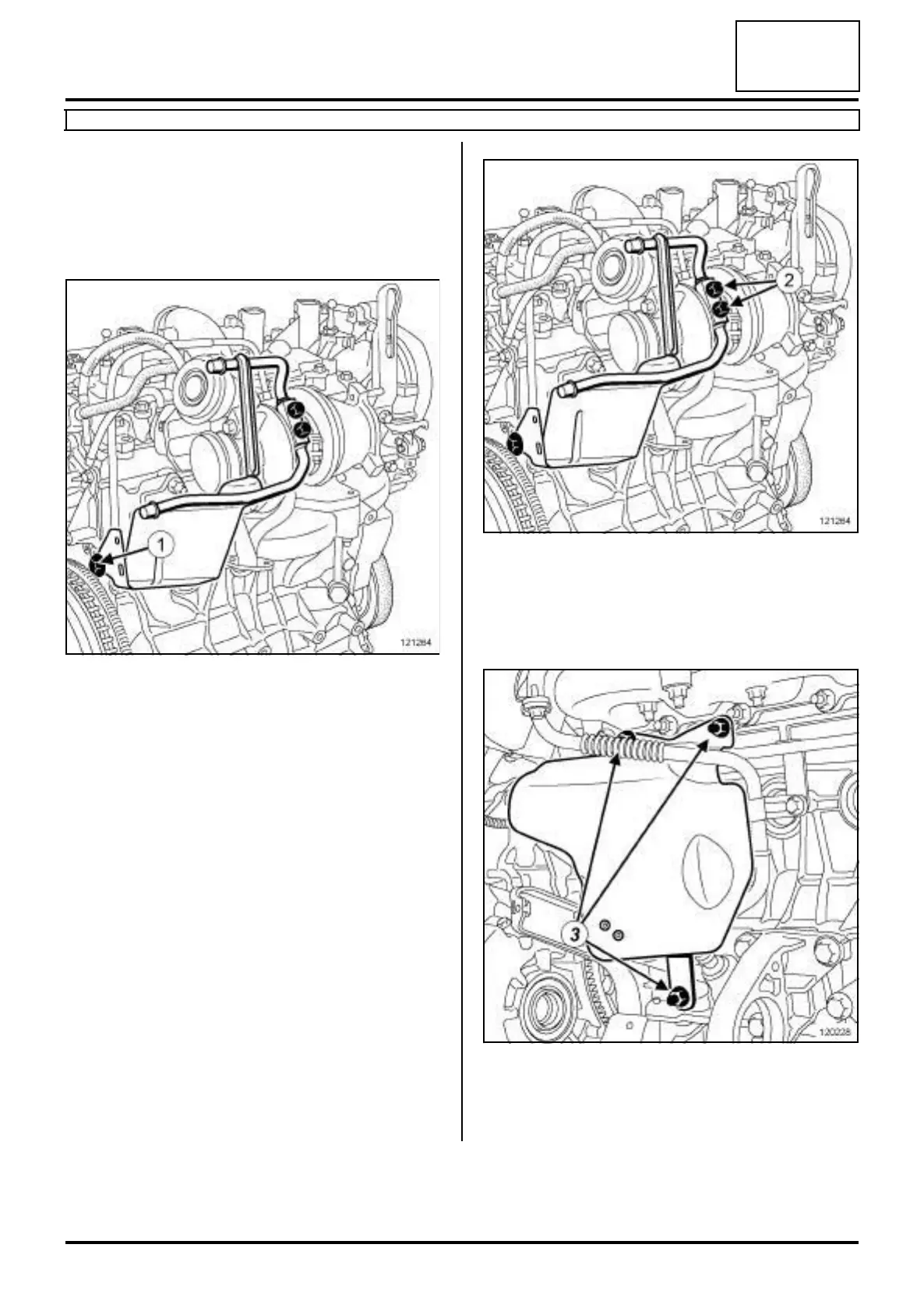

a Remove the bolt (1) from the turbocharger cooling
pipe heat shield on the coolant pipe housing outlet.
a Fit the tools (Ms. 583) onto the turbocharger cooling
hoses.
a Remove the turbocharger cooling hose clips using
the tool (Mot. 1448).
a Disconnect the turbocharger cooling hoses.
a Remove:
- the hollow bolts (2) from the cooling pipe on the tur-
bocharger,
- the turbocharger cooling pipe.
a Remove:
- the nuts (3) from the starter heat shield,
- the starter heat shield.
121264
121264
120228
