13B-75
DIESEL INJECTION
High-pressure pipe between the pump and rail: Removal - Refitting
K9K, and 830
13B

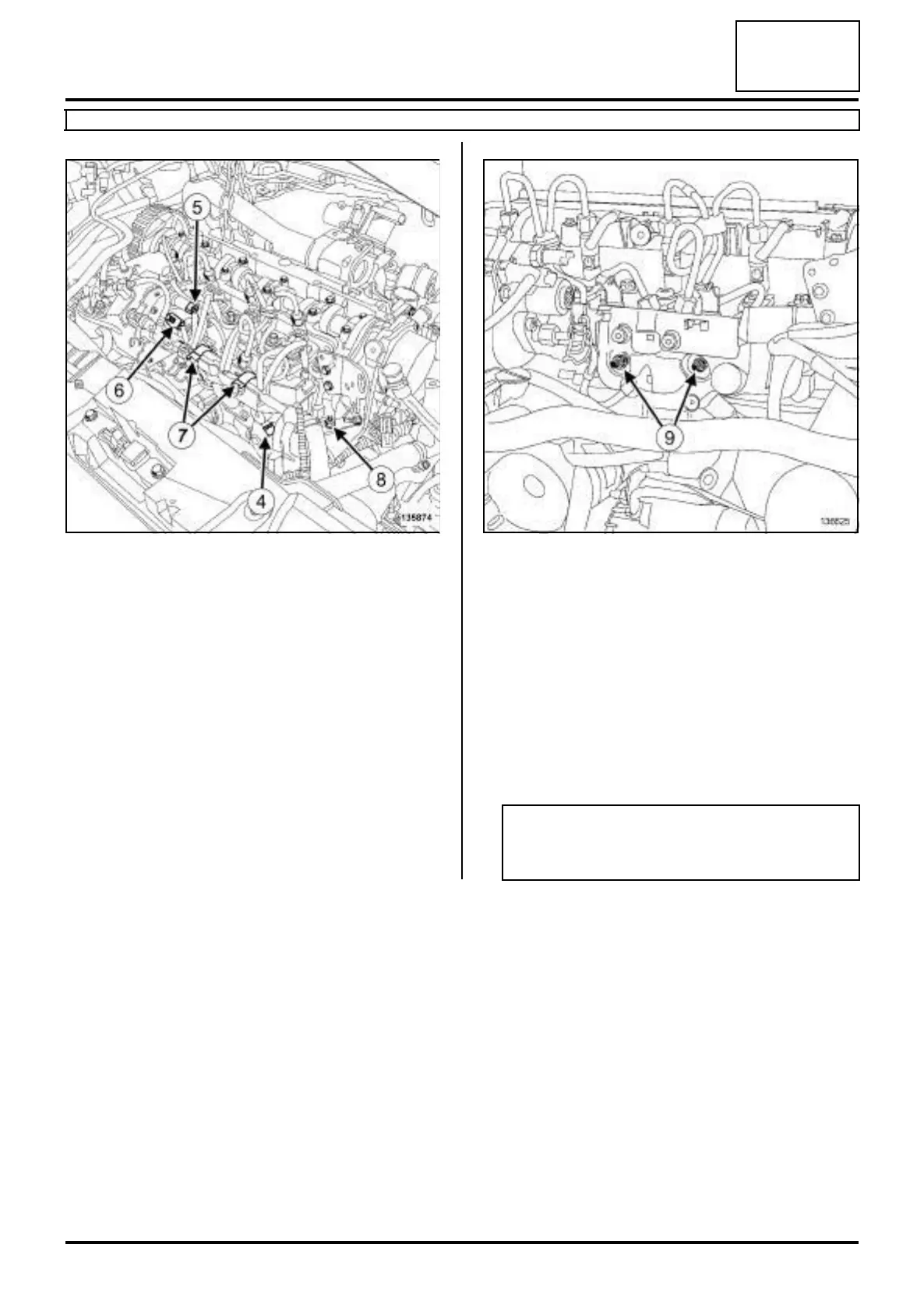

a Disconnect:
-the connector (4) from the injector rail pressure
sensor,
-the fuel temperature sensor connector (5) ,
-the connector (6) for the fuel flow regulation sole-
noid valve,
-all heater plug connectors,
-the connector for each diesel injector.
a Unclip the injection wiring clips (7) .
a Remove the nut (8) from the injection wiring bracket.
a Move aside the injection wiring.
a Remove:
- the nuts (9) from the injector rail protector,
- the injector rail protector.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Clean the unions of the high pressure pipes between
the high pressure pump and the injector rail (see
13B, Diesel injection, Diesel injection: Precau-
tions for repair, page 13B-1)
135874 136625
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
