13B-93
DIESEL INJECTION
High-pressure pipe between the rail and injector: Removal - Refitting
K9K, and 832
13B

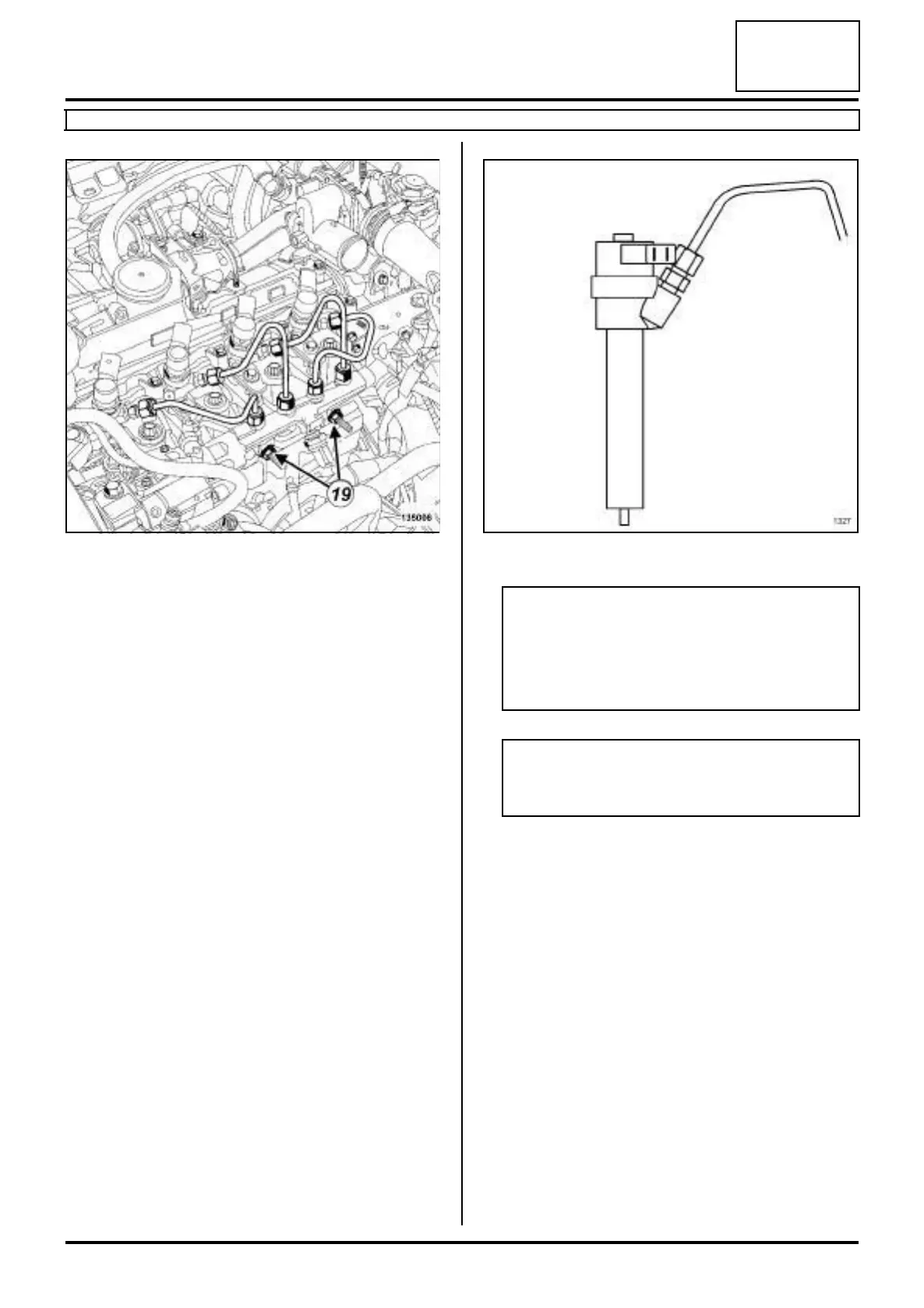

a Loosen the injector rail nuts (19) .
a
a Loosen the nuts for the high pressure pipe between
the injector rail and the diesel fuel injectors, using
the tool (Mot. 1566).
a Remove:
-the nut for the high pressure pipe between the in-
jector rail and the diesel fuel injectors on the injec-
tor rail side,
-the nut for the high pressure pipe between the in-
jector rail and the diesel fuel injectors on the injec-
tor side,
- the high pressure pipe between the injector rail and
the diesel fuel injectors.
a Fit suitable blanking plugs on:
- the injector rail openings,
- the opening of each diesel injector.
135006 1327
WARNING
Always hold the intermediate injector union in
place with a wrench when loosening the high
pressure pipes.
Do not damage the injector return nozzle.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
