DIESEL INJECTION
High-pressure pipe between the rail and injector: Removal - Refitting
K9K, and 832
13B
REFITTING
I - REFITTING PREPARATION OPERATION
a
a parts always to be replaced: High-pressure pipe
between the rail and injector (11,05,03,01).
II - REFITTING OPERATION FOR PART
CONCERNED
1 - Refitting one, two or three high pressure pipes
a Remove the blanking plug
- the injector rail opening(s),
- the opening of the diesel injector(s).
a Screw on the nuts for the high pressure pipe(s)
between the injector rail and the diesel injector(s) by
hand without tightening, starting on the injector rail
side.
a Using the tool (Mot. 1566) or the tool (Mot. 1746),
torque tighten the nuts for the high pressure pi-
pe(s) between the injector rail and the diesel in-
jector(s) (28 N.m).
2 - Refitting the four high pressure pipes
a Remove the blanking plug
- the injector rail openings,
- the opening of each diesel injector.
a Screw on the nuts for the high pressure pipe(s)
between the injector rail and the diesel injector(s) by
hand without tightening, starting on the injector rail
side.
a Tighten to torque:
- the injector rail nuts (28 N.m),
-using the tool (Mot. 1566) or the tool (Mot. 1746)
the nuts for the high pressure pipes between
the injector rail and the diesel injectors (28
N.m).
a Refit the injector rail protector.
a Clip:
- the expansion bottle lower cooling hose onto the in-
jection pump protector,
- the alternator wiring onto the injector rail protector.
a Fit the fuel drain pipe.
a Connect the fuel drain pipe to the injector rail protec-
tor.
a Fit the injection wiring.
a Refit the injection wiring bracket nut.
a Clip on the injection wiring clip.
a Refit:
- injector rail pressure sensor connector,
- the fuel temperature sensor connector,

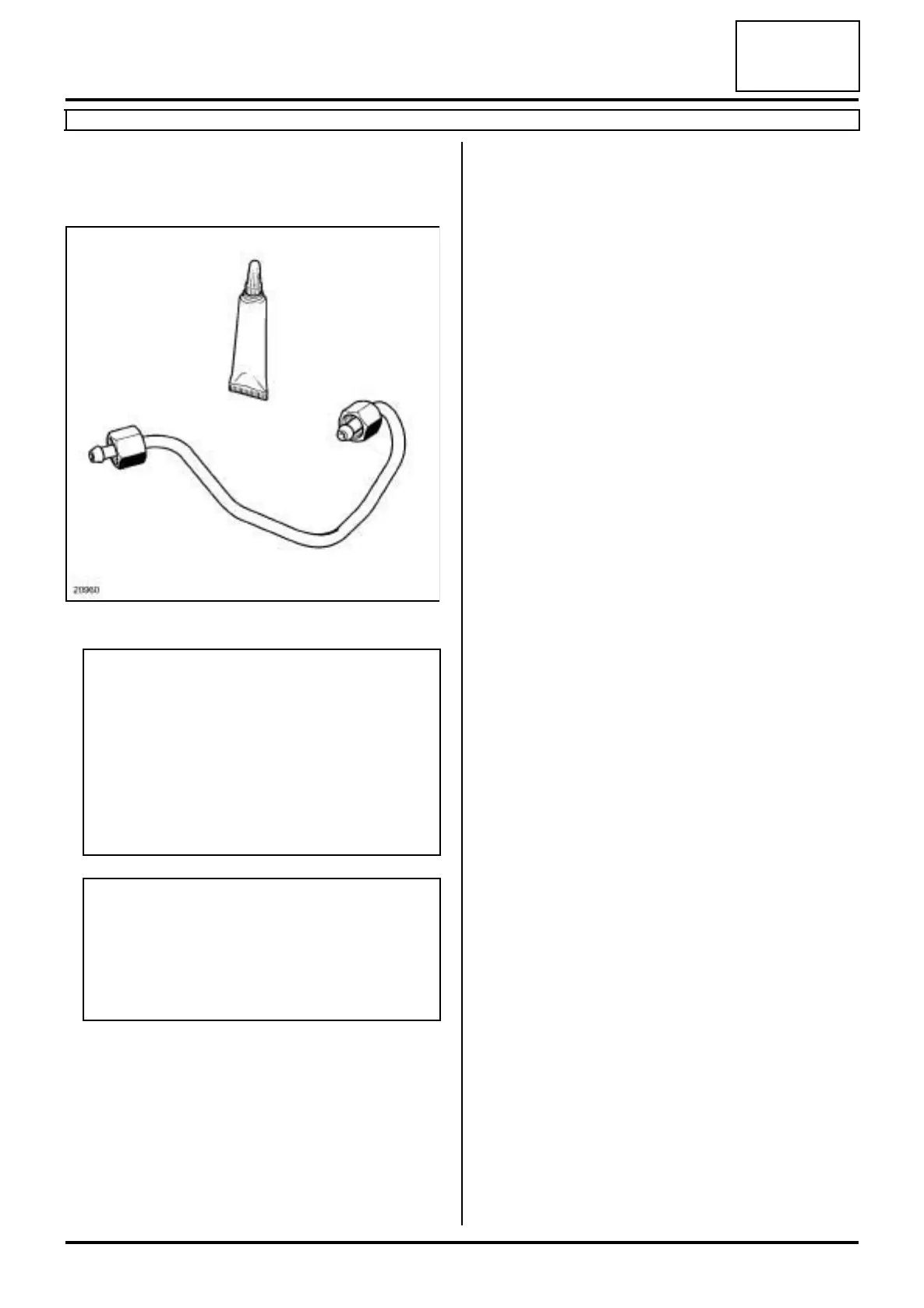

20960
WARNING
Before fitting a new high pressure pipe, lightly
lubricate the nut threads with the oil from the
applicator provided in the new parts kit.
Be careful not to allow oil into the high pressure
pipe.
Do not lubricate high pressure pipes supplied
without an applicator, as these high pressure
pipes are self-lubricating.
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
