13B-124
DIESEL INJECTION
Fuel temperature sensor: Removal - Refitting
K9K, and 830
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the turbocharger outlet air pipe (see 12B,
Turbocharging, Intercooler air inlet pipe: Remo-
val - Refitting, page 12B-41) .

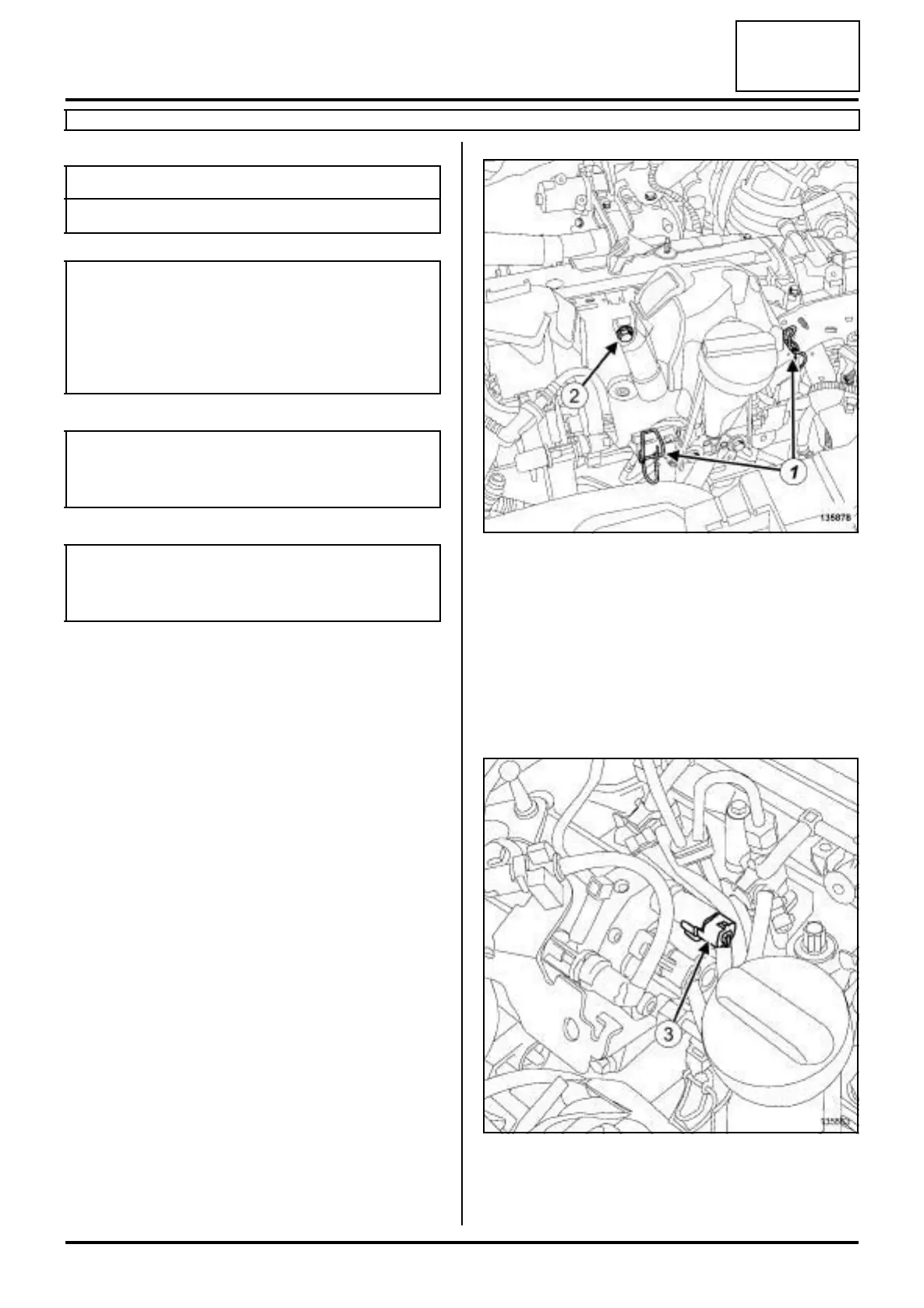

a Unclip the injector rail protector cover at (1) .
a Remove:
- the injector rail protector cover bolt (2) ,
- the injection rail protector cover,
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the fuel temperature sensor connector
(3) .
a Remove the fuel temperature sensor.
Tightening torquesm
fuel temperature sensor 15 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
135878
135863
