14A-21
ANTIPOLLUTION
Exhaust gas recirculation assembly: Removal - Refitting
K9K
14A

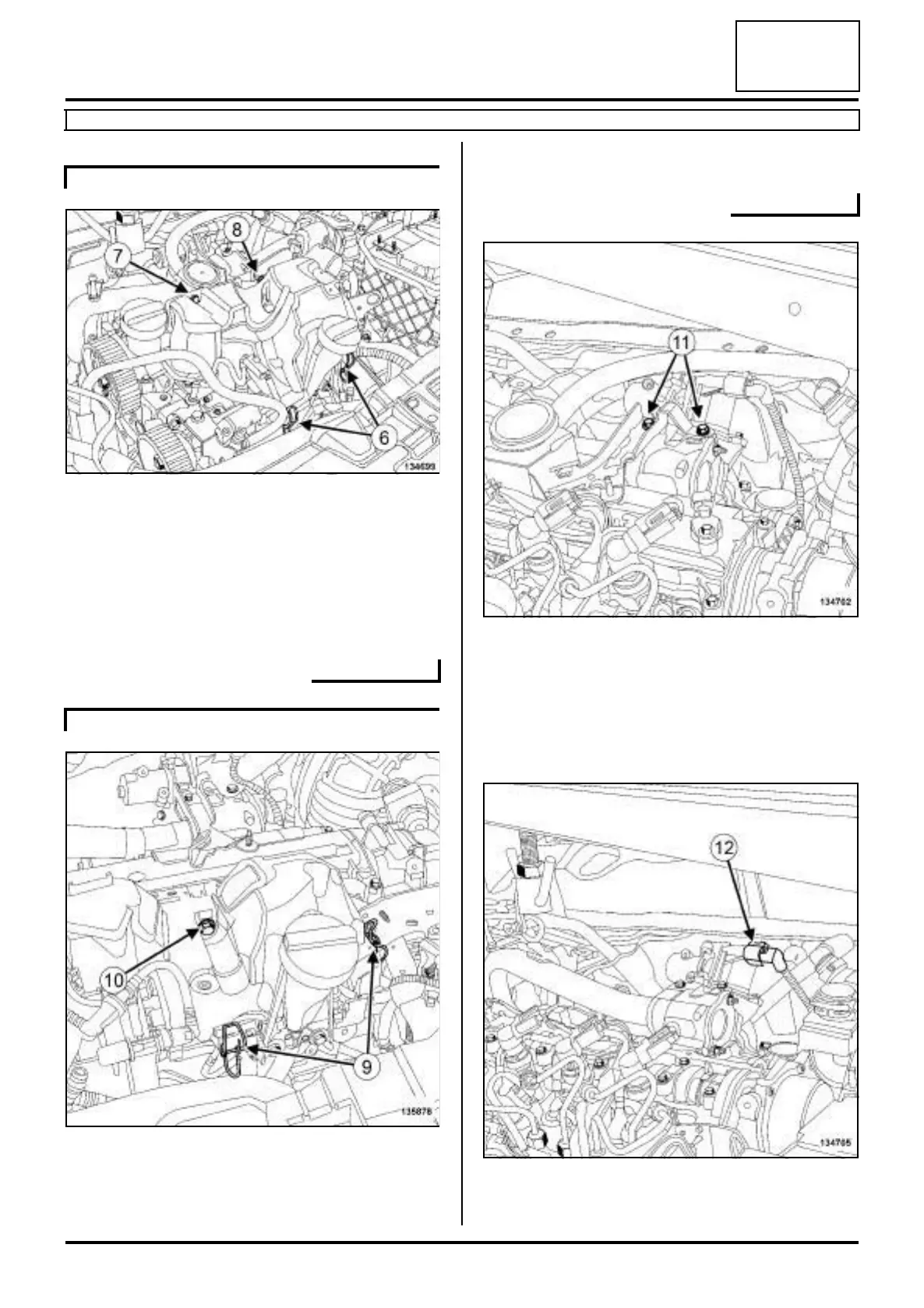

a Unclip the injector rail protector cover at (6) .
a Remove:
-the injector rail protector cover bolt (7) ,
-the injector rail protector cover nut (8) ,
-the injector rail protector cover.
a Unclip the injector rail protector cover at (9) .
a Remove:
-the injector rail protector cover bolt (10) ,
- the injector rail protector cover.
a Remove:
- the injector rail protector cover mounting bolts (11)
,
- the injector rail protector cover mounting.
a Disconnect the connector (12) from the exhaust gas
recirculation solenoid valve.
K9K, and 832
134699
K9K, and 830
135878
134702
134705
